Equivalent & Substitute Parts for Würth Elektronik 690367290876

Part Overview

The Würth Elektronik 690367290876 is an 8-position receptacle connector with 0.100" (2.54mm) pitch designed for surface mount applications. This connector operates across -40°C to 105°C and supports 1.5A per contact at 100VAC. The component is actively manufactured and maintains full RoHS3 compliance with UL94 V-0 flammability rating. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design flexibility is required within equivalent electrical and mechanical specifications.

Substiute Parts

690367290876

Würth ElektronikIn Stock: 1863690367290876 Datasheet

Current PartRFQ

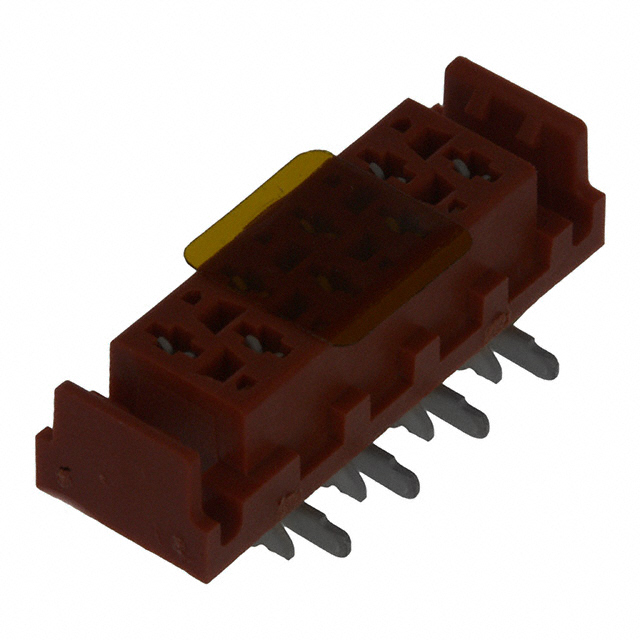

7-338069-8

TE Connectivity AMP ConnectorsIn Stock: 24867-338069-8 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for rectangular connectors in this category is determined by strict alignment of core electrical and mechanical parameters. The following criteria establish functional equivalence:

Primary Substitution Criteria:

• Connector type (Receptacle)
• Number of positions (8)
• Pitch specification (0.100" / 2.54mm)
• Number of rows (2)
• Mounting technology (Surface Mount)
• Contact type (Forked)
• Termination method (Solder)
• Operating temperature range (-40°C ~ 105°C minimum)
• Contact finish (Tin)
• Compliance certifications (RoHS3, UL94 V-0)

The substitute part TE Connectivity AMP Connectors 7-338069-8 meets all primary substitution criteria. Variations in row spacing, fastening mechanism, and insulation material composition do not preclude substitution when the core electrical and mechanical interface parameters remain equivalent.

Parameter Comparison

Engineering Selection Recommendations

Both the Würth Elektronik 690367290876 and TE Connectivity 7-338069-8 are active products with full RoHS3 compliance and UL94 V-0 flammability certification. Selection between these parts is based on availability, supply chain requirements, and design-specific considerations regarding row spacing and fastening mechanism.

The Würth Elektronik part features 0.059" (1.50mm) row spacing with latch lock fastening, while the TE Connectivity substitute provides 0.100" (2.54mm) row spacing with friction lock fastening. Both configurations support the same 8-position, 0.100" pitch interface and operate within identical temperature and voltage parameters.

Insulation material composition differs between the two parts. The Würth part uses PA6T nylon, while the TE part uses glass-filled PA46 nylon. Both materials meet the specified UL94 V-0 flammability requirement and operate across the full -40°C to 105°C temperature range.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 7-338069-8 directly replace the Würth Elektronik 690367290876 in existing designs?

A: Direct replacement requires verification of row spacing and fastening mechanism compatibility with the mating connector and PCB layout. The row spacing difference (0.059" versus 0.100") and fastening type variation (latch lock versus friction lock) must be evaluated against the specific application requirements.

Q: What is the significance of the row spacing difference between these parts?

A: Row spacing determines the physical distance between the two rows of contacts. The Würth part specifies 0.059" (1.50mm) row spacing, while the TE part specifies 0.100" (2.54mm). This difference affects PCB footprint design and mating connector compatibility. Designs must accommodate the specific row spacing of the selected part.

Q: Are the fastening mechanisms interchangeable?

A: The Würth part uses latch lock fastening, while the TE part uses friction lock fastening. These mechanisms provide different mating force characteristics and retention methods. Selection depends on the mating connector type and application requirements for connection security.

Q: Do the different insulation materials affect electrical performance?

A: Both insulation materials meet UL94 V-0 flammability requirements and operate across the full -40°C to 105°C temperature range. The glass-filled PA46 composition in the TE part provides enhanced mechanical properties compared to the PA6T composition in the Würth part. Material selection should be verified against specific environmental and mechanical stress requirements.

Q: What packaging formats are available for these parts?

A: The Würth Elektronik 690367290876 is supplied in Tape & Reel (TR) packaging. The TE Connectivity 7-338069-8 is supplied in Cut Tape (CT) packaging. Packaging format selection depends on assembly process requirements and volume specifications.

Q: Are both parts RoHS3 compliant?

A: Yes, both the Würth Elektronik 690367290876 and TE Connectivity 7-338069-8 are ROHS3 compliant with EAR99 ECCN classification and 8536.69.4040 HTSUS code.
