USB-A USB 2.0 Receptacle Connector 690-004-220-013 Equivalent & Substitute Parts

Part Overview

The Mercury United Electronics 690-004-220-013 is a USB-A (USB TYPE-A) USB 2.0 receptacle connector with 4 positions, designed for through-hole, right-angle mounting applications. This connector features board lock capability, gold-plated contacts, and brass shell construction. The part is currently obsolete, making identification of equivalent and substitute components essential for ongoing production support, maintenance, and design continuity.

Substiute Parts

690-004-220-013

Mercury United Electronics, Inc.In Stock: 1173690-004-220-013 Datasheet

Current PartRFQ

690-004-221-013

Mercury United Electronics, Inc.In Stock: 1856690-004-221-013 Datasheet

DirectRFQ

690-004-621-013

Mercury United Electronics, Inc.In Stock: 8594690-004-621-013 Datasheet

Parametric EquivalentRFQ

921

CEC IndustriesIn Stock: 733921 Datasheet

Parametric EquivalentRFQ

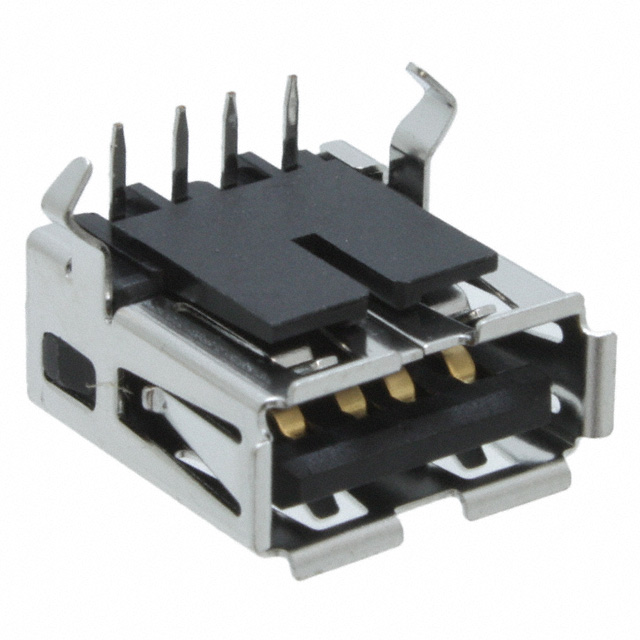

XM7A-0442

Omron Electronics Inc-EMC DivIn Stock: 16653XM7A-0442 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 690-004-220-013 is determined by strict alignment with the following critical parameters:

Core Substitution Criteria:

• Connector Type: USB-A (USB TYPE-A)
• Number of Contacts: 4
• Gender: Receptacle
• USB Specification: USB 2.0
• Mounting Type: Through Hole, Right Angle
• Mounting Feature: Horizontal
• Termination: Solder
• Features: Board Lock
• Mating Cycles: 1500
• Contact Finish: Gold
• Shielding: Unshielded
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

Direct Substitutes (Mercury United Electronics):

• 690-004-221-013: Meets all core criteria. Shell/shielding material differs (Copper Alloy vs. Brass). Product status is Active.
• 690-004-621-013: Meets all core criteria. Shell/shielding material differs (Copper Alloy vs. Brass). Product status is Active.

Parametric Equivalent (Cross-Manufacturer):

• XM7A-0442 (Omron Electronics Inc-EMC Div): Meets all core criteria. Operating temperature range is narrower (-40°C ~ 60°C vs. -55°C ~ 85°C). Includes rated current (1A) and voltage (30VAC) specifications. Product status is Active.

Non-Equivalent Part:

• 921 (CEC Industries): This is a T-5 wedge lamp (12.8V, 1.4A) and does not meet substitution criteria. Category, connector type, and functional purpose are entirely different. This part is not a valid substitute.

Parameter Comparison

Engineering Selection Recommendations

Mercury United Electronics Direct Substitutes (690-004-221-013, 690-004-621-013):

Both parts are manufactured by Mercury United Electronics and maintain active product status. They satisfy all core electrical and mechanical parameters required for substitution. The shell/shielding material differs from the original (Copper Alloy vs. Brass), but both materials provide equivalent electromagnetic shielding performance and comply with UL94 V-0 flammability requirements. Both parts are ROHS3 compliant and carry identical REACH and ECCN classifications. Selection between these two Mercury parts should be based on availability and packaging requirements.

Cross-Manufacturer Equivalent (XM7A-0442 by Omron Electronics Inc-EMC Div):

The XM7A-0442 meets all core substitution criteria and is actively manufactured. This part carries explicit electrical ratings (1A current, 30VAC voltage) not specified in the original part. The operating temperature range is narrower (-40°C ~ 60°C vs. -55°C ~ 85°C), which may limit suitability for applications requiring extended low-temperature operation below -40°C or high-temperature operation above 60°C. The part is ROHS3 compliant with identical REACH and ECCN classifications. This option provides the highest current inventory availability.

Part 921 (CEC Industries):

This part is not a valid substitute. It is a T-5 wedge lamp with entirely different functional purpose, electrical characteristics, and application domain. No substitution relationship exists.

Frequently Asked Questions (FAQ)

Q: Can 690-004-221-013 or 690-004-621-013 be used as direct replacements for the obsolete 690-004-220-013?

A: Yes. Both parts are direct substitutes manufactured by Mercury United Electronics. They maintain identical connector type, contact count, USB 2.0 specification, mounting configuration, board lock feature, mating cycle rating, contact finish, and compliance certifications. The shell material differs (Copper Alloy vs. Brass), but both materials meet UL94 V-0 flammability requirements and provide equivalent performance.

Q: What is the difference between the Mercury United Electronics substitutes and the Omron XM7A-0442?

A: The Mercury parts are manufactured by the original equipment supplier and maintain the full operating temperature range (-55°C ~ 85°C). The Omron part is a cross-manufacturer equivalent with a narrower operating temperature range (-40°C ~ 60°C) and includes explicit electrical ratings (1A, 30VAC). All three parts meet the core substitution criteria for connector type, contact configuration, USB 2.0 specification, and mounting requirements.

Q: Is the XM7A-0442 suitable for applications requiring operation below -40°C or above 60°C?

A: No. The XM7A-0442 operating temperature range is -40°C ~ 60°C. Applications requiring operation outside this range should use 690-004-221-013 or 690-004-621-013, which are rated for -55°C ~ 85°C.

Q: Why is part 921 listed in the substitute list if it is not a valid substitute?

A: Part 921 is a T-5 wedge lamp and does not meet substitution criteria. It is included in this reference for clarity and to prevent selection errors. This part should not be used as a substitute for the 690-004-220-013 USB connector.

Q: What packaging options are available for the substitute parts?

A: Both Mercury United Electronics substitutes (690-004-221-013 and 690-004-621-013) are available in Bulk packaging. The Omron XM7A-0442 is also available in Bulk packaging. Packaging specifications should be confirmed with the supplier for specific order requirements.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. The 690-004-221-013, 690-004-621-013, and XM7A-0442 are all ROHS3 compliant. All parts carry identical REACH Unaffected status and EAR99 ECCN classification.
