Amphenol ICC 68786-202 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 68786-202 is a 2-position (1 x 2) low-profile shunt connector with 0.100" (2.54mm) pitch spacing, designed for jumper applications in electronic assemblies. This component features an open-top design with female sockets and gold-plated contacts rated for 3A current. The part is classified as obsolete, making identification of active equivalent alternatives essential for ongoing production and maintenance applications.

Key Parameters

Parameter	Value
Number of Positions	2 (1 x 2)
Pitch	0.100" (2.54mm)
Height	0.200" (5.08mm)
Type	Open Top Shunt Connector
Gender	Female Sockets
Contact Finish	Gold or Gold, GXT™
Current Rating	3A
Housing Material	Polyester
Flammability Rating	UL94 V-0
Color	White
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the 68786-202 is determined by strict equivalence across the following critical parameters: 2-position configuration, 0.100" (2.54mm) pitch, open-top female socket design, and UL94 V-0 flammability rating. The substitute parts listed maintain these core electrical and mechanical characteristics, enabling direct functional replacement in jumper applications.

The primary substitute, 68786-202LF, is the manufacturer-recommended active equivalent from Amphenol ICC, differing only in RoHS compliance status (RoHS Compliant versus RoHS non-compliant). The secondary substitutes, 382811-8 and 390088-1, are sourced from TE Connectivity AMP Connectors and maintain pitch, position count, and socket configuration while introducing minor variations in height and housing material composition.

Parameter Comparison

Parameter	68786-202	68786-202LF	382811-8	390088-1
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	TE Connectivity AMP	TE Connectivity AMP
Number of Positions	2 (1 x 2)	2 (1 x 2)	2 (1 x 2)	2 (1 x 2)
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Height	0.200" (5.08mm)	0.200" (5.08mm)	0.250" (6.35mm)	0.247" (6.27mm)
Type	Open Top	Open Top	Open Top	Open Top
Gender	Female Sockets	Female Sockets	Female Sockets	Female Sockets
Contact Finish	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold	Gold
Contact Finish Thickness	30.0µin (0.76µm)	30.0µin (0.76µm)	5.11µin (0.130µm)	30.0µin (0.76µm)
Color	White	White	Black	Black
Housing Material	Polyester	Polyester	Polyester, Glass Filled	Polyester, Glass Filled
Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Current Rating	3A	3A	Not specified	Not specified
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active	Active
RoHS Status	RoHS non-compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant

Engineering Selection Recommendations

For applications requiring direct replacement of the 68786-202, the 68786-202LF is the primary selection. This part maintains identical electrical and mechanical specifications while offering active product status and RoHS compliance, eliminating obsolescence risk and regulatory constraints.

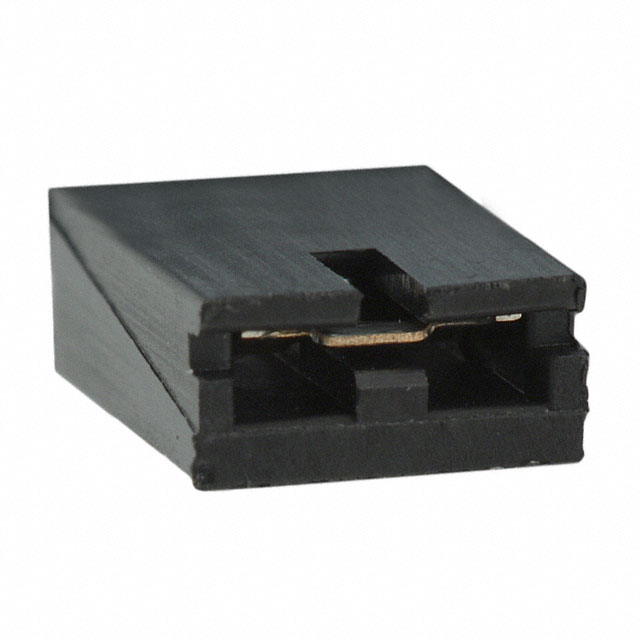

The 382811-8 and 390088-1 serve as secondary alternatives when the primary substitute is unavailable. Both parts maintain the critical 2-position, 0.100" pitch, and open-top socket configuration. Selection between these alternatives depends on height tolerance requirements: the 382811-8 measures 0.250" (6.35mm) in height, while the 390088-1 measures 0.247" (6.27mm). Both exceed the original 0.200" (5.08mm) height specification and incorporate glass-filled polyester housing material. The 390088-1 provides contact finish thickness matching the original specification at 30.0µin (0.76µm), whereas the 382811-8 specifies 5.11µin (0.130µm).

All substitute parts carry UL94 V-0 flammability certification and MSL 1 moisture sensitivity rating, ensuring compliance with standard electronic assembly requirements.
