Equivalent & Substitute Parts Reference for Amphenol ICC (FCI) 68710-169 Rectangular Connector

Part Overview

The Amphenol ICC (FCI) 68710-169 is a rectangular connector header featuring 40 positions, a 0.100" (2.54mm) pitch, and shrouded 4-wall design for board to cable/wire applications. This product is classified as obsolete, emphasizing the need to identify alternative models to maintain system compatibility and serviceability. Suitable substitutes must satisfy equivalent mechanical and electrical design constraints, ensuring reliable drop-in interchangeability for the original application.

Key Parameters

Parameter	Value
Manufacturer Part Number	68710-169
Manufacturer	Amphenol ICC (FCI)
Category	Rectangular Connectors
Description	CONN HEADER VERT 40POS 2.54MM
Series	Quickie™
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.160" (4.06mm)
Overall Contact Length	0.625" (15.88mm)
Insulation Height	0.640" (16.26mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Material	Phosphor Bronze Alloy
Insulation Material	Polyester, Glass Filled
Features	Keying Slot, Mounting Flange
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected

Substitute Part Grouping Explanation

Substitution is based strictly on the following key parameters shared within the category of rectangular connectors: number of positions, contact type, pitch and row spacing, shrouding, mounting type, termination, fastening type, insulation height, contact shape, contact material, and compliance status. All listed substitutes match these required electrical and mechanical characteristics, ensuring compatibility within the same design envelope. Variations in manufacturer, series, or product status are documented for precise selection.

Parameter Comparison

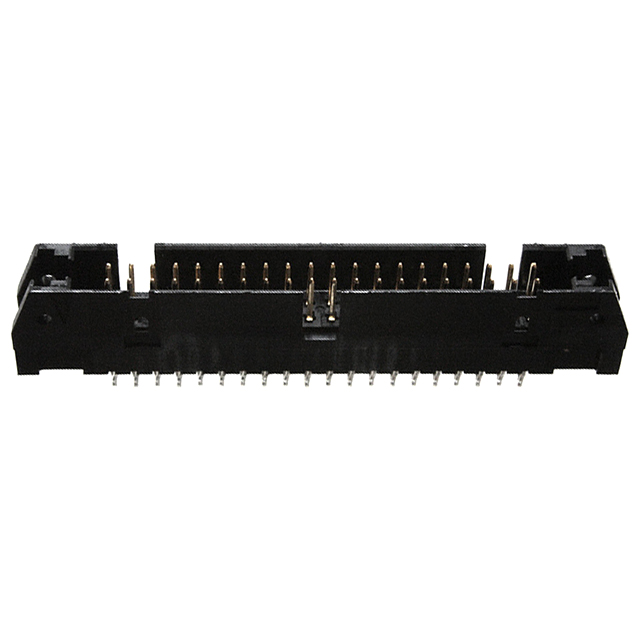

Parameter	68710-169 (Amphenol ICC)	10080054-169LF (Amphenol ICC)	1658694-3 (TE Connectivity AMP)
Product Status	Obsolete	Active	Active
Category	Rectangular Connectors	Rectangular Connectors	Rectangular Connectors
Connector Type	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	40	40	40
Number of Rows	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions Loaded	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole	Through Hole
Termination	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Push-Pull
Contact Length - Mating	0.230" (5.84mm)	0.234" (5.94mm)	0.240" (6.10mm)
Contact Length - Post	0.160" (4.06mm)	0.160" (4.06mm)	0.174" (4.42mm)
Overall Contact Length	0.625" (15.88mm)	0.629" (15.97mm)	0.703" (17.86mm)
Insulation Height	0.640" (16.26mm)	0.640" (16.26mm)	0.549" (13.94mm)
Contact Shape	Square	Square	Square
Contact Finish - Mating	Gold	Gold or Gold, GXT™	Gold or Gold-Palladium
Contact Finish Thickness - Mating	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)
Contact Material	Phosphor Bronze Alloy	Phosphor Bronze Alloy	Phosphor Bronze
Insulation Material	Polyester, Glass Filled	Polyester, Glass Filled	-
Features	Keying Slot, Mounting Flange	Keying Slot	Keying Slot, Mounting Flange
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Blue	Blue	Black
RoHS Status	RoHS non-compliant	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

The 68710-169 is designated obsolete. Substitute models 10080054-169LF (Amphenol ICC) and 1658694-3 (TE Connectivity AMP) provide equivalent electrical and mechanical key parameters, with both substitutes holding active status and demonstrating RoHS compliance. All compared models meet the minimum requirement for Moisture Sensitivity Level (MSL 1, unlimited). Applications requiring environmental compliance must favor active RoHS-compliant alternatives.

Frequently Asked Questions (FAQ)

Q: What are the critical criteria for substituting Amphenol ICC (FCI) 68710-169 with another connector?
A: Key criteria include matching connector type, contact type, number of positions, pitch, row spacing, shrouding, mounting type, termination, insulation height, contact shape, and material flammability rating.

Q: Does the fastening type affect substitution compatibility?
A: Fastening type (Latch Lock/Eject Hooks vs. Push-Pull) should be noted for retention features but does not affect basic fit or electrical/mechanical function within this category if other parameters are matched.

Q: Is RoHS compliance a requirement for substitution?
A: RoHS compliance impacts suitability in regulated environments. Select a RoHS-compliant model if environmental requirements are present.

Q: Are packaging differences relevant for electrical or mechanical compatibility?
A: Packaging format (bulk, tray) is not a compatibility criterion for substitution in this category.

Q: Are insulation color and minor contact length differences critical?
A: Insulation color and small variances in contact length or insulation height do not critically affect function or interchangeability within the provided parameter set.

Q: Do substitute parts maintain availability and inventory?
A: Substitute parts 10080054-169LF and 1658694-3 are both listed as active with current inventory, supporting ongoing design requirements.
