Amphenol ICC 68685-316 Rectangular Connector - Equivalent & Substitute Parts
Part Overview
The Amphenol ICC 68685-316 is a 16-position receptacle connector with 0.100" (2.54mm) pitch, designed for board-to-board applications. This connector features gold-plated mating contacts, tin-plated posts, and through-hole solder termination. The part is classified as obsolete, making identification of suitable substitutes essential for ongoing system support and procurement planning.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | Receptacle |
| Number of Positions | 16 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Type | Female Socket |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Voltage Rating | 1000V |
| Operating Temperature | -65°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
Substitute Part Grouping Explanation
Substitution for the 68685-316 is determined by strict equivalence across the following critical parameters:
- Connector type (Receptacle)
- Number of positions (16)
- Pitch specification (0.100" / 2.54mm)
- Contact type (Female Socket)
- Mounting method (Through Hole)
- Termination type (Solder)
- Contact finish on mating surface (Gold or Gold, GXT™)
- Voltage rating (1000V)
- Operating temperature range (-65°C ~ 125°C)
- Flammability rating (UL94 V-0)
- Insulation material (Polyphenylene Sulfide)

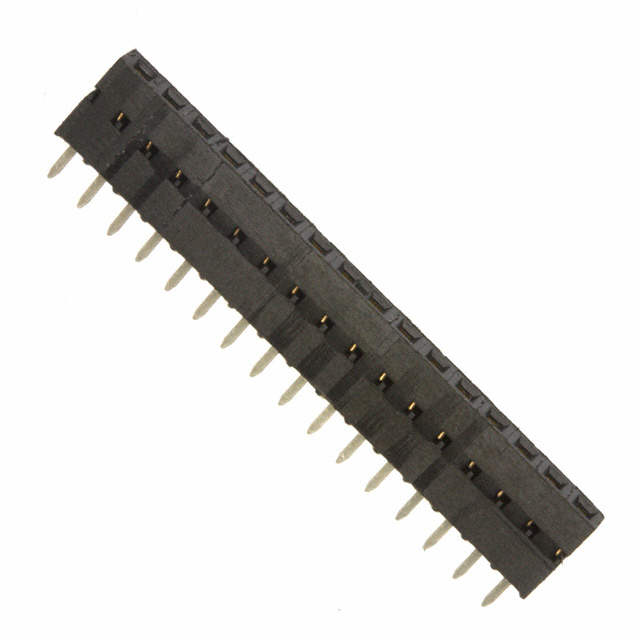

The 68685-316LF meets all these criteria and qualifies as a direct substitute.
Parameter Comparison
| Parameter | 68685-316 | 68685-316LF |
|---|---|---|
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| Series | Dubox™ | Dubox™ |
| Connector Type | Receptacle | Receptacle |
| Number of Positions | 16 | 16 |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Type | Female Socket | Female Socket |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Contact Finish - Mating | Gold or Gold, GXT™ | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.276" (7.00mm) | 0.276" (7.00mm) |
| Contact Length - Post | 0.115" (2.92mm) | 0.115" (2.92mm) |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin |
| Voltage Rating | 1000V | 1000V |
| Insulation Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| Contact Shape | Square | Square |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | 100.0µin (2.54µm) |
| Base Product Number | 68685 | 68685 |
| ECCN | EAR99 | EAR99 |
| HTSUS | 8536.69.4040 | 8536.69.4040 |
| Product Status | Obsolete | Active |
| RoHS Status | RoHS non-compliant | RoHS Compliant |
Engineering Selection Recommendations
The 68685-316LF is the direct substitute for the obsolete 68685-316. Both parts share identical electrical and mechanical specifications across all critical parameters. The primary distinction is product status and regulatory compliance: the 68685-316LF is active in production and RoHS compliant, whereas the 68685-316 is obsolete and RoHS non-compliant. For new designs and ongoing procurement, the 68685-316LF is the appropriate selection. Both parts carry REACH Affected status and EAR99 export classification.
Frequently Asked Questions (FAQ)
Q: Can the 68685-316LF be used as a direct replacement for the 68685-316?
A: Yes. The 68685-316LF meets all electrical and mechanical specifications of the 68685-316, including connector type, position count, pitch, contact configuration, mounting method, termination type, contact finishes, voltage rating, temperature range, and flammability rating.
Q: What is the difference between these two part numbers?
A: The 68685-316LF is the active production variant with RoHS compliance. The 68685-316 is obsolete and RoHS non-compliant. All functional and dimensional parameters are identical.
Q: Are there any compatibility concerns when substituting the 68685-316LF for the 68685-316?
A: No compatibility concerns exist. Both connectors are Dubox™ series receptacles with identical mating interfaces, post configurations, and through-hole footprints.
Q: What is the packaging format for these connectors?
A: Both parts are supplied in tube packaging.
Q: Are there inventory considerations for these parts?
A: The 68685-316 has 817 pieces in stock as new original inventory. The 68685-316LF has 1350 pieces in stock as new original inventory.
