Amphenol ICC 68648-003 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 68648-003 is a vertical rectangular connector header with 10 positions at 2.54mm pitch, designed for through-hole mounting with solder termination. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing production and maintenance applications. The BERGSTIK® series header features shrouded 4-wall construction with male pin contacts and push-pull fastening, suitable for board-to-cable/wire interconnections in standard industrial and commercial electronics.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Moisture Sensitivity Level (MSL)	1 (Unlimited)
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 68648-003 is determined by strict alignment with the following core parameters:

Connector type: Header
Contact type: Male pin
Pitch: 0.100" (2.54mm)
Position count: 10 positions in 2 rows
Row spacing: 0.100" (2.54mm)
Shrouding: Shrouded 4-wall construction
Mounting: Through-hole solder termination
Insulation material class: Polyester or thermoplastic with UL94 V-0 rating
MSL rating: 1 (Unlimited)

Five substitute parts meet these core electrical and mechanical criteria. Substitutes are grouped into two categories based on fastening mechanism and contact finish specifications:

Group A (Push-Pull Fastening): 68666-003LF from Amphenol ICC maintains the original push-pull fastening type with updated contact finish specifications and RoHS compliance.

Group B (Detent Lock Fastening): 103169-3, 5-103169-3, 5-87587-1, and 87474-1 from TE Connectivity AMP Connectors feature detent lock fastening, which differs from the original push-pull mechanism but maintains all other core mechanical and electrical parameters.

Parameter Comparison

Parameter	68648-003 (Main)	68666-003LF	103169-3	5-103169-3	5-87587-1	87474-1
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	TE Connectivity AMP	TE Connectivity AMP	TE Connectivity AMP	TE Connectivity AMP
Product Status	Obsolete	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	10	10	10	10	10	10
Number of Rows	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Detent Lock	Detent Lock	Detent Lock	Detent Lock
Contact Length - Mating	—	0.315" (8.00mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)
Contact Length - Post	0.130" (3.30mm)	0.130" (3.30mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)
Insulation Height	0.440" (11.18mm)	0.440" (11.18mm)	0.440" (11.18mm)	0.440" (11.18mm)	0.440" (11.18mm)	0.440" (11.18mm)
Contact Shape	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold or Gold, GXT™	Palladium-Nickel	Gold	Gold	Tin	Gold
Contact Material	Phosphor Bronze Alloy	Phosphor Bronze Alloy	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Polyester, Glass Filled	Polyester, Glass Filled	Thermoplastic	Thermoplastic	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black
Current Rating (Amps)	—	—	3A	3A	3A	3A
Operating Temperature	—	—	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	RoHS non-compliant	RoHS Compliant	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

For RoHS Compliant Applications:

Select 68666-003LF, 5-103169-3, 5-87587-1, or 87474-1. These parts carry active product status with current RoHS or ROHS3 compliance certifications. The 68666-003LF maintains Amphenol ICC manufacturing continuity with push-pull fastening. TE Connectivity alternatives (5-103169-3, 5-87587-1, 87474-1) provide ROHS3 compliance with detent lock fastening and specified operating temperature ranges.

For Legacy System Maintenance:

The 68648-003 is obsolete. Direct replacement with 68666-003LF preserves the push-pull fastening mechanism and Amphenol ICC sourcing. If fastening mechanism change is acceptable, TE Connectivity AMPMODU Mod II series (103169-3, 5-103169-3, 5-87587-1, 87474-1) offers active product status with detent lock fastening.

For Temperature-Specified Applications:

TE Connectivity parts (103169-3, 5-103169-3, 5-87587-1, 87474-1) specify operating temperature range of -65°C to 105°C. The 68648-003 and 68666-003LF do not provide operating temperature specifications.

For Contact Finish Considerations:

68666-003LF uses palladium-nickel mating finish. 103169-3, 5-103169-3, and 87474-1 use gold mating finish. 5-87587-1 uses tin mating finish. Original 68648-003 specifies gold or gold GXT™ finish.

For Mechanical Mounting:

87474-1 includes mounting flange feature. All other substitutes lack this specification.

Frequently Asked Questions (FAQ)

Q: Can 68666-003LF directly replace 68648-003 in existing designs?

A: Yes. Both parts share identical pitch (2.54mm), position count (10), row configuration (2 rows), shrouding (4-wall), mounting type (through-hole), and termination (solder). Both use push-pull fastening. The primary difference is RoHS compliance status and contact finish specification (palladium-nickel versus gold/GXT™).

Q: What is the key difference between Group A and Group B substitutes?

A: Group A (68666-003LF) maintains push-pull fastening identical to the original 68648-003. Group B (TE Connectivity parts) uses detent lock fastening instead. Detent lock provides positive engagement with audible/tactile feedback, while push-pull relies on friction-based retention. This is a functional difference requiring design review if the mating connector is already specified for push-pull engagement.

Q: Are TE Connectivity AMPMODU Mod II parts (103169-3, 5-103169-3, 5-87587-1, 87474-1) interchangeable with each other?

A: All four TE Connectivity parts share identical core specifications: 10 positions, 2.54mm pitch, 2-row configuration, detent lock fastening, through-hole solder termination, and UL94 V-0 rating. Differences exist in contact finish (gold versus tin), insulation material (thermoplastic versus polyamide/nylon), and post finish specifications. 5-103169-3 and 5-87587-1 carry ROHS3 compliance; 103169-3 is RoHS non-compliant. Selection depends on RoHS requirement and contact finish specification for your application.

Q: Does contact finish affect electrical performance?

A: Contact finish affects corrosion resistance and long-term reliability in specific environmental conditions. Gold finishes (103169-3, 5-103169-3, 87474-1) provide superior corrosion resistance. Palladium-nickel (68666-003LF) and tin (5-87587-1) finishes have different environmental performance profiles. Consult application requirements for humidity, temperature cycling, and chemical exposure.

Q: What is the significance of the "LF" suffix in 68666-003LF?

A: The "LF" designation indicates lead-free compliance, consistent with RoHS requirements. This reflects the transition from lead-containing solder finishes to lead-free alternatives.

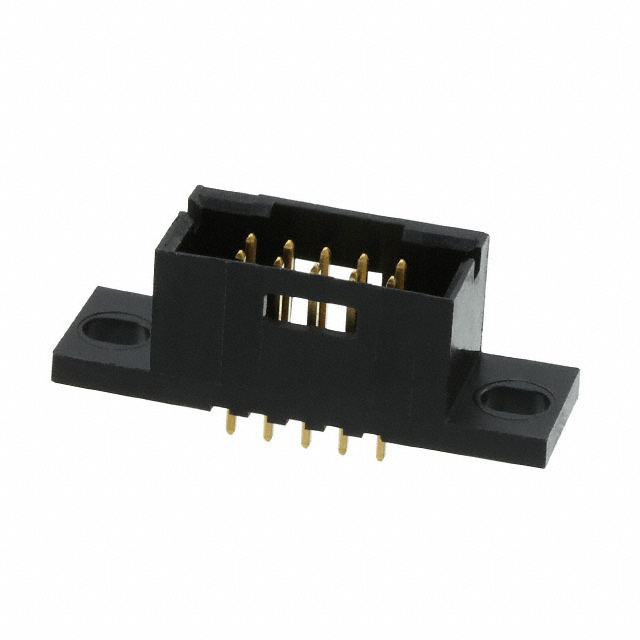

Q: Can I use 87474-1 if my PCB design requires a mounting flange?

A: Yes. 87474-1 is the only substitute part that includes a mounting flange feature. If your design specifies or requires flange mounting, 87474-1 is the appropriate selection among the available substitutes.

Q: What inventory levels are available for these substitute parts?

A: 68666-003LF: 959 pcs; 103169-3: 2104 pcs; 5-103169-3: 5212 pcs; 5-87587-1: 651 pcs; 87474-1: 1528 pcs. Inventory levels support production requirements across all substitute options.
