Amphenol ICC 68622-613 Rectangular Connector - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 68622-613 is a 26-position receptacle connector with 0.100" (2.54mm) pitch, designed for surface mount board-to-board applications. This connector features gold-plated mating contacts, push-pull fastening, and board lock functionality. The part is classified as obsolete, making identification of equivalent and substitute components essential for ongoing system support and procurement planning. Active alternatives with identical or compatible electrical and mechanical specifications are available from both the original manufacturer and qualified cross-reference suppliers.

Substiute Parts

68622-613

Amphenol ICC (FCI)In Stock: 102668622-613 Datasheet

Current PartRFQ

68622-613LF

Amphenol ICC (FCI)In Stock: 114168622-613LF Datasheet

DirectRFQ

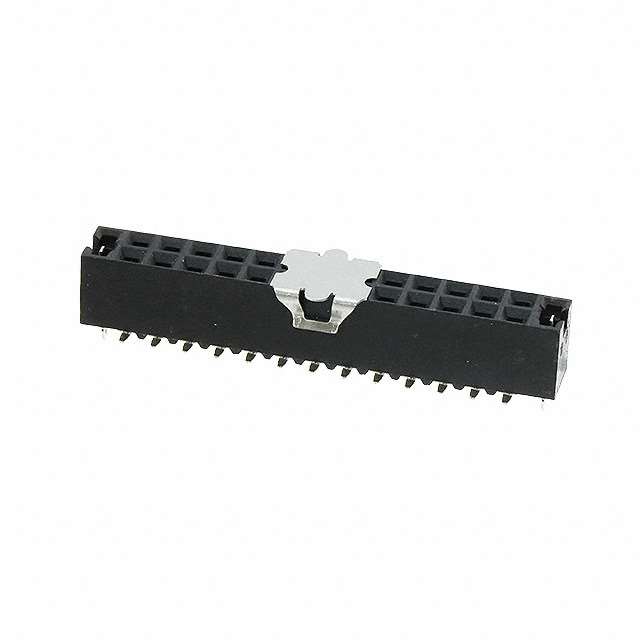

6-147102-3

TE Connectivity AMP ConnectorsIn Stock: 10326-147102-3 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 68622-613 is determined by strict equivalence across the following critical parameters:

• Connector Configuration: Receptacle, female socket, 26 positions
• Pitch Specification: 0.100" (2.54mm) mating pitch with 2-row configuration and 0.100" row spacing
• Mounting and Termination: Surface mount with solder termination
• Fastening and Contact Finish: Push-pull fastening with gold-plated mating contacts
• Environmental and Material Compliance: Operating temperature range -65°C to 125°C, UL94 V-0 flammability rating, polyester glass-filled insulation, phosphor bronze contacts

The identified substitutes maintain these core parameters while differing in product status, packaging format, and secondary specifications such as insulation height and contact finish thickness on post terminals.

Parameter Comparison

Engineering Selection Recommendations

68622-613LF is the primary direct substitute for the obsolete 68622-613. Both parts are manufactured by Amphenol ICC within the Dubox™ series and maintain identical electrical and mechanical specifications. The 68622-613LF is currently in active production status with higher inventory availability. The primary distinction is packaging format (tube versus bag) and RoHS compliance status. The 68622-613LF is RoHS compliant, making it suitable for applications subject to RoHS regulations.

6-147102-3 from TE Connectivity AMP Connectors is a qualified cross-manufacturer substitute. This part maintains all critical connector parameters including 26-position configuration, 0.100" pitch, surface mount solder termination, and push-pull fastening. The 6-147102-3 features bottom or top entry capability and includes pick-and-place optimization features. The insulation height differs at 0.265" (6.73mm) compared to 0.310" (7.87mm) on the primary part. This dimensional variance requires verification against PCB layout constraints. The 6-147102-3 is RoHS compliant and actively produced.

For new designs or procurement requiring RoHS compliance, either 68622-613LF or 6-147102-3 is appropriate. For legacy system support where RoHS compliance is not mandated, 68622-613LF provides the closest form-fit-function match.

Frequently Asked Questions (FAQ)

Q: Can 68622-613LF be used as a direct replacement for 68622-613 in existing assemblies?

A: Yes. The 68622-613LF maintains identical electrical and mechanical specifications including connector type, position count, pitch, mounting method, and contact finish. The primary difference is packaging format and RoHS compliance status. Mechanical fit and electrical performance are equivalent.

Q: What is the significance of the insulation height difference in the 6-147102-3?

A: The 6-147102-3 has an insulation height of 0.265" (6.73mm) compared to 0.310" (7.87mm) on the 68622-613 and 68622-613LF. This 0.045" (1.14mm) reduction must be evaluated against PCB layout, mating connector clearance, and component placement constraints. Physical verification is required before design implementation.

Q: Are there voltage or current rating differences between these substitutes?

A: The 68622-613 and 68622-613LF both specify 1000V voltage rating with no current rating provided. The 6-147102-3 specifies 2A current rating with no voltage rating provided. Application requirements must be evaluated against these specifications.

Q: What packaging considerations apply to these parts?

A: The 68622-613 is supplied in bag packaging. Both 68622-613LF and 6-147102-3 are supplied in tube packaging. Tube packaging provides improved protection and is standard for active production parts. Bag packaging is typical for legacy or obsolete inventory.

Q: Are all three parts RoHS compliant?

A: No. The 68622-613 is RoHS non-compliant. Both 68622-613LF and 6-147102-3 are RoHS compliant. For applications subject to RoHS regulations, use 68622-613LF or 6-147102-3.

Q: Can the 6-147102-3 be used in applications designed for the 68622-613?

A: The 6-147102-3 is electrically and mechanically compatible for the core connector function. However, the reduced insulation height requires physical verification against PCB layout and mating connector specifications. The bottom or top entry capability of the 6-147102-3 may provide additional design flexibility not available in the original part.
