Amphenol ICC 68418-402 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 68418-402 is a BERGSTIK® II series rectangular connector header designed for through-hole mounting applications. This 2-position, 0.100" (2.54mm) pitch connector features male pins with tin-plated phosphor bronze contacts and unshrouded design, suitable for board-to-board connections. The part is currently active in production with 683 units in stock. Equivalent and substitute parts are identified to support design flexibility, inventory optimization, and supply chain continuity for applications requiring compatible 2-position 2.54mm pitch header connectors.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Contact Shape	Square
Shrouding	Unshrouded
Material Flammability Rating	UL94 V-0
Insulation Color	Black
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitute parts for the 68418-402 are qualified based on the following critical parameters that must align with the original specification:

Connector Type: Header (with or without breakaway feature)
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 2
Number of Rows: 1
Mounting Type: Through Hole
Termination: Solder
Contact Shape: Square
Shrouding: Unshrouded
Material Flammability Rating: UL94 V-0

Substitute parts may vary in the following parameters without affecting functional compatibility:

Contact Length - Mating (range: 0.230" to 0.250")
Contact Length - Post (range: 0.100" to 0.300")
Overall Contact Length (varies with post length)
Insulation Height (0.060" to 0.110")
Contact Finish - Mating (Tin or Gold)
Contact Finish Thickness - Mating (3.00µin to 100.0µin)
Contact Material (Phosphor Bronze or Copper Alloy)
Insulation Material (varies by manufacturer)
Insulation Color (Black or Natural)
Operating Temperature Range (where specified)
Current Rating (where specified)
RoHS Compliance Status
Packaging (Bulk or Bag)

Parameter Comparison

Part Number	Manufacturer	Connector Type	Contact Type	Pitch (mm)	Positions	Rows	Mounting	Termination	Contact Shape	Shrouding	Contact Length - Mating (in)	Contact Length - Post (in)	Insulation Height (in)	Contact Finish - Mating	Contact Material	Flammability	Operating Temp (°C)	RoHS Status	Inventory
68418-402	Amphenol ICC	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.230	0.400	0.100	Tin	Phosphor Bronze	UL94 V-0	Not specified	Non-compliant	683 Pcs
929450-01-02-I	3M	Header, Breakaway	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.295	0.130	0.110	Gold	Copper Alloy	UL94 V-0	-40 to 105	Not specified	1099 Pcs

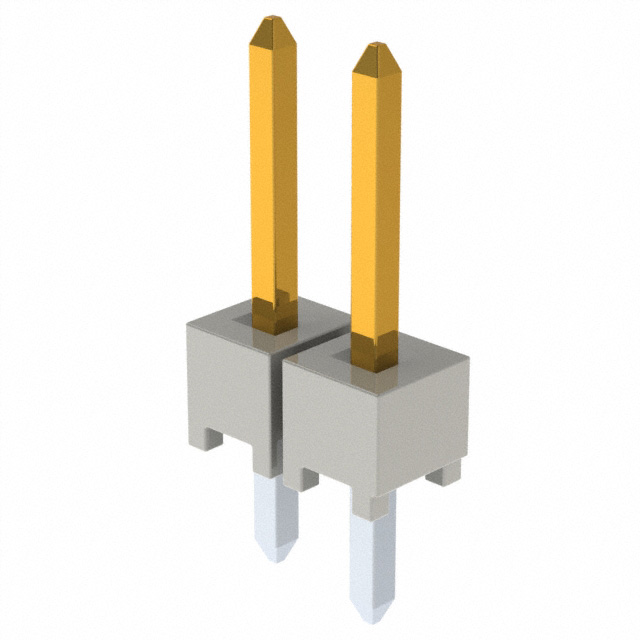

HTSW-102-07-S-S	Samtec Inc.	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.230	0.100	0.100	Gold	Phosphor Bronze	UL94 V-0	-55 to 125	ROHS3 Compliant	2848 Pcs
HTSW-102-08-L-S	Samtec Inc.	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.230	0.200	0.100	Gold	Phosphor Bronze	UL94 V-0	-55 to 125	ROHS3 Compliant	1404 Pcs
HTSW-102-08-S-S	Samtec Inc.	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.230	0.200	0.100	Gold	Phosphor Bronze	UL94 V-0	-55 to 125	ROHS3 Compliant	6625 Pcs
HTSW-102-22-S-S	Samtec Inc.	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.230	0.300	0.100	Gold	Phosphor Bronze	UL94 V-0	-55 to 125	ROHS3 Compliant	1986 Pcs
HTSW-102-23-G-S	Samtec Inc.	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.230	0.115	0.100	Gold	Phosphor Bronze	UL94 V-0	-55 to 125	ROHS3 Compliant	3320 Pcs
HTSW-102-23-L-S	Samtec Inc.	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.230	0.115	0.100	Gold	Phosphor Bronze	UL94 V-0	-55 to 125	ROHS3 Compliant	1402 Pcs
HTSW-102-26-F-S	Samtec Inc.	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.230	0.126	0.100	Gold	Phosphor Bronze	UL94 V-0	-55 to 125	ROHS3 Compliant	4246 Pcs
MTLW-102-07-G-S-230	Samtec Inc.	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.230	0.140	0.060	Gold	Phosphor Bronze	UL94 V-0	-55 to 125	ROHS3 Compliant	2093 Pcs
MTLW-102-07-L-S-250	Samtec Inc.	Header	Male Pin	2.54	2	1	Through Hole	Solder	Square	Unshrouded	0.250	0.120	0.060	Gold	Phosphor Bronze	UL94 V-0	-55 to 125	ROHS3 Compliant	4856 Pcs

Engineering Selection Recommendations

All listed substitute parts maintain functional compatibility with the 68418-402 through matching core specifications: 2-position, 0.100" (2.54mm) pitch, male pin headers with square contacts, unshrouded design, through-hole solder termination, and UL94 V-0 flammability rating.

The Samtec HTSW series (HTSW-102-07-S-S, HTSW-102-08-L-S, HTSW-102-08-S-S, HTSW-102-22-S-S, HTSW-102-23-G-S, HTSW-102-23-L-S, HTSW-102-26-F-S) offers ROHS3 compliance and extended operating temperature range (-55°C to 125°C) compared to the original part. These variants differ primarily in contact post length and contact finish specifications, allowing selection based on specific board depth and environmental requirements.

The Samtec Flex Stack MTLW series (MTLW-102-07-G-S-230, MTLW-102-07-L-S-250) provides reduced insulation height (0.060" versus 0.100") and higher current rating (5.2A per contact), suitable for compact board layouts and higher current applications.

The 3M 929450-01-02-I offers breakaway header functionality with gold-plated copper alloy contacts and specified operating temperature range (-40°C to 105°C), providing an alternative for applications requiring component separation capability.

Frequently Asked Questions (FAQ)

Q: Can I substitute the 68418-402 with any of the listed parts without PCB redesign?

A: Yes, all listed substitute parts share the critical specifications that determine PCB compatibility: 2-position, 0.100" (2.54mm) pitch, male pin headers with square contacts, through-hole solder termination, and unshrouded design. However, variations in contact post length (ranging from 0.100" to 0.400") and insulation height (0.060" to 0.110") may affect board depth requirements. Verify your specific board thickness and mating connector depth before selection.

Q: What is the difference between the HTSW and MTLW series?

A: The HTSW series maintains standard insulation height (0.100") with variable contact post lengths from 0.100" to 0.300". The MTLW Flex Stack series features reduced insulation height (0.060") and higher current rating (5.2A per contact), designed for compact applications. Both series offer ROHS3 compliance and extended temperature range (-55°C to 125°C).

Q: Does the contact finish affect electrical performance?

A: Contact finish (tin or gold) does not affect basic electrical connectivity. Gold-plated contacts (used in most Samtec substitutes) provide enhanced corrosion resistance and lower contact resistance compared to tin plating. The 68418-402 uses tin plating; substitutes with gold plating offer improved reliability in demanding environments.

Q: Are there inventory considerations for substitute selection?

A: Yes. The HTSW-102-08-S-S has the highest inventory (6625 Pcs), followed by HTSW-102-23-G-S (3320 Pcs) and MTLW-102-07-L-S-250 (4856 Pcs). The original 68418-402 has 683 Pcs in stock. Substitute selection may be influenced by availability and supply chain requirements.

Q: What is the significance of RoHS compliance status?

A: The original 68418-402 is RoHS non-compliant. All Samtec substitutes (HTSW and MTLW series) are ROHS3 compliant, meeting current environmental regulations. The 3M 929450-01-02-I RoHS status is not specified. For applications subject to RoHS requirements, Samtec parts are the appropriate choice.

Q: Can I use the 3M 929450-01-02-I as a direct replacement?

A: The 3M part is functionally compatible as a 2-position, 0.100" (2.54mm) pitch header with male pins and UL94 V-0 rating. The breakaway feature provides additional design flexibility. However, it uses copper alloy contacts with gold plating (versus phosphor bronze in the original), operates at a lower maximum temperature (-40°C to 105°C), and has different contact dimensions. Verify compatibility with your specific application requirements.
