Amphenol ICC 68415-411HLF Equivalent & Substitute Parts

Part Overview

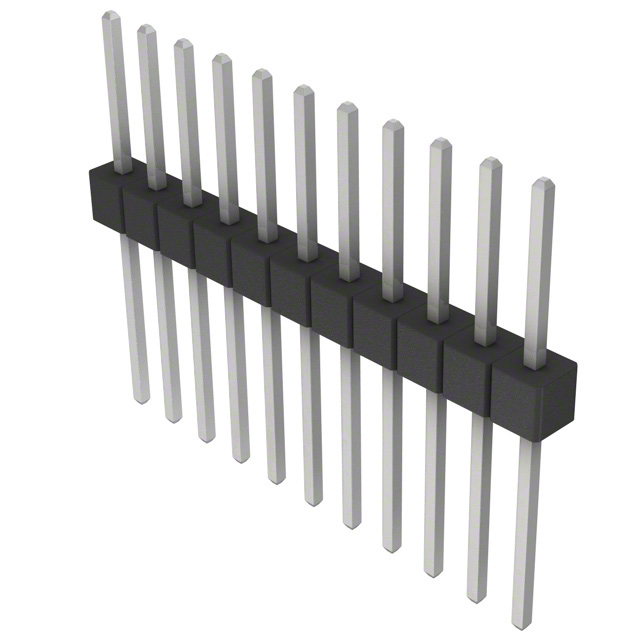

The Amphenol ICC 68415-411HLF is a rectangular connector header with 11 vertical positions at 2.54mm pitch, designed for through-hole board-to-board applications. This component belongs to the BERGSTIK® II series and features unshrouded male pin contacts with solder termination and push-pull fastening. The part is currently listed as obsolete, making equivalent substitutes necessary for ongoing production and maintenance applications requiring compatible 11-position 2.54mm pitch headers.

Key Parameters

Parameter	Value
Manufacturer Part Number	68415-411HLF
Manufacturer	Amphenol ICC (FCI)
Series	BERGSTIK® II
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Number of Positions	11
Number of Rows	1
Pitch - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Shrouding	Unshrouded
Style	Board to Board
Contact Shape	Square
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the 68415-411HLF is determined by the following critical parameters that must remain consistent:

Pitch - Mating: 0.100" (2.54mm) — all substitutes must maintain this spacing
Number of Positions: 11 positions in a single row
Connector Type: Header with male pin contacts
Mounting Type: Through hole solder termination
Fastening Type: Push-pull mechanism
Style: Board-to-board configuration
Shrouding: Unshrouded design
Contact Shape: Square pins

Substitute parts are grouped by manufacturer and series. Within each group, variations exist in contact length, contact finish (tin vs. gold), insulation material, and operating temperature range. These variations are acceptable substitutes provided the core mechanical and electrical interface parameters remain unchanged.

Parameter Comparison

Parameter	68415-411HLF (Main)	77311-132-11LF	0022102111	929700-11-11-RK	929705-01-11-EU	929705-01-11-I	929705-06-11-EU	929705-06-11-I	929705-09-11-EU	929705-09-11-I	929705-11-11-EU
Manufacturer	Amphenol ICC	Amphenol ICC	Molex	3M	3M	3M	3M	3M	3M	3M	3M
Series	BERGSTIK® II	BERGSTIK®	KK254, 4030	929	929	929	929	929	929	929	929
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	11	11	11	11	11	11	11	11	11	11	11
Number of Rows	1	1	1	1	1	1	1	1	1	1	1
Connector Type	Header	Header	Header	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Shrouding	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Style	Board to Board	Board to Board	Board to Board or Cable	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.400" (10.16mm)	0.406" (10.30mm)	0.295" (7.49mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)
Contact Length - Post	0.115" (2.92mm)	0.120" (3.05mm)	0.135" (3.43mm)	0.125" (3.18mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.710" (18.03mm)	0.710" (18.03mm)	0.145" (3.68mm)	0.145" (3.68mm)	0.125" (3.18mm)
Overall Contact Length	0.615" (15.62mm)	0.626" (15.90mm)	0.560" (14.22mm)	0.543" (13.80mm)	0.528" (13.42mm)	0.528" (13.42mm)	1.128" (28.65mm)	1.128" (28.65mm)	0.563" (14.30mm)	0.563" (14.30mm)	0.543" (13.80mm)
Insulation Height	0.100" (2.54mm)	0.100" (2.54mm)	0.130" (3.30mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Finish - Mating	Tin	Gold or Gold, GXT™	Gold	Tin	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish - Post	Tin	Tin	Tin	Tin	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze	Not specified	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Material	Not specified	Thermoplastic	Polyamide (PA), Nylon	Polycyclohexylenedimethylene Terephthalate (PCT)	Polycyclohexylenedimethylene Terephthalate (PCT)	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)
Operating Temperature	Not specified	-65°C ~ 125°C	Not specified	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Current Rating (Amps)	Not specified	3A per Contact	Not specified	2.5A	2.5A	2.5A	2.5A	2.5A	2.5A	2.5A	2.5A
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	White	Black	Black	Black	Black	Black	Black	Black	Black
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	Not specified	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant

Engineering Selection Recommendations

All listed substitute parts maintain active product status, ensuring ongoing availability and manufacturer support. The primary substitute from Amphenol ICC is the 77311-132-11LF (BERGSTIK® series), which provides the closest compatibility as a direct manufacturer alternative with extended operating temperature range (-65°C to 125°C) and higher current rating (3A per contact).

For applications requiring tin-plated contacts matching the original 68415-411HLF specification, the 929700-11-11-RK from 3M provides a direct functional equivalent with identical contact finish and insulation height.

For applications requiring gold-plated contacts, multiple 3M 929705 series variants are available with different post lengths to accommodate various PCB thicknesses and assembly requirements. The 929705-01-11-EU and 929705-01-11-I variants provide standard post lengths (0.110"), while 929705-06-11-EU and 929705-06-11-I offer extended post lengths (0.710") for applications requiring deeper board penetration. The 929705-09-11-EU and 929705-09-11-I variants provide intermediate post lengths (0.145").

The Molex 0022102111 (KK254 series) is compatible for board-to-board or cable applications with slightly reduced mating contact length (0.295") and increased insulation height (0.130"), suitable for applications where these dimensional variations are acceptable.

All substitute parts carry UL94 V-0 flammability certification and MSL 1 moisture sensitivity rating, matching the original specification. RoHS compliance is confirmed for all active substitutes.

Frequently Asked Questions (FAQ)

Q: Can the 68415-411HLF be directly replaced with any of these substitutes?

A: Yes, all listed parts are mechanically and electrically compatible substitutes. The 11-position 2.54mm pitch header interface is standardized across all variants. Physical board layout compatibility depends on specific post length and insulation height requirements for your application.

Q: What is the difference between tin-plated and gold-plated contact finishes?

A: The original 68415-411HLF uses tin plating on both mating and post contacts. Gold-plated variants (3M 929705 series) provide enhanced corrosion resistance and lower contact resistance, beneficial for high-reliability applications. Tin plating is suitable for standard industrial applications with adequate environmental protection.

Q: Why do some 3M 929705 variants have significantly longer post lengths (0.710")?

A: Post length variations accommodate different PCB thicknesses and assembly configurations. Standard lengths (0.110" to 0.145") suit typical PCB thicknesses of 0.062" to 0.093". Extended lengths (0.710") are for applications requiring deeper board penetration or stacked board configurations.

Q: Is the Molex 0022102111 suitable as a direct replacement?

A: The Molex part is functionally compatible for board-to-board applications. However, it has a reduced mating contact length (0.295" vs. 0.400") and increased insulation height (0.130" vs. 0.100"), which may affect mating force and connector stacking height. Verify these dimensional differences against your specific application requirements.

Q: What is the difference between the 929705-01-11-EU and 929705-01-11-I variants?

A: Both variants have identical electrical and mechanical specifications. The primary difference is insulation material: the -EU variant uses Polycyclohexylenedimethylene Terephthalate (PCT), while the -I variant uses Polybutylene Terephthalate (PBT) with glass filler. Both materials meet UL94 V-0 flammability requirements and are suitable for standard applications.

Q: Are all substitutes RoHS compliant?

A: Yes, all active substitute parts listed carry RoHS compliance certification (RoHS Compliant or ROHS3 Compliant). The original 68415-411HLF RoHS status is not specified due to its obsolete status.

Q: What is the current rating difference between the original part and substitutes?

A: The original 68415-411HLF does not specify a current rating. The Amphenol ICC 77311-132-11LF provides 3A per contact, while 3M 929700 and 929705 series provide 2.5A per contact. The Molex 0022102111 does not specify a current rating. Select based on your application's current requirements.

Q: Can I use these connectors in high-temperature applications?

A: The Amphenol ICC 77311-132-11LF supports -65°C to 125°C operating temperature. The 3M 929700 and 929705 series support -40°C to 105°C. Verify the operating temperature range of your selected substitute against your application requirements.
