Amphenol ICC 68000-102 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

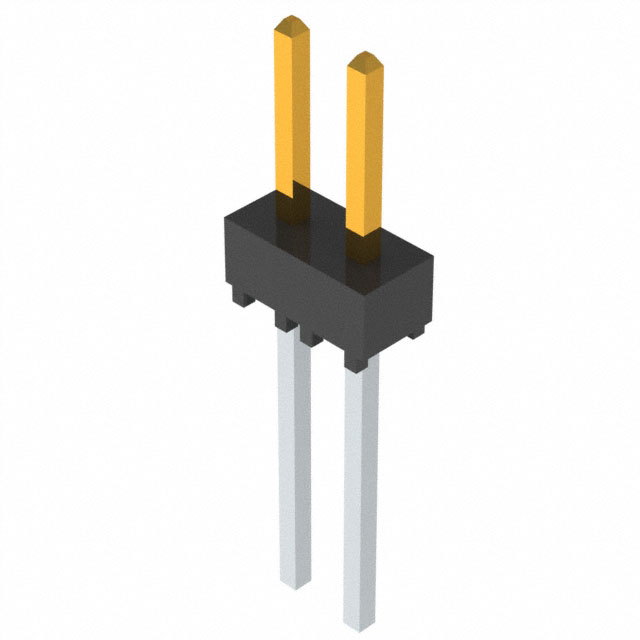

The Amphenol ICC 68000-102 is a vertical through-hole rectangular connector header from the BERGSTIK® II series, designed for board-to-board applications with 2 positions at 0.100" (2.54mm) pitch. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The connector features unshrouded male pin contacts with solder termination, rated for 3A per contact across an operating temperature range of -65°C to 125°C.

Key Parameters

Parameter	Value
Manufacturer Part Number	68000-102
Manufacturer	Amphenol ICC (FCI)
Series	BERGSTIK® II
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.095" (2.41mm)
Overall Contact Length	0.425" (10.80mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Material	Phosphor Bronze
Operating Temperature	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3A per Contact
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040

Substitute Part Grouping Explanation

Substitution for the 68000-102 is determined by strict alignment of electrical and mechanical parameters. The critical substitution criteria are:

Primary Matching Parameters:

Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 2
Number of Rows: 1
Connector Type: Header
Contact Type: Male Pin
Mounting Type: Through Hole
Termination: Solder
Operating Temperature Range: -65°C ~ 125°C
Material Flammability Rating: UL94 V-0
Current Rating: 3A per Contact

Secondary Compatibility Parameters:

Contact Length - Mating: 0.230" (5.84mm) ±tolerance
Contact Length - Post: 0.095" (2.41mm) ±tolerance
Overall Contact Length: 0.425" (10.80mm) ±tolerance
Insulation Height: 0.100" (2.54mm)
Contact Shape: Square
Contact Material: Phosphor Bronze
Insulation Color: Black

Substitute parts are grouped into two categories: direct Amphenol ICC alternatives within the BERGSTIK® family, and cross-manufacturer alternatives from Molex and Preci-Dip that meet equivalent electrical and mechanical specifications. Variations in contact finish thickness, post finish material, and RoHS compliance status do not preclude substitution when core electrical and mechanical parameters align.

Parameter Comparison

Parameter	68000-102	54101-G0502LF	68000-102HLF	68000-202HLF	77311-101-02LF	0050291692	0050291883	0423751922	0423752486	0423752521	350-10-102-00-013101
Manufacturer	Amphenol ICC	Amphenol ICC	Amphenol ICC	Amphenol ICC	Amphenol ICC	Molex	Molex	Molex	Molex	Molex	Preci-Dip
Series	BERGSTIK® II	BERGSTIK®	BERGSTIK® II	BERGSTIK® II	BERGSTIK®	KK254, 42375	KK254, 42375	KK254, 42375	KK254, 42375	KK254, 42375	350
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	2	2	2	2	2	2	2	2	2	2	2
Number of Rows	1	1	1	1	1	1	1	1	1	1	1
Connector Type	Header	Header	Header	Header	Header	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Kinked Pin, Solder	Solder	Solder	Solder	Solder
Contact Length - Mating	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.190" (4.83mm)	0.232" (5.90mm)	0.232" (5.90mm)	0.134" (3.39mm)
Contact Length - Post	0.095" (2.41mm)	0.095" (2.41mm)	0.095" (2.41mm)	0.095" (2.41mm)	0.095" (2.41mm)	0.125" (3.18mm)	0.135" (3.43mm)	0.190" (4.83mm)	0.153" (3.89mm)	0.153" (3.89mm)	0.121" (3.08mm)
Overall Contact Length	0.425" (10.80mm)	0.425" (10.80mm)	0.425" (10.80mm)	0.425" (10.80mm)	0.425" (10.80mm)	0.455" (11.56mm)	0.465" (11.81mm)	0.470" (11.94mm)	0.475" (12.07mm)	0.475" (12.07mm)	0.416" (10.57mm)
Insulation Height	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.116" (2.95mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Circular
Contact Finish - Mating	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold	Gold	Tin	Gold	Gold	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	100.0µin (2.54µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	10.0µin (0.25µm)
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Not specified	Not specified	Not specified	Not specified	Not specified	Brass
Operating Temperature	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	Not specified	Not specified	Not specified	Not specified	Not specified	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	Not specified	Not specified	Not specified	Not specified	Not specified	3A
RoHS Status	RoHS non-compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

Amphenol ICC Direct Alternatives (Recommended for Form-Fit-Function Replacement)

The Amphenol ICC BERGSTIK® II series parts 68000-102HLF and 68000-202HLF are the closest functional equivalents to the obsolete 68000-102. Both maintain identical pitch, position count, contact geometry, and electrical ratings. The 68000-102HLF is an active production part with RoHS compliance and identical contact finish thickness (30.0µin), making it the primary direct replacement. The 68000-202HLF offers an alternative with reduced contact finish thickness (15.0µin) while maintaining all other critical parameters.

The Amphenol ICC BERGSTIK® series part 54101-G0502LF provides an alternative within the same manufacturer family, with identical electrical and mechanical specifications but different series designation. This part is actively produced and RoHS compliant.

The Amphenol ICC part 77311-101-02LF represents a cross-series alternative within Amphenol ICC's connector portfolio, maintaining all critical electrical and mechanical parameters with active production status and RoHS compliance.

Cross-Manufacturer Alternatives (Molex KK254 Series)

Molex KK254 series parts (0050291692, 0050291883, 0423751922, 0423752486, 0423752521) provide functional equivalents with identical pitch and position configuration. These parts feature breakaway connector capability and are actively produced with ROHS3 compliance. Contact length variations exist across the Molex lineup, with some parts exhibiting different mating contact lengths (0.190" to 0.240") and post lengths (0.125" to 0.190") compared to the original 68000-102 specification. The 0050291692 and 0050291883 maintain closest dimensional alignment to the original part.

Cross-Manufacturer Alternative (Preci-Dip 350 Series)

The Preci-Dip part 350-10-102-00-013101 meets core electrical and mechanical requirements with identical pitch, position count, and current rating. This part features circular contact geometry (versus square in the original), brass contact material (versus phosphor bronze), and a slightly different insulation height (0.116" versus 0.100"). Operating temperature range is -55°C to 125°C, providing adequate coverage for the original -65°C to 125°C specification in most applications. This part is actively produced and ROHS3 compliant.

Compliance Considerations

The original 68000-102 is RoHS non-compliant. All substitute parts listed are RoHS compliant or ROHS3 compliant, making them suitable for new designs and applications subject to RoHS regulations. All parts maintain UL94 V-0 flammability rating and MSL 1 (Unlimited) moisture sensitivity classification.

Frequently Asked Questions (FAQ)

Q: Can I directly replace the obsolete 68000-102 with the 68000-102HLF?

A: Yes. The 68000-102HLF is the direct functional equivalent, maintaining identical pitch (0.100"), position count (2), contact geometry (square), electrical rating (3A per contact), operating temperature range (-65°C to 125°C), and termination method (solder). The primary difference is product status (active versus obsolete) and RoHS compliance. Mechanical and electrical compatibility is complete.

Q: What are the key differences between Amphenol ICC and Molex alternatives?

A: Amphenol ICC alternatives maintain identical contact geometry (square) and material specifications (phosphor bronze). Molex KK254 series parts feature breakaway connector capability and may have different contact length specifications. Molex parts do not specify contact material or operating temperature range in the provided data. For applications requiring exact dimensional matching, Amphenol ICC alternatives are preferred.

Q: Can I use the Preci-Dip 350-10-102-00-013101 as a substitute?

A: The Preci-Dip part meets core electrical requirements (3A current rating, 0.100" pitch, 2 positions, UL94 V-0 flammability). However, it features circular contact geometry (not square), brass contact material (not phosphor bronze), and a slightly higher insulation height (0.116" versus 0.100"). These differences may affect mechanical fit in applications with tight contact geometry tolerances. Evaluate mechanical compatibility with your specific PCB layout and mating connector before selection.

Q: What is the difference between contact finish thickness specifications?

A: Contact finish thickness affects contact durability and wear resistance. The original 68000-102 specifies 30.0µin (0.76µm) gold finish on mating contacts. Alternatives range from 10.0µin to 100.0µin. Thicker finishes (100.0µin) provide greater wear resistance for high-cycle mating applications. Thinner finishes (10.0µin to 15.0µin) are acceptable for applications with limited mating cycles. Select based on your application's mating cycle requirements.

Q: Are all substitute parts RoHS compliant?

A: Yes. All listed substitute parts are either RoHS Compliant or ROHS3 Compliant. The original 68000-102 is RoHS non-compliant. If your application or market requires RoHS compliance, any of the listed substitutes are suitable. If legacy RoHS non-compliant parts are required, the original 68000-102 must be sourced from existing inventory.

Q: What packaging options are available?

A: Amphenol ICC parts are available in Bag or Bulk packaging. Molex and Preci-Dip alternatives are supplied in Bulk packaging. Packaging selection does not affect electrical or mechanical compatibility; it is determined by procurement and inventory management requirements.

Q: Can I mix different substitute parts in the same design?

A: Yes, provided all parts meet your application's electrical and mechanical requirements. However, for consistency in manufacturing, testing, and field service, using a single part number across a design is recommended. If mixing is necessary, ensure all selected parts maintain identical pitch (0.100"), position count (2), current rating (3A per contact), and operating temperature range compatibility.

Q: What is the difference between BERGSTIK® and BERGSTIK® II series?

A: Both series maintain identical electrical and mechanical specifications for the 2-position 0.100" pitch configuration. BERGSTIK® II is the newer series designation. The 68000-102HLF (BERGSTIK® II) is the recommended direct replacement for the obsolete 68000-102 (BERGSTIK® II). The 54101-G0502LF and 77311-101-02LF (BERGSTIK® series) are functionally equivalent alternatives with different series designations.
