Amphenol ICC 67999-450HLF Equivalent & Substitute Parts

Part Overview

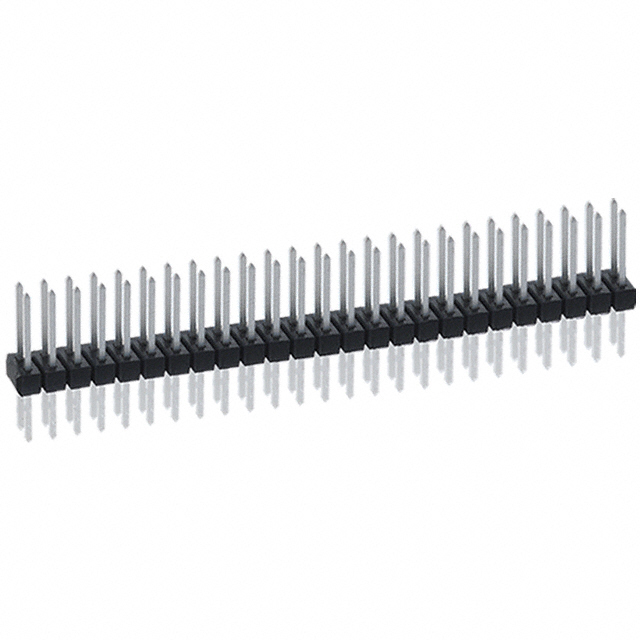

The Amphenol ICC 67999-450HLF is a rectangular connector header with 50 positions at 2.54mm pitch, designed for through-hole board-to-board applications. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The BERGSTIK® II series connector features unshrouded male pins with solder termination and push-pull fastening, suitable for standard PCB assembly processes.

Key Parameters

Parameter	Value
Manufacturer Part Number	67999-450HLF
Manufacturer	Amphenol ICC (FCI)
Series	BERGSTIK® II
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Number of Positions	50
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Shape	Square
Insulation Height	0.100" (2.54mm)
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the 67999-450HLF is determined by strict adherence to the following electrical and mechanical parameters:

Critical Matching Parameters:

Number of positions: 50
Number of rows: 2
Pitch - mating: 0.100" (2.54mm)
Row spacing - mating: 0.100" (2.54mm)
Connector type: Header
Contact type: Male Pin
Mounting type: Through Hole
Termination: Solder
Fastening type: Push-Pull
Contact shape: Square
Insulation height: 0.100" (2.54mm)
Material flammability rating: UL94 V-0
Insulation color: Black

Allowable Variations:

Contact length (mating and post) may vary within mechanical compatibility constraints
Overall contact length may vary
Contact finish composition (tin, tin-lead, gold) may differ
Contact finish thickness may vary
Insulation material composition may differ (PBT, PCT, LCP)
Operating temperature range may differ
Current rating may differ
RoHS and REACH compliance status may differ
Product status may transition from obsolete to active

Parameter Comparison

Parameter	67999-450HLF	68690-450HLF	7-146252-5	929710-01-25	929710-01-25-RK	929710-06-25-RK	929710-10-25	929710-10-25-RK	929710-11-25	929710-11-25-RK	929715-01-25-EU
Manufacturer	Amphenol ICC	Amphenol ICC	TE Connectivity	3M	3M	3M	3M	3M	3M	3M	3M
Series	BERGSTIK® II	BERGSTIK® II	AMPMODU Mod II	929	929	929	929	929	929	929	929
Product Status	Obsolete	Active	Active	Discontinued at DiGi Electronics	Active	Active	Discontinued at DiGi Electronics	Active	Active	Active	Active
Number of Positions	50	50	50	50	50	50	50	50	50	50	50
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)
Contact Length - Post	0.130" (3.30mm)	0.115" (2.92mm)	0.125" (3.18mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.710" (18.03mm)	0.175" (4.45mm)	0.175" (4.45mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.110" (2.79mm)
Overall Contact Length	0.548" (13.92mm)	0.533" (14.65mm)	0.533" (14.65mm)	0.528" (13.42mm)	0.528" (13.42mm)	1.128" (28.65mm)	0.593" (15.07mm)	0.593" (15.07mm)	0.543" (13.80mm)	0.543" (13.80mm)	0.528" (13.42mm)
Insulation Height	0.100" (2.54mm)	0.100" (2.54mm)	0.090" (2.29mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Tin	Tin	Gold	Tin-Lead	Tin	Tin	Tin-Lead	Tin	Tin-Lead	Tin	Gold
Contact Finish Thickness - Mating	100.0µin (2.54µm)	100.0µin (2.54µm)	15.0µin (0.38µm)	100.0µin (2.54µm)	200.0µin (5.08µm)	200.0µin (5.08µm)	100.0µin (2.54µm)	200.0µin (5.08µm)	100.0µin (2.54µm)	200.0µin (5.08µm)	10.0µin (0.25µm)
Contact Material	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Material	Not specified	Not specified	Liquid Crystal Polymer (LCP)	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)	Polycyclohexylenedimethylene Terephthalate (PCT)	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)	Polycyclohexylenedimethylene Terephthalate (PCT)
Operating Temperature	Not specified	-65°C ~ 130°C	-65°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Current Rating (Amps)	Not specified	3A	3A	2.5A	2.5A	2.5A	2.5A	2.5A	2.5A	2.5A	2.5A
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
RoHS Status	Not specified	RoHS Compliant	RoHS Compliant	RoHS non-compliant	RoHS Compliant	RoHS Compliant	RoHS non-compliant	RoHS Compliant	RoHS non-compliant	RoHS Compliant	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	Not Applicable	Not Applicable	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

Primary Recommendation: Amphenol ICC 68690-450HLF

The 68690-450HLF is the direct successor to the obsolete 67999-450HLF within the same manufacturer and series. This part maintains identical mechanical and electrical specifications while offering active product status, RoHS compliance, and an extended operating temperature range (-65°C to 130°C). The 68690-450HLF is the preferred choice for direct replacement in new designs and production continuity.

Secondary Recommendations: 3M 929710 Series

The 3M 929710 series provides multiple contact length options to accommodate different PCB stack-up requirements:

929710-01-25-RK: Standard contact length (0.110" post), RoHS compliant, active status. Suitable for standard board-to-board spacing.
929710-10-25-RK: Extended contact length (0.175" post), RoHS compliant, active status. Suitable for applications requiring greater mating depth.
929710-11-25-RK: Intermediate contact length (0.125" post), RoHS compliant, active status. Suitable for moderate stack-up applications.
929710-06-25-RK: Extended post length (0.710"), RoHS compliant, active status. Suitable for specialized applications with significant PCB separation.

All 3M 929710-RK variants feature tin contact finish with enhanced thickness (200.0µin), PCT insulation material, and RoHS compliance.

Alternative: TE Connectivity 7-146252-5

The TE Connectivity 7-146252-5 (AMPMODU Mod II series) offers gold-plated mating contacts (15.0µin thickness) with LCP insulation material. This part is suitable for applications requiring enhanced corrosion resistance and is RoHS compliant with active product status. Operating temperature range is -65°C to 105°C with 3A current rating.

Alternative: 3M 929715-01-25-EU

The 929715-01-25-EU features gold plating on both mating and post contacts (10.0µin thickness) with PCT insulation. This variant is RoHS compliant and active, suitable for applications requiring superior contact reliability and corrosion resistance.

Discontinued Parts: 929710-01-25 and 929710-10-25

These 3M variants are discontinued at DiGi Electronics and feature tin-lead contact finish with PBT insulation. RoHS non-compliant status and discontinuation status make these unsuitable for new designs. Use only for legacy system maintenance where RoHS compliance is not required.

Frequently Asked Questions (FAQ)

Q: Can I use any of these substitute parts interchangeably with the 67999-450HLF?

A: All listed substitute parts share identical mating pitch (0.100"), position count (50), row configuration (2), and fastening mechanism (push-pull). Mechanical compatibility is confirmed for board-to-board mating. However, contact post length varies across substitutes, which affects overall connector height. Verify PCB stack-up clearance before selection.

Q: What is the difference between the 929710-01-25-RK and 929710-10-25-RK?

A: Both are 3M 929710 series connectors with identical mating characteristics. The primary difference is contact post length: 929710-01-25-RK has 0.110" (2.79mm) post length, while 929710-10-25-RK has 0.175" (4.45mm) post length. Select based on required PCB separation distance.

Q: Is RoHS compliance required for my application?

A: RoHS compliance status varies across substitutes. The 68690-450HLF, 7-146252-5, 929710-01-25-RK, 929710-06-25-RK, 929710-10-25-RK, 929710-11-25-RK, and 929715-01-25-EU are all RoHS compliant. The 929710-01-25, 929710-10-25, and 929710-11-25 are RoHS non-compliant. Verify regulatory requirements for your end application.

Q: What is the difference between tin and gold contact finishes?

A: Tin-finished contacts (929710 series) provide standard corrosion resistance and cost efficiency. Gold-finished contacts (7-146252-5 and 929715-01-25-EU) offer enhanced corrosion resistance and lower contact resistance, suitable for high-reliability applications. Gold finish thickness varies: 7-146252-5 uses 15.0µin, while 929715-01-25-EU uses 10.0µin.

Q: What packaging options are available?

A: The 68690-450HLF is supplied in bag packaging. The 7-146252-5, 929710 series, and 929715-01-25-EU are supplied in bulk packaging. The original 67999-450HLF packaging is not specified.

Q: What is the operating temperature range for each substitute?

A: The 68690-450HLF operates from -65°C to 130°C. The 7-146252-5 operates from -65°C to 105°C. All 3M 929710 and 929715 series operate from -40°C to 105°C. Select based on thermal environment requirements.

Q: Are there current rating differences between substitutes?

A: The 68690-450HLF and 7-146252-5 are rated for 3A. All 3M 929710 and 929715 series are rated for 2.5A. Verify current requirements for your application.

Q: What is the difference between PBT and PCT insulation materials?

A: PBT (Polybutylene Terephthalate) is a standard engineering plastic used in 929710-01-25, 929710-10-25, and 929710-11-25. PCT (Polycyclohexylenedimethylene Terephthalate) is a higher-performance variant used in 929710-01-25-RK, 929710-06-25-RK, 929710-10-25-RK, 929710-11-25-RK, and 929715-01-25-EU. LCP (Liquid Crystal Polymer) is used in 7-146252-5. All materials meet UL94 V-0 flammability requirements.
