Amphenol ICC 67997-410H Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 67997-410H is a vertical rectangular connector header featuring 10 positions arranged in 2 rows with 0.100" (2.54mm) pitch spacing. This through-hole solder-terminated component is part of the BERGSTIK® II series and is designed for board-to-board applications. The part is currently obsolete, making equivalent substitutes necessary for new designs and ongoing production requirements. Substitute parts must maintain compatibility across pitch spacing, position count, row configuration, mounting type, and termination method while meeting applicable compliance standards.

Key Parameters

Parameter	Specification
Manufacturer Part Number	67997-410H
Manufacturer	Amphenol ICC (FCI)
Category	Rectangular Connectors
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish - Mating	Tin
Operating Temperature	-65°C ~ 130°C
Current Rating	3A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the 67997-410H is determined by strict adherence to the following core parameters:

Critical Matching Parameters:

Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 10
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Connector Type: Header
Contact Type: Male Pin
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Material Flammability Rating: UL94 V-0

All substitute parts listed below meet these critical parameters. Variations in contact length, contact finish, insulation material, and contact material are permitted within the scope of functional equivalence, provided the mating interface dimensions and electrical characteristics remain compatible. Contact shape variations (square to circular) are acceptable where dimensional compatibility is maintained.

Parameter Comparison

Parameter	67997-410H (Main)	0010897101	0010897102	0751020043	0879140001	0879141026	450-80-210-00-001101	5-146254-5	802-10-010-10-001000	HMTSW-105-06-T-D-174	HMTSW-105-06-T-D-200
Manufacturer	Amphenol ICC	Molex	Molex	Molex	Molex	Molex	Preci-Dip	TE Connectivity	Mill-Max	Samtec	Samtec
Series	BERGSTIK® II	C-Grid 70280	C-Grid 70280	C-Grid 75102	C-Grid 87914	C-Grid 87914	450	AMPMODU Mod II	802	Flex Stack, HMTSW	Flex Stack, HMTSW
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	10	10	10	10	10	10	10	10	10	10	10
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Press-Fit, Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Contact Shape	Square	Square	Square	Square	Square	Square	Circular	Square	Circular	Square	Square
Contact Finish - Mating	Tin	Tin	Gold	Gold	Gold	Tin	Tin	Tin	Gold	Tin	Tin
Contact Material	Phosphor Bronze	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Brass	Copper Alloy	Brass Alloy	Phosphor Bronze	Phosphor Bronze
Current Rating (Amps)	3A	—	—	—	—	—	3A	3A	—	3A	3A
Operating Temperature	-65°C ~ 130°C	—	—	—	—	—	-55°C ~ 125°C	-65°C ~ 105°C	—	-55°C ~ 105°C	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	—	UL94 V-0	UL94 V-0
RoHS Status	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Obsolete	Active	Active	Discontinued at DiGi Electronics	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

Active Product Substitutes (Recommended for New Designs):

The following parts are currently in active production status and represent the primary substitution options:

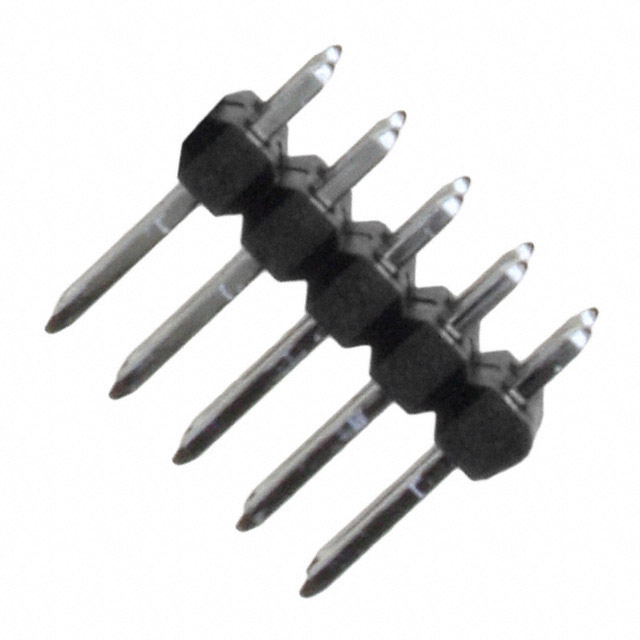

Molex C-Grid 70280 Series (0010897101, 0010897102): Both variants maintain full dimensional and electrical compatibility with the 67997-410H. Part 0010897101 features tin mating contact finish, while 0010897102 provides gold mating contact finish. Both are ROHS3 compliant and feature LCP glass-filled insulation. These parts are available in bulk packaging with substantial inventory levels.

Molex C-Grid 87914 Series (0879140001, 0879141026): Available in tray packaging, these parts offer alternative contact length specifications. Part 0879140001 features gold mating contact finish with 0.235" (5.97mm) mating contact length, while 0879141026 provides tin mating contact finish with 0.276" (7.00mm) mating contact length. Both are ROHS3 compliant and suitable for automotive, general purpose, lighting, medical, and telecommunications applications.

TE Connectivity AMPMODU Mod II (5-146254-5): This part provides direct functional equivalence with tin mating contact finish and copper alloy contacts. Operating temperature range extends to -65°C ~ 105°C. ROHS3 compliant with LCP insulation material. Highest inventory availability among active substitutes.

Samtec Flex Stack HMTSW Series (HMTSW-105-06-T-D-174, HMTSW-105-06-T-D-200): These parts feature phosphor bronze contacts matching the original 67997-410H material composition. Both variants are ROHS3 compliant with LCP insulation and 3A current rating. Operating temperature range -55°C ~ 105°C. Shorter overall contact length (0.300") compared to the original part.

Preci-Dip 450 Series (450-80-210-00-001101): Offers circular contact geometry with brass material composition. ROHS3 compliant with operating temperature -55°C ~ 125°C and 150VDC voltage rating. Suitable for applications requiring alternative contact geometry.

Mill-Max 802 Series (802-10-010-10-001000): Features circular contact geometry with brass alloy composition and gold finish. ROHS3 compliant. Suitable for applications where circular contact geometry is acceptable.

Discontinued Product Substitute (Limited Availability):

Molex C-Grid 75102 (0751020043): Discontinued at DiGi Electronics but available in limited inventory. Features press-fit and solder termination options with gold mating contact finish. ROHS3 compliant. Longer overall contact length (0.517") compared to the original part.

Compliance Considerations:

The original 67997-410H is RoHS non-compliant. All listed substitute parts are ROHS3 compliant, making them suitable for applications subject to RoHS directives. All substitute parts maintain UL94 V-0 flammability rating except Mill-Max 802-10-010-10-001000, which does not specify flammability rating.

Frequently Asked Questions (FAQ)

Q: Can I directly replace the 67997-410H with any of the listed substitute parts?

A: Yes, all listed substitute parts maintain the critical mating parameters: 0.100" (2.54mm) pitch, 10 positions in 2 rows with 0.100" (2.54mm) row spacing, through-hole solder termination, and push-pull fastening. Variations in contact length, contact finish, and insulation material do not affect functional compatibility at the mating interface.

Q: What is the difference between tin and gold mating contact finishes?

A: Tin contact finish (0010897101, 0879141026, 5-146254-5, HMTSW series) provides standard electrical conductivity and is suitable for general applications. Gold contact finish (0010897102, 0879140001, 0751020043, 802-10-010-10-001000) offers enhanced corrosion resistance and is preferred for applications requiring extended shelf life or exposure to corrosive environments. Both finishes are electrically compatible with the original part.

Q: Why do some substitute parts have different contact lengths?

A: Contact length variations accommodate different PCB thicknesses and mating depths. The critical parameter is the mating contact length (the portion that engages with the mating connector), which remains compatible across all substitutes. Post length variations allow for different solder joint depths on the PCB.

Q: Are the Samtec HMTSW parts suitable replacements despite their shorter overall contact length?

A: Yes. The Samtec HMTSW series maintains the critical mating contact length specification and all required electrical parameters. The shorter overall contact length (0.300") results from a shorter post length, which is acceptable for standard PCB applications. Verify post length compatibility with your specific PCB thickness and solder joint requirements.

Q: What is the significance of the contact shape difference (square vs. circular)?

A: Contact shape does not affect electrical compatibility. Square contacts (original part and most substitutes) and circular contacts (Preci-Dip 450, Mill-Max 802) both provide equivalent electrical performance. Selection depends on PCB pad design and mechanical preference. Verify that your PCB pads accommodate the selected contact geometry.

Q: Which substitute part should I select for new designs?

A: For new designs, select from active product status parts: Molex C-Grid 70280 (0010897101 or 0010897102), Molex C-Grid 87914 (0879140001 or 0879141026), TE Connectivity 5-146254-5, or Samtec HMTSW series. These parts offer the longest product lifecycle and highest availability. Consider ROHS3 compliance requirements and operating temperature range for your specific application.

Q: Is the original 67997-410H RoHS compliance status a concern?

A: The original part is RoHS non-compliant. If your application or market requires RoHS compliance, all listed substitute parts are ROHS3 compliant and suitable for replacement. Verify compliance requirements with your design specifications and regulatory obligations.

Q: Can I use parts with different contact materials (phosphor bronze, copper alloy, brass)?

A: Yes. Phosphor bronze (original part, Samtec HMTSW), copper alloy (Molex, TE Connectivity), and brass (Preci-Dip, Mill-Max) all provide equivalent electrical conductivity and are functionally interchangeable. Material selection does not affect mating compatibility or electrical performance.

Q: What packaging options are available?

A: Substitute parts are available in bulk packaging (Molex 0010897101, 0010897102, Preci-Dip 450, TE Connectivity 5-146254-5, Mill-Max 802) and tray packaging (Molex 0879140001, 0879141026). Bulk packaging is suitable for high-volume production, while tray packaging may be preferred for smaller quantities or specific handling requirements.
