Part Overview

The Amphenol ICC 67095-009LF is an active rectangular connector header designed for through-hole, right-angle board-to-cable/wire applications. This 9-position shrouded header operates within the -25°C to 85°C temperature range and is rated for 2A DC current. The connector features a 0.098" (2.50mm) pitch with tin-plated brass contacts and is constructed from glass-filled polybutylene terephthalate (PBT) insulation material. Finding equivalent substitute parts becomes necessary when addressing supply chain constraints, lead time requirements, or design flexibility needs while maintaining electrical and mechanical compatibility.

Substiute Parts

67095-009LF

Amphenol ICC (FCI)In Stock: 70267095-009LF Datasheet

Current PartRFQ

S9B-XH-A

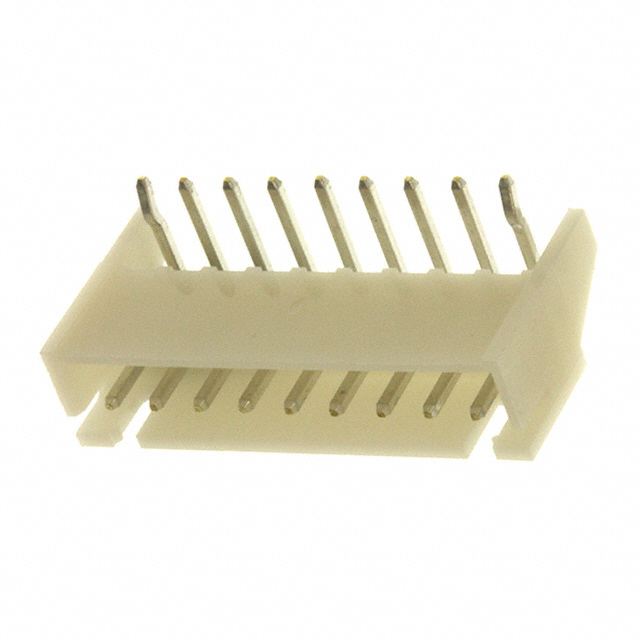

JST Sales America Inc.In Stock: 15988S9B-XH-A Datasheet

MFR RecommendedRFQ

S9B-XH-A-1

JST Sales America Inc.In Stock: 8458S9B-XH-A-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 67095-009LF is determined by strict alignment with the following critical parameters:

• Connector Type & Configuration: Header, male pin contact, 9-position, shrouded 4-wall design
• Pitch Specification: 0.098" (2.50mm) mating pitch
• Mounting & Orientation: Through-hole, right-angle mounting
• Electrical Performance: Current and voltage ratings must meet or exceed the original specification
• Material Compliance: UL94 V-0 flammability rating and operating temperature range (-25°C ~ 85°C)
• Contact Material & Finish: Brass with tin plating for corrosion resistance
• Termination Compatibility: Solder termination capability

The JST Sales America Inc. S9B-XH-A and S9B-XH-A-1 connectors satisfy all substitution criteria. Both parts maintain identical pitch, position count, shrouding configuration, and mounting type. The XH series headers provide enhanced current rating (3A versus 2A) and voltage rating (250V), ensuring superior electrical performance margins. Both substitute parts are active products with UL94 V-0 compliance and operate within the required temperature range.

Parameter Comparison

Engineering Selection Recommendations

Both JST XH series connectors (S9B-XH-A and S9B-XH-A-1) are qualified substitutes for the Amphenol ICC 67095-009LF based on electrical and mechanical parameter alignment. Selection between these options should consider the following factors:

Compliance & Certification: All three parts maintain UL94 V-0 flammability compliance and operate within the -25°C to 85°C temperature specification. The JST parts carry ROHS3 compliance certification, providing additional regulatory assurance for applications subject to RoHS directives.

Electrical Performance: The JST XH series provides superior electrical margins with 3A current rating and 250V voltage rating compared to the 2A DC specification of the original part. This enhanced performance supports applications with higher current demands or voltage requirements.

Product Availability & Supply: Both JST substitute parts maintain active product status with substantial inventory levels (15,955 Pcs for S9B-XH-A and 8,447 Pcs for S9B-XH-A-1), supporting consistent supply chain access compared to the original 679 Pcs inventory.

Mechanical Compatibility: Identical pitch (2.50mm), position count (9), mounting type (through-hole right-angle), and shrouding configuration (4-wall) ensure direct mechanical interchangeability. The detent lock fastening mechanism on JST parts provides enhanced mating security compared to the push-pull design of the original.

Termination Flexibility: JST XH series supports both press-fit and solder termination, offering greater assembly process flexibility than the solder-only termination of the original part.

Frequently Asked Questions (FAQ)

Q: Are the JST S9B-XH-A and S9B-XH-A-1 connectors mechanically compatible with the Amphenol ICC 67095-009LF?

A: Yes. Both JST connectors maintain identical mating pitch (0.098" / 2.50mm), position count (9), shrouding configuration (4-wall), and through-hole right-angle mounting orientation. Direct mechanical interchangeability is confirmed.

Q: What is the difference between the S9B-XH-A and S9B-XH-A-1 models?

A: Both models are functionally equivalent with identical electrical specifications, pitch, position count, and mounting configuration. The designation difference reflects internal JST product line management. Selection between these parts should be based on inventory availability and lead time requirements.

Q: Can the JST XH series connectors handle the same current as the original Amphenol part?

A: The JST XH series is rated for 3A, exceeding the 2A DC rating of the original part. This provides enhanced current capacity and performance margin for the application.

Q: Are there any insulation material differences that affect compatibility?

A: The original part uses glass-filled polybutylene terephthalate (PBT), while the JST substitutes use polyamide (PA66) nylon 6/6. Both materials maintain UL94 V-0 flammability compliance and operate within the -25°C to 85°C temperature range. Material selection should be evaluated based on specific application environmental exposure and chemical compatibility requirements.

Q: Do the JST connectors support solder termination like the original part?

A: Yes. The JST XH series supports both press-fit and solder termination, providing compatibility with existing solder-based assembly processes while offering additional press-fit assembly flexibility.

Q: What is the inventory status of these substitute parts?

A: Both JST parts maintain active product status with substantial inventory: S9B-XH-A (15,955 Pcs) and S9B-XH-A-1 (8,447 Pcs), compared to 679 Pcs for the original Amphenol part.
