Amphenol ICC 66971-102 Position Shunt Connector Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 66971-102 is a position shunt connector classified as a CONN SHUNT component. This connector is designed for use in applications requiring reliable electrical bridging and signal routing. The product is currently listed as obsolete, making identification of functionally equivalent alternatives essential for system maintenance, repair, and legacy equipment support.

Substiute Parts

66971-102

Amphenol ICC (FCI)In Stock: 105766971-102 Datasheet

Current PartRFQ

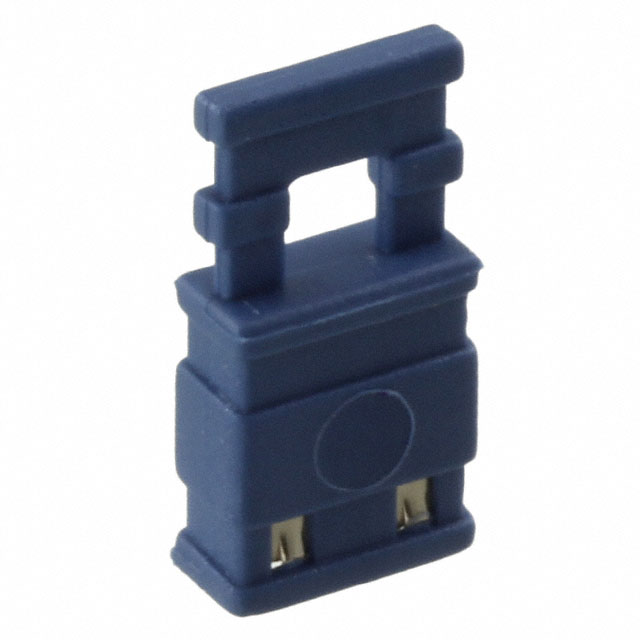

M7687-05

Harwin Inc.In Stock: 22447M7687-05 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Harwin Inc. M7687-05 is identified as a direct substitute for the Amphenol ICC 66971-102 based on the following substitution criteria:

Functional Equivalence Parameters:

• Both components function as position shunt connectors for electrical bridging applications
• Both support 2-position (1 x 2) connector configurations
• Both utilize 0.100" (2.54mm) pitch spacing, the industry standard for shunt connectors
• Both feature female socket contacts with gold plating for reliable electrical connection
• Both are rated for 250V operation and 3A current capacity
• Both maintain MSL 1 (Unlimited) moisture sensitivity classification

Compliance Considerations:

• The M7687-05 is RoHS3 compliant and REACH unaffected, addressing modern regulatory requirements
• The original 66971-102 is RoHS non-compliant, reflecting its obsolete status

Parameter Comparison

Engineering Selection Recommendations

The Harwin Inc. M7687-05 serves as the direct functional equivalent for the obsolete Amphenol ICC 66971-102. Selection of the M7687-05 is supported by:

• Product Availability: The M7687-05 is currently in active production with 22,362 units in stock, ensuring supply chain continuity for legacy system support and new applications.
• Regulatory Compliance: The M7687-05 achieves RoHS3 compliance and REACH unaffected status, meeting current environmental and safety standards for new equipment designs and system upgrades.
• Electrical Specifications: Both components share identical MSL 1 classification and EAR99 export control designation, with the M7687-05 providing specified voltage (250V) and current (3A) ratings suitable for standard shunt connector applications.
• Mechanical Compatibility: The 0.100" (2.54mm) pitch and 2-position configuration of the M7687-05 align with standard shunt connector form factors used in legacy Amphenol ICC designs.

Frequently Asked Questions (FAQ)

Q: Can the Harwin M7687-05 directly replace the Amphenol ICC 66971-102 in existing designs?

A: Yes. Both components function as position shunt connectors with identical pitch spacing (0.100" / 2.54mm), position count (2-position), and electrical ratings (250V, 3A). The M7687-05 maintains the same MSL 1 classification and EAR99 export control status as the original part.

Q: What is the primary reason for substitution?

A: The Amphenol ICC 66971-102 is obsolete and no longer manufactured. The Harwin M7687-05 is an active production equivalent that provides functional compatibility while offering improved regulatory compliance (RoHS3, REACH unaffected).

Q: Are there packaging differences between these components?

A: The original 66971-102 packaging specification is not provided in available documentation. The M7687-05 is supplied in bulk packaging. Verify packaging requirements for your specific application before procurement.

Q: Does the blue color of the M7687-05 affect electrical performance?

A: No. Color is a visual identification feature only and does not impact electrical function, voltage rating, current capacity, or contact performance. The blue housing is a standard identifier for the M7687 series.

Q: Are both components suitable for new designs?

A: The M7687-05 is recommended for new designs. It is in active production, RoHS3 compliant, and REACH unaffected. The 66971-102 is obsolete and should not be specified for new applications.

Q: What is the moisture sensitivity level for both parts?

A: Both components are rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or soldering processes.
