Part Overview

The TE Connectivity AMP Connectors 6-6605802-1 is a 1 Port RJ45 Through Hole 10/100 Base-T modular connector with AutoMDIX functionality, 90° angle orientation, and solder termination. This connector is classified as obsolete, necessitating identification of active equivalent and substitute parts for ongoing design requirements and procurement needs. The part features shielded construction with EMI finger protection, board lock capability, and decoupling capacitance integrated into the design.

Key Parameters

Parameter	Value
Connector Type	RJ45
Number of Ports	1
Applications	10/100 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Number of Cores per Jack	4
Shielding	Shielded, EMI Finger
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Operating Temperature	0°C ~ 70°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the obsolete 6-6605802-1 is determined by strict alignment of the following electrical and mechanical parameters:

Primary Substitution Criteria:

Connector Type: RJ45
Number of Ports: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Contact Finish: Gold
Contact Finish Thickness: 50.0µin (1.27µm)

Secondary Compatibility Parameters:

Operating Temperature range compatibility
Tab Direction (Up vs. Down)
Height Above Board specifications
LED Color configuration
Features (Board Lock vs. Board Guide)
Contact Material (Phosphor Bronze vs. Copper Alloy)
Shield Material (Brass vs. Copper Alloy)
Housing Material composition

Substitute parts are grouped based on full alignment with primary criteria. Variations in secondary parameters are noted to enable informed selection based on specific application requirements.

Parameter Comparison

Parameter	6-6605802-1 (Main)	5-6605758-7	SI-60001-F	SI-60005-F	SI-60024-F	SI-60062-F	SI-60110-F	SI-60116-F	SI-60118-F
Manufacturer	TE Connectivity	TRP Connector B.V.	Bel Fuse Inc.	Bel Fuse Inc.	Bel Fuse Inc.	Bel Fuse Inc.	Bel Fuse Inc.	Bel Fuse Inc.	Bel Fuse Inc.
Connector Type	RJ45	RJ45	RJ45	RJ45	RJ45	RJ45	RJ45	RJ45	RJ45
Number of Ports	1	1	1	1	1	1	1	1	1
Applications	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Orientation	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Number of Cores per Jack	4	4	4	4	4	4	4	4	4
Shielding	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	50.0µin (1.27µm)	50.0µin (1.27µm)	50.0µin (1.27µm)	50.0µin (1.27µm)	50.0µin (1.27µm)	50.0µin (1.27µm)	50.0µin (1.27µm)	50.0µin (1.27µm)	50.0µin (1.27µm)
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	Not applicable	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
REACH Status	Vendor Undefined	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected
Operating Temperature	0°C ~ 70°C	0°C ~ 70°C	Not specified	Not specified	Not specified	Not specified	0°C ~ 70°C	0°C ~ 70°C	-40°C ~ 85°C
LED Color	Green - Green	Green - Green	Green - Green	Green - Yellow	Green, Yellow - Green, Yellow	Yellow - Green	Green - Yellow	Green - Yellow	Green - Green
Tab Direction	Up	Up	Down	Down	Down	Down	Down	Down	Down
Features	Board Lock, Decoupling Capacitance	Board Lock, Decoupling Capacitance	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Lock
Contact Material	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Shield Material	Brass	Brass	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Housing Material	Polyethylene Terephthalate (PET), Polyester	Polyethylene Terephthalate (PET), Polyester	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic

Engineering Selection Recommendations

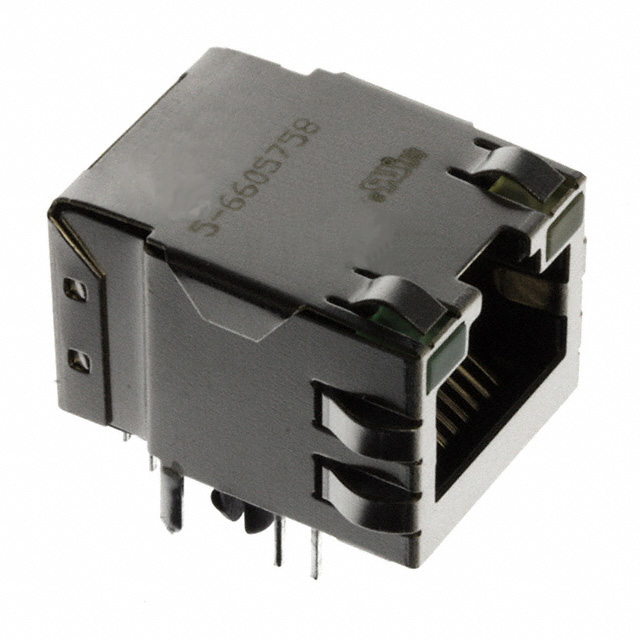

Primary Substitute: 5-6605758-7 (TRP Connector B.V.)

The 5-6605758-7 represents the closest functional equivalent to the obsolete 6-6605802-1. This part maintains identical electrical and mechanical specifications across all primary substitution criteria, including connector type, port configuration, application support, mounting method, orientation, and termination type. The 5-6605758-7 is classified as Active and carries ROHS3 compliance with REACH Unaffected status, providing regulatory alignment for new designs. The part retains the same operating temperature range (0°C ~ 70°C) and identical contact finish specifications. The primary distinction is the Tab Direction (Up vs. Down) and feature set (Board Lock with Decoupling Capacitance vs. Board Lock alone), which may require PCB layout evaluation.

Secondary Substitutes: Bel Fuse Inc. SI-60000 Series

The Bel Fuse Inc. MagJack® ST SI-60000 series parts (SI-60001-F, SI-60005-F, SI-60024-F, SI-60062-F, SI-60110-F, SI-60116-F, SI-60118-F) satisfy all primary electrical and mechanical substitution criteria. All parts are Active with ROHS3 compliance and REACH Unaffected status. These parts feature Copper Alloy contact and shield materials with Thermoplastic housing, differing from the original Phosphor Bronze and Brass construction. Key distinctions include:

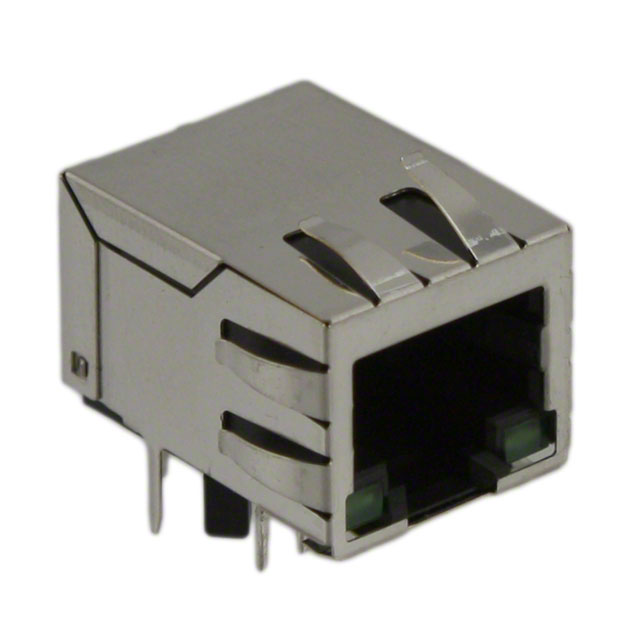

SI-60001-F, SI-60024-F, SI-60110-F, SI-60116-F, SI-60118-F: Full AutoMDIX support with Board Guide or Board Lock features

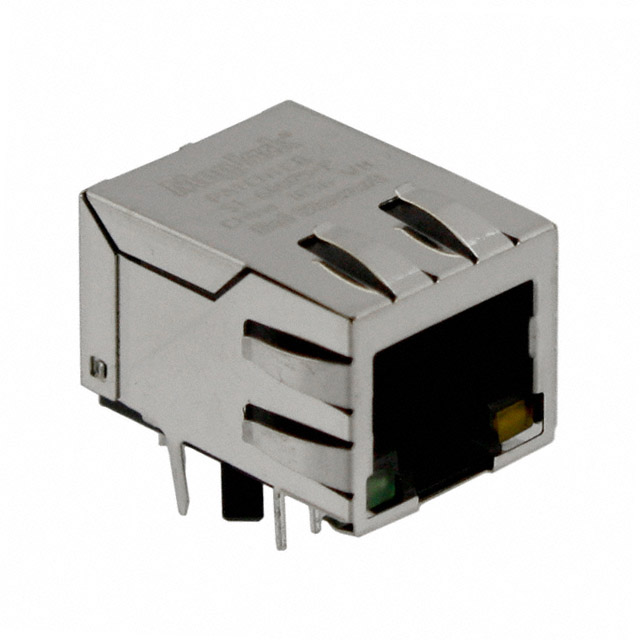

SI-60005-F: AutoMDIX support with Green-Yellow LED configuration
SI-60062-F: AutoMDIX support with Yellow-Green LED configuration and 0.545" height specification
SI-60118-F: Extended operating temperature range (-40°C ~ 85°C) with Board Lock feature

All Bel Fuse substitutes feature Tab Direction Down, requiring PCB design consideration relative to the original Up orientation.

Regulatory Compliance:

All substitute parts carry ROHS3 compliance and REACH Unaffected status, meeting current regulatory requirements for new product designs. The original 6-6605802-1 carries "Not applicable" RoHS status and "Vendor Undefined" REACH status, indicating its obsolete classification predates current compliance frameworks.

Frequently Asked Questions (FAQ)

Q: Can SI-60001-F, SI-60005-F, or SI-60024-F be used as direct replacements for 6-6605802-1?

A: These parts satisfy all primary electrical and mechanical substitution criteria: RJ45 connector type, 1 port, 10/100 Base-T with AutoMDIX, through-hole mounting, 90° right angle orientation, solder termination, 4 cores, shielded construction with EMI finger, gold contact finish at 50.0µin thickness, and 4-core jack configuration. However, these parts feature Tab Direction Down (versus Up on the original), Board Guide features (versus Board Lock with Decoupling Capacitance), and Copper Alloy contact/shield materials (versus Phosphor Bronze and Brass). PCB layout compatibility must be evaluated for Tab Direction orientation.

Q: What is the difference between SI-60110-F and SI-60116-F?

A: Both parts are functionally equivalent with identical electrical specifications and AutoMDIX support. The primary difference is packaging: SI-60110-F is supplied in Tray packaging, while SI-60116-F packaging is not specified. Both maintain identical operating temperature range (0°C ~ 70°C), Green-Yellow LED configuration, and Board Guide features.

Q: Why does SI-60118-F have an extended operating temperature range?

A: SI-60118-F is specified for -40°C ~ 85°C operation, compared to 0°C ~ 70°C on the original 6-6605802-1 and most substitute parts. This extended range accommodates industrial and automotive applications requiring broader thermal performance. Selection of SI-60118-F is appropriate only when the extended temperature specification is required by application design parameters.

Q: Are there differences in LED color configurations among the substitute parts?

A: Yes. The original 6-6605802-1 features Green-Green LED configuration. Substitute parts offer multiple LED options: SI-60001-F and SI-60118-F provide Green-Green; SI-60005-F and SI-60110-F and SI-60116-F provide Green-Yellow; SI-60024-F provides Green/Yellow-Green/Yellow dual configuration; SI-60062-F provides Yellow-Green. LED color selection depends on application-specific status indication requirements and should be evaluated against system design specifications.

Q: What is the significance of the Tab Direction difference (Up vs. Down)?

A: Tab Direction refers to the orientation of the connector retention tab on the PCB. The original 6-6605802-1 and 5-6605758-7 feature Tab Direction Up, while all Bel Fuse SI-60000 series parts feature Tab Direction Down. This difference affects PCB layout and connector mounting orientation. Designs utilizing the original Up orientation require either PCB redesign or selection of 5-6605758-7 to maintain identical mechanical interface.

Q: What is the difference between Board Lock and Board Guide features?

A: Board Lock provides mechanical retention of the connector to the PCB through a locking mechanism, while Board Guide provides alignment without locking retention. The original 6-6605802-1 includes Board Lock with Decoupling Capacitance. Most Bel Fuse substitutes feature Board Guide only, except SI-60076-F and SI-60118-F which include Board Lock. Feature selection depends on application requirements for connector retention and decoupling capacitance integration.

Q: Are the contact material differences (Phosphor Bronze vs. Copper Alloy) significant for substitution?

A: Both Phosphor Bronze and Copper Alloy contact materials with gold finish at 50.0µin thickness meet the electrical and mechanical requirements for 10/100 Base-T RJ45 applications. The material difference does not affect functional compatibility. However, material selection may influence contact resistance characteristics and long-term reliability in specific environmental conditions. Designs sensitive to contact material properties should evaluate material specifications against application requirements.

Q: Which substitute part should be selected for new designs?

A: For new designs, 5-6605758-7 (TRP Connector B.V.) is the recommended primary selection due to closest functional equivalence to the original 6-6605802-1, including identical Tab Direction (Up), Board Lock feature with Decoupling Capacitance, and matching operating temperature range. If Tab Direction Down is acceptable for PCB layout, SI-60118-F (Bel Fuse Inc.) offers extended operating temperature range (-40°C ~ 85°C) with Board Lock retention for applications requiring broader thermal performance. All substitute parts carry current regulatory compliance (ROHS3, REACH Unaffected).
