6620004-1 Equivalent & Substitute Parts Reference

Part Overview

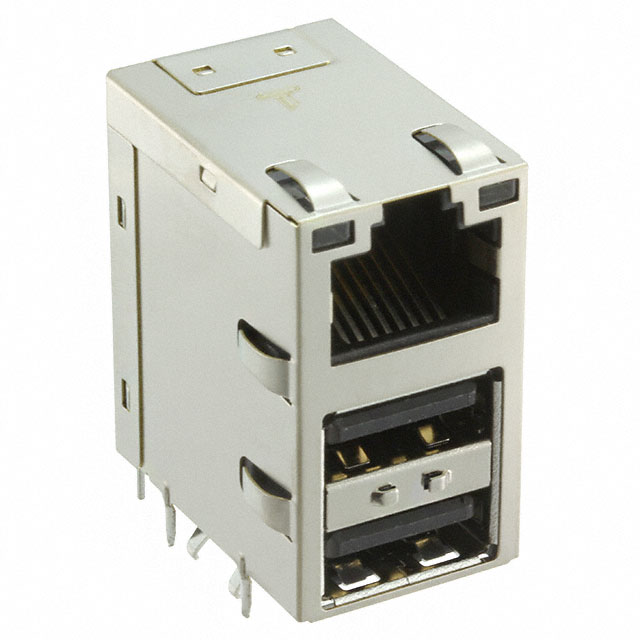

The 6620004-1 is a 1 Port RJ45 with USB A Dual connector manufactured by TRP Connector B.V., designed for 10/100 Base-T Ethernet applications. This modular connector features through-hole solder termination with a 90° right-angle orientation and integrated LED indicators (Green, Orange-Yellow). The part is currently Active in product status and maintains full RoHS3 compliance with MSL Level 1 rating, making it suitable for standard industrial and commercial networking applications where reliable Ethernet connectivity is required.

Substiute Parts

6620004-1

TRP Connector B.V.In Stock: 8946620004-1 Datasheet

Current PartRFQ

08C2-1X1T-36

Bel Fuse Inc.In Stock: 433808C2-1X1T-36 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 08C2-1X1T-36 (Bel Fuse Inc.) qualifies as an equivalent based on the following critical parameters that determine functional interchangeability:

Core Compatibility Parameters:

• Connector Type: RJ45 with USB A, Dual (identical)
• Number of Ports: 1 (identical)
• Applications: 10/100 Base-T (compatible; substitute adds AutoMDIX capability)
• Mounting Type: Through Hole (identical)
• Orientation: 90° Angle (Right) (identical)
• Height Above Board: 1.170" (29.72mm) (identical)
• Termination: Solder (identical)
• LED Color: Green, Orange-Yellow (identical)
• Shielding: Shielded, EMI Finger (identical)
• Contact Finish: Gold (identical)
• RoHS Status: ROHS3 Compliant (identical)
• Product Status: Active (identical)

Allowable Variations:

• Number of Cores per Jack: 6620004-1 has 5 cores; 08C2-1X1T-36 has 4 cores (both support 10/100 Base-T requirements)
• Contact Material: Phosphor Bronze vs. Copper Alloy (both acceptable for gold-plated contacts)
• Shield Material: Brass vs. Copper Alloy (both provide equivalent EMI protection)
• Housing Material: PET vs. PBT (both thermoplastic materials with comparable mechanical properties)
• Operating Temperature: 0°C ~ 70°C vs. -40°C ~ 85°C (substitute has extended range)
• Contact Finish Thickness: 50.0µin vs. 30.0µin (both within acceptable gold plating specifications)
• Packaging: Bulk vs. Tray (logistics consideration only)

Parameter Comparison

Engineering Selection Recommendations

Both the 6620004-1 and 08C2-1X1T-36 are Active products with full RoHS3 compliance and REACH Unaffected status, making them suitable for equivalent component selection in 10/100 Base-T Ethernet applications. The primary selection criteria should be based on:

Availability and Lead Time: The 08C2-1X1T-36 (Bel Fuse Inc.) currently maintains higher inventory (4245 Pcs) compared to the 6620004-1 (869 Pcs), making it preferable for applications with immediate procurement requirements.

Operating Environment: The 08C2-1X1T-36 supports an extended operating temperature range (-40°C ~ 85°C) versus the 6620004-1 (0°C ~ 70°C). For applications requiring operation outside the 0°C ~ 70°C window, the Bel Fuse part is the appropriate selection.

Packaging Considerations: The 6620004-1 is supplied in Bulk packaging, while the 08C2-1X1T-36 is supplied in Tray packaging. Packaging selection should align with assembly process requirements and inventory management protocols.

Feature Parity: The 08C2-1X1T-36 includes AutoMDIX capability, which provides automatic medium-dependent interface crossover detection. This feature is transparent to applications not requiring it and does not affect compatibility with standard 10/100 Base-T implementations.

Both parts maintain identical mechanical footprints (1.170" height, 90° right-angle orientation) and electrical characteristics (gold-plated contacts, shielded construction with EMI fingers, identical LED indicators), ensuring direct PCB layout compatibility without design modifications.
