TE Connectivity Corcom Filters 6609047-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Corcom Filters 6609047-2 is a single-phase EMC/EMI line filter rated for 250VAC at 10A with 50/60Hz operation. This chassis-mounted filter features wire lead termination and is designed for general-purpose applications requiring electromagnetic compatibility filtering. The product maintains Active status with full RoHS3 compliance and REACH unaffected designation. Substitute parts are identified to provide alternative sourcing options when the primary part number becomes unavailable or when inventory constraints require component alternatives that maintain equivalent electrical and mechanical performance within specified parameters.

Substiute Parts

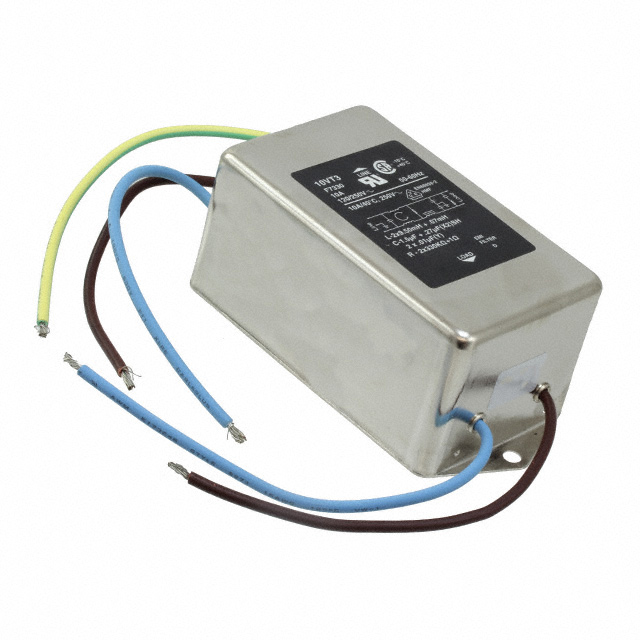

6609047-2

TE Connectivity Corcom FiltersIn Stock: 12116609047-2 Datasheet

Current PartRFQ

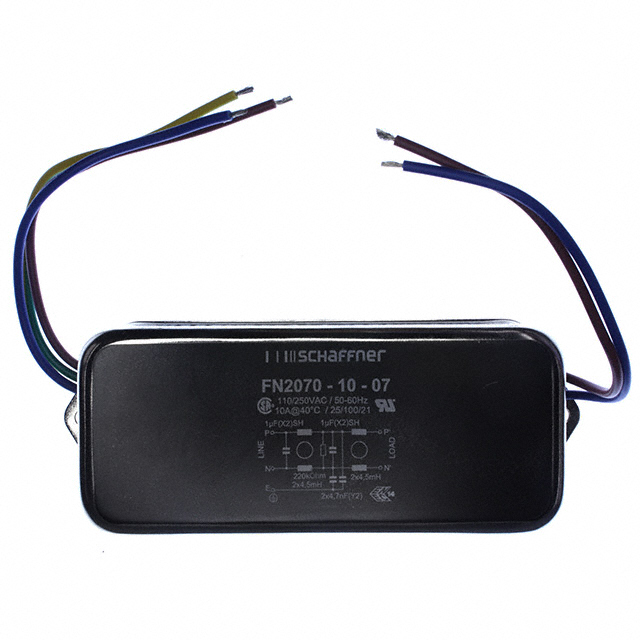

FN2070-10-07

Schaffner EMC Inc.In Stock: 1023FN2070-10-07 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity Corcom Filters 6609047-2 is determined by the following critical parameters:

Primary Substitution Criteria:

• Single-phase filter configuration
• 10A current rating
• Chassis mount construction with wire lead termination
• 250VAC voltage compatibility
• General-purpose application classification
• Active product status with current manufacturing support
• RoHS3 compliance and REACH unaffected status

The substitute part FN2070-10-07 qualifies as an equivalent alternative based on matching current rating (10A), voltage compatibility (250VAC), mounting type (chassis mount), termination style (wire leads), and compliance certifications (RoHS3, REACH unaffected). Both parts serve identical functional roles in EMC/EMI filtering applications and maintain equivalent approval agency recognition through CSA and UR certifications.

Parameter Comparison

Engineering Selection Recommendations

Primary Part Selection (6609047-2): Select the TE Connectivity Corcom Filters 6609047-2 when VDE certification is a mandatory requirement for your application. This part maintains Active product status with established supply chain availability and meets all specified electrical parameters for 250VAC, 10A single-phase filtering at 50/60Hz operation.

Substitute Part Selection (FN2070-10-07): The Schaffner EMC Inc. FN2070-10-07 serves as a qualified substitute when the primary part is unavailable. This substitute maintains Active status and provides equivalent 10A current handling at 250VAC with chassis mount wire lead configuration. The substitute offers extended operating temperature range (-25°C ~ 100°C versus -10°C ~ 40°C) and broader frequency support (DC ~ 400Hz versus 50/60Hz). Both parts carry CSA and UR approvals. The substitute features two-stage configuration compared to the primary part's single-stage design, resulting in lower inductance (4.5mH versus 9.5mH). ENEC certification on the substitute replaces VDE certification on the primary part.

Compliance Verification: Both parts maintain RoHS3 compliance and REACH unaffected status, ensuring regulatory alignment for current manufacturing standards. Verify that ENEC certification on the substitute meets your regional approval requirements if VDE certification was previously specified.

Frequently Asked Questions (FAQ)

Q: Can FN2070-10-07 directly replace 6609047-2 in existing designs?

A: The FN2070-10-07 provides electrical and mechanical compatibility for 250VAC, 10A single-phase filtering applications with identical mounting and termination. However, the substitute features two-stage configuration versus single-stage on the primary part, resulting in different inductance values (4.5mH versus 9.5mH). Verify that your circuit design accommodates the lower inductance specification. Additionally, confirm that ENEC certification meets your approval requirements if VDE was previously mandated.

Q: What are the key differences between these parts?

A: The primary differences are: (1) Configuration—6609047-2 uses single-stage design while FN2070-10-07 uses two-stage design; (2) Inductance—9.5mH versus 4.5mH respectively; (3) Voltage range—6609047-2 rated for 250VAC only while FN2070-10-07 supports 110V and 250VAC; (4) Frequency range—6609047-2 operates at 50/60Hz while FN2070-10-07 supports DC ~ 400Hz; (5) Temperature range—6609047-2 operates -10°C ~ 40°C while FN2070-10-07 operates -25°C ~ 100°C; (6) Certifications—6609047-2 carries VDE approval while FN2070-10-07 carries ENEC approval.

Q: Are both parts currently in active production?

A: Yes, both the TE Connectivity Corcom Filters 6609047-2 and Schaffner EMC Inc. FN2070-10-07 maintain Active product status with current manufacturing support.

Q: What packaging formats are available?

A: The primary part 6609047-2 is supplied in Bulk packaging. The substitute FN2070-10-07 is supplied in Tray packaging. Verify that your procurement and assembly processes accommodate the different packaging formats.

Q: Do both parts meet current compliance standards?

A: Yes, both parts are RoHS3 compliant and REACH unaffected, meeting current regulatory requirements for electronic component manufacturing and distribution.

Q: Which part should I select for new designs?

A: For new designs, either part is acceptable based on your specific application requirements. If your design requires VDE certification, select 6609047-2. If your design benefits from extended temperature range operation or dual voltage capability, FN2070-10-07 provides those features. Verify that the inductance difference (9.5mH versus 4.5mH) does not impact your circuit performance.
