TE Connectivity Corcom Filters 6609014-5 Equivalent & Substitute Parts

Part Overview

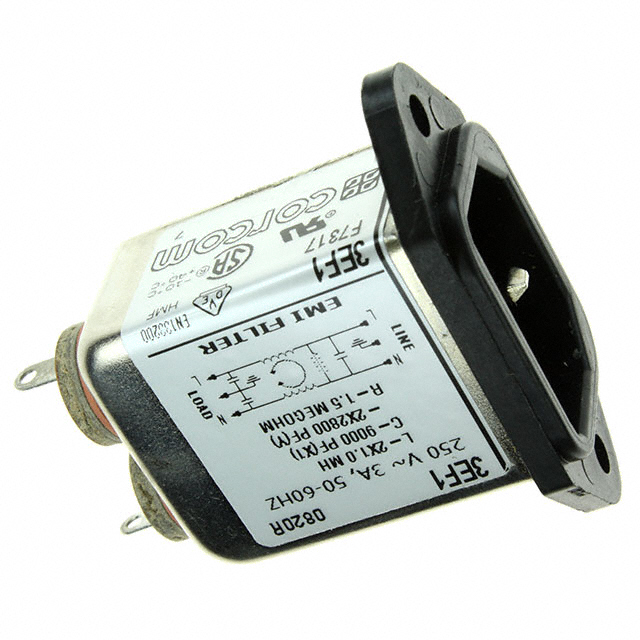

The TE Connectivity Corcom Filters 6609014-5 is a Power Entry Connector Receptacle with Male Blades, IEC 320-C14 configuration, designed for panel mount applications with flange mounting. This component functions as a filtered AC power inlet for commercial equipment, incorporating EMI and RFI filtering at 3A current rating across 120/250VAC supply voltages.

The 6609014-5 carries an Obsolete product status. Identification of equivalent substitute parts is necessary to maintain design continuity, ensure procurement availability, and support ongoing system maintenance and production requirements.

Substiute Parts

6609014-5

TE Connectivity Corcom FiltersIn Stock: 8166609014-5 Datasheet

Current PartRFQ

6609015-3

TE Connectivity Corcom FiltersIn Stock: 12036609015-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 6609014-5 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Requirements:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades
• Current Rating - Appliance Inlet: 3A
• Voltage Rating - Appliance Inlet: 120/250VAC
• Number of Positions: 3
• Filter Type: Filtered (EMI, RFI) - Commercial
• Current Rating - Filter: 3A

Mechanical Compatibility Requirements:

• Mounting Type: Panel Mount, Flange
• Termination: Quick Connect - 0.250" (6.3mm)

Regulatory Compliance Requirements:

• Approval Agency: CSA, UL, VDE

The substitute part 6609015-3 satisfies all critical electrical, mechanical, and regulatory parameters, establishing direct functional equivalence with the obsolete 6609014-5.

Parameter Comparison

Engineering Selection Recommendations

The 6609015-3 serves as the direct substitute for the obsolete 6609014-5 based on the following engineering criteria:

Electrical Equivalence: Both parts maintain identical current and voltage ratings (3A, 120/250VAC) with matching IEC 320-C14 connector specifications and commercial-grade EMI/RFI filtering.

Mechanical Compatibility: Panel mount flange configuration and quick connect termination (0.250" / 6.3mm) are identical, ensuring direct mechanical interchangeability in existing panel cutout designs.

Regulatory Compliance: Both parts carry identical approval certifications from CSA, UL, and VDE, satisfying all regulatory requirements for AC power inlet applications.

Product Status Advantage: The 6609015-3 maintains Active product status with established supply chain availability (1144 Pcs in stock), whereas the 6609014-5 is Obsolete. The substitute part includes enhanced shielding features, providing improved EMI/RFI performance characteristics.

Compliance Status: The 6609015-3 is ROHS3 Compliant and REACH Unaffected, meeting current environmental and regulatory standards.

Frequently Asked Questions (FAQ)

Q: Can the 6609015-3 directly replace the 6609014-5 in existing designs?

A: Yes. The 6609015-3 is electrically and mechanically equivalent to the 6609014-5 across all critical parameters: IEC 320-C14 connector style, 3A current rating, 120/250VAC voltage rating, panel mount flange configuration, and quick connect 0.250" termination. Both parts carry identical CSA, UL, and VDE approvals.

Q: What is the difference between the 6609014-5 and 6609015-3?

A: The primary differences are product status and shielding features. The 6609014-5 is Obsolete, while the 6609015-3 is Active production. The 6609015-3 includes shielded construction, providing enhanced EMI/RFI filtering performance. The 6609015-3 also carries ROHS3 Compliance certification.

Q: Are there packaging differences between these parts?

A: The 6609014-5 packaging information is not specified in available documentation. The 6609015-3 is supplied in Bulk packaging. Confirm packaging requirements with procurement specifications for your application.

Q: What certifications apply to both parts?

A: Both the 6609014-5 and 6609015-3 carry CSA, UL, and VDE approvals, meeting international safety and performance standards for AC power inlet connectors.

Q: Is the 6609015-3 suitable for new designs?

A: Yes. The 6609015-3 is an Active product with established supply chain availability. It meets current environmental standards (ROHS3 Compliant, REACH Unaffected) and is appropriate for new design implementations.

Q: How do the electrical ratings compare?

A: Electrical ratings are identical. Both parts are rated for 3A appliance inlet current and 120/250VAC voltage across three positions with commercial-grade EMI/RFI filtering.
