TE Connectivity Corcom Filters 6609003-4 Equivalent & Substitute Parts

Part Overview

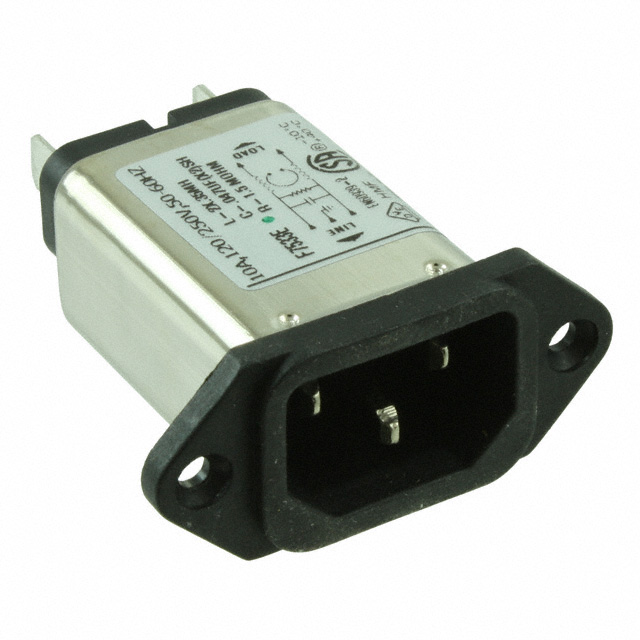

The TE Connectivity Corcom Filters 6609003-4 is a Power Entry Connector Receptacle with Male Blades, IEC 320-C14 configuration, designed for panel mount applications with integrated EMI/RFI filtering. This component is classified as obsolete, necessitating identification of active equivalent alternatives that maintain functional and electrical compatibility for new designs and replacement applications.

Substiute Parts

6609003-4

TE Connectivity Corcom FiltersIn Stock: 8186609003-4 Datasheet

Current PartRFQ

10EJH1

TE Connectivity Corcom FiltersIn Stock: 108110EJH1 Datasheet

MFR RecommendedRFQ

B84771M0010A000

EPCOS - TDK ElectronicsIn Stock: 893B84771M0010A000 Datasheet

SimilarRFQ

FN9222B-10-06

Schaffner EMC Inc.In Stock: 990FN9222B-10-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 6609003-4 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades
• Number of Positions: 3
• Mounting Type: Panel Mount, Flange
• Termination: Quick Connect - 0.250" (6.3mm)
• Filter Type: Filtered (EMI, RFI) - Commercial

Electrical Compatibility Parameters:

• Voltage Rating: 120/250VAC or higher
• Current Rating: Equal to or greater than 3A (appliance inlet and filter)

Compliance Parameters:

• Approval Agencies: CSA, UL, VDE certifications required
• RoHS Status: ROHS3 Compliant

The substitute parts identified below meet these criteria while offering active product status and enhanced current ratings (10A), providing superior performance margins for the same mechanical and electrical interface.

Parameter Comparison

Engineering Selection Recommendations

Primary Recommendation: TE Connectivity Corcom Filters 10EJH1

The 10EJH1 is the manufacturer-recommended substitute for the obsolete 6609003-4. Both components are manufactured by TE Connectivity Corcom Filters within the same product family (EBH and EJH series respectively). The 10EJH1 maintains identical mechanical and electrical interface specifications while offering an enhanced current rating of 10A, providing superior performance margin. Active product status ensures long-term availability and supply chain continuity. All required certifications (CSA, UL, VDE) and RoHS3 compliance are maintained.

Secondary Recommendation: EPCOS - TDK Electronics B84771M0010A000

The B84771M0010A000 provides cross-manufacturer equivalence with active product status. This component meets all mandatory substitution criteria and offers additional certifications (cUL, ENEC) beyond the original part. The 10A current rating and 250VAC/DC voltage specification provide enhanced electrical performance. Ingress Protection rating of IP40 offers additional environmental protection. Packaging in tray format supports higher-volume applications.

Tertiary Recommendation: Schaffner EMC Inc. FN9222B-10-06

The FN9222B-10-06 serves as an alternative cross-manufacturer substitute with active product status. This component includes a bleed resistor feature and achieves IP40 ingress protection. Certifications include CQC, CSA, ENEC, and UL. The 10A filter current rating exceeds the original specification. Panel cutout dimensions are specified as Rectangular - 28.50mm x 21.50mm. This option is suitable for applications requiring enhanced EMC filtering and environmental protection.

Frequently Asked Questions (FAQ)

Q: Can the 10EJH1 directly replace the 6609003-4 in existing designs?

A: Yes. The 10EJH1 maintains identical mechanical mounting (panel mount, flange), electrical interface (IEC 320-C14, 3-position, quick connect termination), and voltage rating (120/250VAC). The increased current rating (10A versus 3A) provides backward compatibility with superior performance margin.

Q: What is the primary reason for substitution?

A: The 6609003-4 is classified as obsolete. The identified substitute parts are active products with confirmed availability and ongoing manufacturer support, ensuring long-term supply chain reliability.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All three substitute parts (10EJH1, B84771M0010A000, and FN9222B-10-06) are ROHS3 compliant, matching the environmental compliance status of the original part.

Q: What certifications are common across all parts?

A: CSA and UL certifications are present on all substitute parts. The original 6609003-4 also includes VDE certification. The EPCOS and Schaffner alternatives add ENEC certification, providing broader international compliance coverage.

Q: How do the current ratings affect substitution?

A: The original 6609003-4 is rated at 3A (appliance inlet and filter). All substitute parts are rated at 10A or higher, providing enhanced current capacity. This represents an upgrade in electrical performance while maintaining full backward compatibility with the original 3A specification.

Q: What is the difference between the TE Connectivity 10EJH1 and the EPCOS B84771M0010A000?

A: Both are functionally equivalent IEC 320-C14 filtered power entry connectors with 10A ratings. The EPCOS part specifies 250VAC/DC voltage rating (versus 120/250VAC for the TE part), includes IP40 ingress protection, and is packaged in tray format. The TE part is the manufacturer-recommended direct substitute from the original manufacturer.

Q: Does the Schaffner FN9222B-10-06 include any additional features?

A: Yes. The FN9222B-10-06 includes a bleed resistor feature and achieves IP40 ingress protection rating. Panel cutout dimensions are specified as Rectangular - 28.50mm x 21.50mm. These features provide enhanced EMC filtering and environmental protection for demanding applications.

Q: Are packaging differences significant for component selection?

A: Packaging format (bulk, tray) affects logistics and inventory management but does not impact electrical or mechanical compatibility. Selection should be based on procurement volume and supply chain requirements.

Q: Can these parts be used in medical applications?

A: The B84771M0010A000 and FN9222B-10-06 are specified for both commercial and medical filter applications. The 10EJH1 is specified for commercial applications only. Medical application requirements should be verified against specific regulatory and certification needs.
