TE Connectivity Corcom Filters 6609000-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Corcom Filters 6609000-1 is a Power Entry Connector Receptacle with Male Blades, IEC 320-C14 configuration, designed for panel mount applications with flange mounting. This component functions as a filtered AC power inlet for commercial applications, incorporating EMI and RFI filtering at 1A current rating across 120/250VAC supply voltages.

The 6609000-1 carries an Obsolete product status. Equivalent and substitute parts are necessary to maintain system compatibility and ensure continued availability for applications requiring IEC 320-C14 power entry connectors with integrated commercial-grade filtering.

Substiute Parts

6609000-1

TE Connectivity Corcom FiltersIn Stock: 9426609000-1 Datasheet

Current PartRFQ

6609006-1

TE Connectivity Corcom FiltersIn Stock: 12696609006-1 Datasheet

MFR RecommendedRFQ

B84771A0001A000

EPCOS - TDK ElectronicsIn Stock: 1096B84771A0001A000 Datasheet

SimilarRFQ

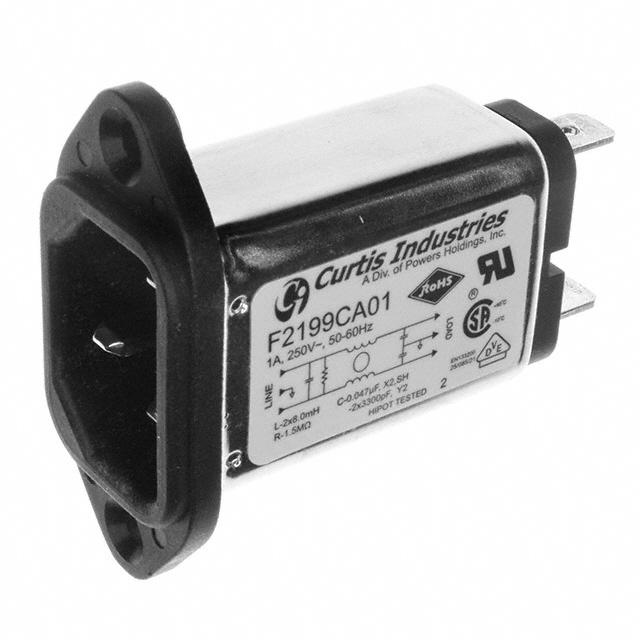

F2199CA01

Curtis IndustriesIn Stock: 879F2199CA01 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 6609000-1 is determined by strict equivalence across the following critical parameters:

Primary Substitution Criteria:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades
• Current Rating - Appliance Inlet: 1A
• Filter Type: Filtered (EMI, RFI) - Commercial
• Current Rating - Filter: 1A
• Mounting Type: Panel Mount, Flange
• Termination: Quick Connect - 0.250" (6.3mm)
• Number of Positions: 3

Secondary Compatibility Factors:

• Voltage Rating - Appliance Inlet: 120/250VAC or 250VAC (compatible with original specification)
• RoHS3 Compliance
• Regulatory Approvals: CSA, UL, VDE certifications

Parts meeting all primary criteria and maintaining voltage and regulatory compatibility are classified as direct substitutes. Variations in secondary features such as panel cutout dimensions, ingress protection ratings, or mounting flexibility do not disqualify substitution eligibility when primary electrical and mechanical parameters remain identical.

Parameter Comparison

Engineering Selection Recommendations

Primary Recommendation: TE Connectivity Corcom Filters 6609006-1

The 6609006-1 is the manufacturer-recommended substitute for the obsolete 6609000-1. Both components are manufactured by TE Connectivity Corcom Filters and share identical electrical specifications, connector configuration, and filtering characteristics. The 6609006-1 maintains Active product status with higher inventory availability (1173 Pcs) compared to the original part. All regulatory approvals (CSA, UL, VDE) are maintained. This substitute provides direct functional equivalence with no design modifications required.

Secondary Alternatives: B84771A0001A000 and F2199CA01

The EPCOS - TDK Electronics B84771A0001A000 and Curtis Industries F2199CA01 are functionally equivalent alternatives meeting all primary substitution criteria. Both parts maintain 1A current ratings, IEC 320-C14 connector configuration, commercial-grade EMI/RFI filtering, and Quick Connect termination. Voltage ratings (250VAC/DC for B84771A0001A000 and 250VAC for F2199CA01) are compatible with the original 120/250VAC specification.

The B84771A0001A000 provides additional features including bleed resistor capability and IP40 ingress protection, with expanded regulatory approvals (ENEC certification). The F2199CA01 offers front or rear side mount flexibility and CE certification in addition to CSA, TUV, and UL approvals.

Selection between these alternatives depends on specific application requirements regarding ingress protection, mounting flexibility, and regulatory jurisdiction. All three substitute parts are Active status components with confirmed inventory availability.

Frequently Asked Questions (FAQ)

Q: Can the 6609006-1 be used as a direct replacement for the 6609000-1?

A: Yes. The 6609006-1 is the manufacturer-recommended substitute. Both parts share identical electrical ratings (1A at 120/250VAC), connector style (IEC 320-C14), filter type (Commercial EMI/RFI), mounting configuration (Panel Mount, Flange), and termination method (Quick Connect - 0.250"). All regulatory approvals are maintained.

Q: What is the difference between the TE Connectivity 6609006-1 and the EPCOS B84771A0001A000?

A: Both parts meet all primary substitution criteria with identical current ratings, voltage compatibility, connector configuration, and filtering specifications. The B84771A0001A000 includes additional features: bleed resistor capability, IP40 ingress protection rating, and expanded regulatory approvals (ENEC certification). The voltage rating specification differs slightly (250VAC/DC versus 120/250VAC), but both are compatible with the original application.

Q: Are there packaging differences between substitute parts?

A: Yes. The 6609000-1 and 6609006-1 are supplied in Bulk packaging. The F2199CA01 is supplied in Box packaging. The B84771A0001A000 is supplied in Bulk packaging. Packaging format does not affect electrical or mechanical compatibility; it reflects only the distribution method.

Q: Do all substitute parts have the same panel cutout dimensions?

A: No. The 6609006-1 specifies Rectangular panel cutout dimensions of 30.48mm x 22.86mm. The B84771A0001A000 and F2199CA01 specify Variable Size panel cutout dimensions. Panel cutout specifications should be verified against your specific panel design requirements during component selection.

Q: What regulatory approvals apply to each substitute part?

A: The 6609000-1 and 6609006-1 carry CSA, UL, and VDE approvals. The B84771A0001A000 carries CSA, cUL, ENEC, and UL approvals. The F2199CA01 carries CE, CSA, TUV, and UL approvals. Selection should align with your application's regulatory jurisdiction and certification requirements.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. The 6609000-1, 6609006-1, B84771A0001A000, and F2199CA01 are all ROHS3 Compliant.

Q: What is the inventory status for each part?

A: The 6609000-1 (Obsolete) has 931 Pcs in stock. The 6609006-1 (Active) has 1173 Pcs in stock. The B84771A0001A000 (Active) has 1055 Pcs in stock. The F2199CA01 (Active) has 769 Pcs in stock. All substitute parts maintain confirmed inventory availability.
