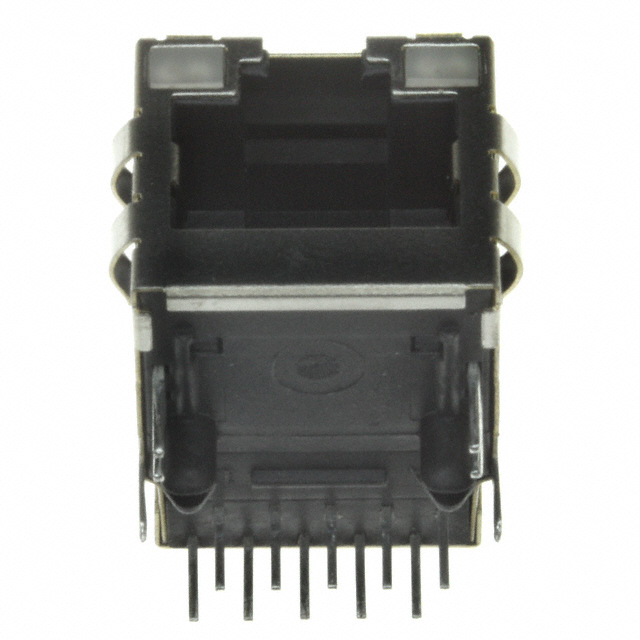

TRP Connector B.V. 6605814-6 Equivalent & Substitute Parts

Part Overview

The TRP Connector B.V. 6605814-6 is a 1 Port RJ45 Through Hole modular connector rated for 10/100/1000 Base-T Ethernet applications with AutoMDIX capability. This connector features a 90° right-angle orientation, solder termination, and integrated LED indicators (Green, Yellow). The part is classified as Obsolete, making identification of functionally equivalent alternatives necessary for ongoing system support and new design implementations.

Key Parameters

Parameter	Value
Manufacturer Part Number	6605814-6
Manufacturer	TRP Connector B.V.
Category	Modular Connectors
Connector Type	RJ45
Number of Ports	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.555" (14.10mm)
LED Color	Green, Yellow
Number of Cores per Jack	12
Shielding	Shielded, EMI Finger
Contact Material	Phosphor Bronze
Contact Finish	Gold
Operating Temperature	0°C ~ 70°C
RoHS Status	ROHS3 Compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitute parts for the 6605814-6 are qualified based on the following critical parameters:

Connector Type: RJ45
Number of Ports: 1
Applications: 10/100/1000 Base-T
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Shielding: Shielded, EMI Finger
Contact Finish: Gold
LED Color: Green, Yellow

The three substitute parts (2250013-4, JD1-0002NL, SI-61008-F) maintain these core electrical and mechanical parameters. Variations in height above board (0.539" to 0.550"), number of cores per jack (8 vs. 12), and tab direction are within acceptable tolerance ranges for through-hole RJ45 jack applications and do not affect functional compatibility in standard 10/100/1000 Base-T Ethernet circuits.

Parameter Comparison

Parameter	6605814-6 (Main)	2250013-4	JD1-0002NL	SI-61008-F
Manufacturer	TRP Connector B.V.	TRP Connector B.V.	Pulse Electronics	Bel Fuse Inc.
Connector Type	RJ45	RJ45	RJ45	RJ45
Number of Ports	1	1	1	1
Applications	10/100/1000 Base-T, AutoMDIX	10/100/1000 Base-T	10/100/1000 Base-T, AutoMDIX	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Orientation	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)
Termination	Solder	Solder	Solder	Solder
Height Above Board	0.555" (14.10mm)	0.539" (13.70mm)	0.543" (13.80mm)	0.550" (13.97mm)
LED Color	Green, Yellow	Green, Yellow	Green, Yellow	Green, Yellow
Number of Cores per Jack	12	8	8	8
Shielding	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger
Contact Finish	Gold	Gold	Gold	Gold
Operating Temperature	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C	Not Specified
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant
Product Status	Obsolete	Active	Active	Active

Engineering Selection Recommendations

All three substitute parts are Active products with current manufacturing support, addressing the obsolescence status of the 6605814-6. Selection among substitutes should be based on the following criteria:

TRP Connector B.V. 2250013-4: Maintains manufacturer continuity with the original part. ROHS3 compliant. Suitable for applications where AutoMDIX is not required. Height variation of 0.016" (0.40mm) is within standard PCB layout tolerances.

Pulse Electronics JD1-0002NL: Provides AutoMDIX functionality matching the original specification. RoHS compliant. Height variation of 0.012" (0.30mm) is within standard tolerances. PULSEJACK™ JD1 series offers established supply chain availability.

Bel Fuse Inc. SI-61008-F: Provides AutoMDIX functionality. ROHS3 compliant. Highest inventory availability (36,706 pcs). Height variation of 0.005" (0.13mm) is minimal. MagJack® ST SI-60000 series designation indicates mature product line. Operating temperature range not specified in available documentation.

Frequently Asked Questions (FAQ)

Q: Can the 6605814-6 be directly replaced with any of these substitute parts?

A: Yes. All three substitute parts maintain the critical electrical and mechanical parameters: RJ45 connector type, 1 port, 10/100/1000 Base-T rating, through-hole mounting, 90° right-angle orientation, solder termination, shielded construction with EMI finger, and gold contact finish. PCB layout modifications are not required.

Q: What is the significance of the difference in number of cores per jack (12 vs. 8)?

A: The 6605814-6 specifies 12 cores per jack, while all substitutes specify 8 cores. This difference reflects internal jack construction variations. Both configurations support standard 10/100/1000 Base-T Ethernet signaling (8 conductors) and are functionally equivalent for this application.

Q: Does the height above board variation affect PCB design?

A: Height variations range from 0.539" to 0.555" (13.70mm to 14.10mm), a maximum difference of 0.016" (0.40mm). This is within standard through-hole component tolerance and does not require PCB redesign for typical applications.

Q: Which substitute is recommended if AutoMDIX functionality is required?

A: Both JD1-0002NL and SI-61008-F explicitly support AutoMDIX. The 2250013-4 does not list AutoMDIX in its applications. If AutoMDIX is a system requirement, select either JD1-0002NL or SI-61008-F.

Q: Are all substitutes RoHS compliant?

A: Yes. The 6605814-6 is ROHS3 compliant. Substitutes 2250013-4 and SI-61008-F are ROHS3 compliant. JD1-0002NL is RoHS compliant. All meet environmental compliance requirements.

Q: What is the difference between tab direction "Up" and "Down"?

A: Tab direction refers to the orientation of the mechanical retention feature on the connector. The 6605814-6 and substitutes 2250013-4 and JD1-0002NL have tab direction "Up," while SI-61008-F has tab direction "Down." This affects cable insertion angle and mechanical retention orientation but does not impact electrical functionality.
