Honeywell 65SS4 Magnetic Switch - Equivalent & Substitute Parts

Part Overview

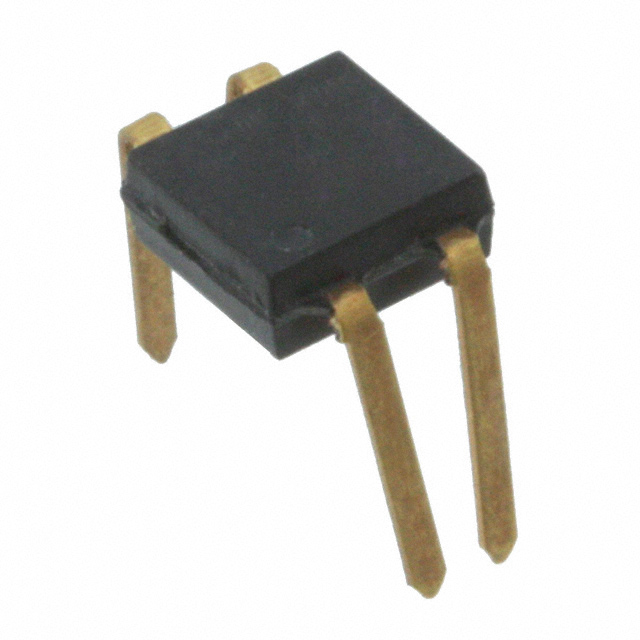

The Honeywell 65SS4 is a unipolar Hall Effect magnetic switch in 4-DIP packaging, designed for digital switching applications with open collector output. This component operates across an extended temperature range of -40°C to 150°C and features south pole polarization with a sensing range of 57.5mT trip and 8.2mT release thresholds.

The 65SS4 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for applications currently utilizing this magnetic sensor technology.

Substiute Parts

65SS4

Honeywell Sensing and Productivity SolutionsIn Stock: 115765SS4 Datasheet

Current PartRFQ

SS449R

Honeywell Sensing and Productivity SolutionsIn Stock: 3596SS449R Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 65SS4 is determined by the following critical parameters:

Core Functional Requirements:

• Technology: Hall Effect unipolar switching
• Polarization: South pole detection
• Output configuration: Open collector topology
• Operating temperature range: Minimum -40°C to 150°C support

Electrical Compatibility Criteria:

• Supply voltage range must encompass or exceed 4.5V to 9V
• Output current capability must meet or exceed 10mA maximum
• Supply current must not exceed application design limits

Physical and Compliance Requirements:

• Through-hole mounting capability
• RoHS compliance status
• Moisture sensitivity level (MSL) rating of 1 or equivalent

The SS449R substitute meets these criteria through equivalent Hall Effect technology, south pole polarization, open collector output, and extended operating temperature range. While package form differs (TO-92-3 versus 4-DIP), the electrical and functional parameters remain compatible for direct substitution in circuit applications.

Parameter Comparison

Engineering Selection Recommendations

Primary Consideration: Product Status

The 65SS4 is classified as obsolete, making the SS449R the appropriate active substitute from Honeywell's current product portfolio. Both components share identical core technologies (Hall Effect, unipolar switching, south pole polarization, open collector output) and equivalent operating temperature specifications (-40°C to 150°C).

Compliance and Certification Alignment

Both the 65SS4 and SS449R maintain RoHS compliance and MSL Level 1 (unlimited moisture sensitivity) ratings, ensuring regulatory and environmental compatibility across applications. ECCN classifications (EAR99) indicate equivalent export control status.

Electrical Parameter Compatibility

The SS449R demonstrates superior electrical performance characteristics: supply voltage range of 3V to 24V encompasses the 65SS4 requirement of 4.5V to 9V, while maximum output current of 20mA exceeds the 65SS4 specification of 10mA. These parameters confirm functional compatibility without design modification.

Package Transition Consideration

The transition from 4-DIP to TO-92-3 packaging requires PCB layout modification. Both maintain through-hole mounting technology, enabling straightforward mechanical integration with appropriate footprint redesign.

Frequently Asked Questions (FAQ)

Q: Can the SS449R directly replace the 65SS4 without circuit modification?

A: Electrical substitution is valid. The SS449R provides equivalent Hall Effect unipolar switching with open collector output, matching the 65SS4 functional specification. However, PCB footprint redesign is required due to package form change from 4-DIP to TO-92-3.

Q: What are the key differences in sensing range between these components?

A: The 65SS4 specifies 57.5mT trip and 8.2mT release thresholds. The SS449R specifies 46mT trip and 13.5mT release thresholds. Application-specific magnetic field requirements must be evaluated to confirm sensing range compatibility.

Q: Are both components suitable for -40°C to 150°C operating environments?

A: Yes. Both the 65SS4 and SS449R are rated for -40°C to 150°C operating temperature range, providing equivalent thermal performance across extended industrial temperature specifications.

Q: What is the significance of the supply voltage range difference?

A: The 65SS4 operates within 4.5V to 9V, while the SS449R operates within 3V to 24V. The SS449R's extended range provides greater design flexibility. Applications using the 65SS4 within its specified voltage window will function identically with the SS449R.

Q: Does the higher maximum output current of the SS449R affect compatibility?

A: No. The SS449R maximum output current of 20mA exceeds the 65SS4 specification of 10mA. This represents improved capability and does not create compatibility issues in applications designed for the 65SS4.

Q: Why is the 65SS4 classified as obsolete?

A: Obsolescence reflects Honeywell's product lifecycle management. The SS449R represents the active equivalent, providing equivalent functionality with enhanced electrical performance and continued manufacturing support.
