Amphenol ICC 65863-250 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 65863-250 is a rectangular connector header designed for through-hole mounting applications. This shrouded 20-position connector with 2.54mm pitch serves board-to-cable/wire interconnection requirements in the Quickie™ series. The part maintains active product status with 753 units in current inventory. Substitute parts are identified to address supply chain continuity, inventory availability, or specific application requirements where mechanical and electrical parameters align within acceptable tolerances.

Substiute Parts

65863-250

Amphenol ICC (FCI)In Stock: 77765863-250 Datasheet

Current PartRFQ

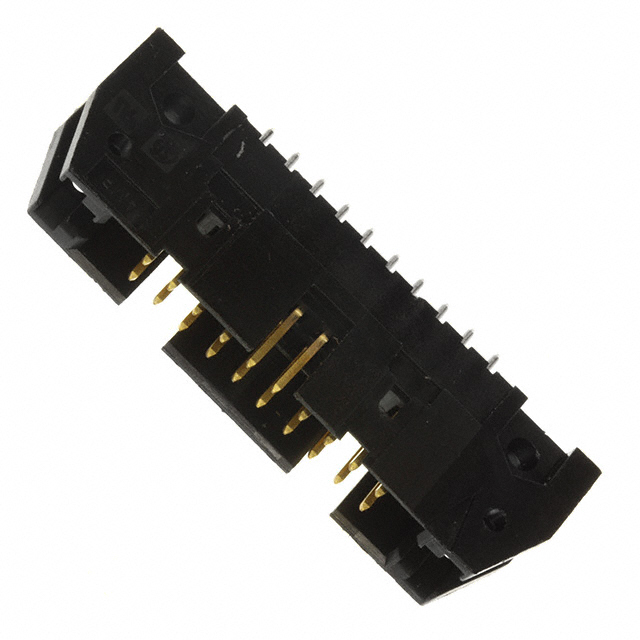

102154-4

TE Connectivity AMP ConnectorsIn Stock: 1271102154-4 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Amphenol ICC 65863-250 is determined by strict alignment of the following critical parameters:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (20)
• Number of rows (2)
• Mating pitch (0.100" / 2.54mm)
• Row spacing (0.100" / 2.54mm)
• Mounting type (Through Hole)
• Shrouding configuration (Shrouded - 4 Wall)
• Termination method (Solder)
• Fastening type (Push-Pull)
• Contact material (Phosphor Bronze)
• Material flammability rating (UL94 V-0)

The TE Connectivity AMP Connectors part number 102154-4 satisfies all critical substitution criteria. Both connectors share identical pitch, position count, row configuration, mounting methodology, and shrouding design. Contact material and flammability compliance remain consistent across both parts.

Parameter Comparison

Engineering Selection Recommendations

Both the Amphenol ICC 65863-250 and TE Connectivity 102154-4 maintain active product status with current manufacturing support. Both connectors carry identical UL94 V-0 flammability certification and RoHS non-compliant status, ensuring consistent compliance posture across applications. The TE Connectivity 102154-4 provides additional operational temperature specification (-65°C ~ 105°C) and current rating (1A per contact), along with documented REACH compliance status. Both parts share equivalent moisture sensitivity classification and export control designation. Selection between these parts depends on supply availability, packaging requirements (Tray versus Bulk), and specific application thermal or current demands where the TE Connectivity specification provides explicit ratings.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 102154-4 directly replace the Amphenol ICC 65863-250 in existing designs?

A: Yes. Both connectors share identical mating pitch (2.54mm), position count (20), row configuration (2 rows), mounting methodology (through-hole), shrouding design (4-wall), and termination approach (solder). The connectors are mechanically and electrically compatible for board-to-cable/wire applications.

Q: What are the differences in contact finish between these two parts?

A: The Amphenol ICC 65863-250 specifies gold or gold GXT™ mating contact finish. The TE Connectivity 102154-4 specifies gold or gold-palladium mating contact finish. Both maintain 30.0µin (0.76µm) finish thickness on mating contacts. The TE Connectivity part additionally specifies tin-lead finish on post contacts with 100.0µin (2.54µm) thickness.

Q: Are there packaging differences between these substitutes?

A: Yes. The Amphenol ICC 65863-250 is supplied in Tray packaging, while the TE Connectivity 102154-4 is supplied in Bulk packaging. Packaging selection may affect inventory management, handling procedures, and order quantity requirements.

Q: Do both parts meet the same compliance standards?

A: Both parts carry UL94 V-0 flammability certification, RoHS non-compliant status, and EAR99 export control designation. The TE Connectivity 102154-4 additionally documents REACH compliance status. Both parts maintain MSL 1 (Unlimited) moisture sensitivity classification.

Q: What operational temperature range applies to these connectors?

A: The Amphenol ICC 65863-250 does not specify an operating temperature range in the provided data. The TE Connectivity 102154-4 specifies -65°C ~ 105°C operating temperature range.

Q: Is current rating specified for both parts?

A: The Amphenol ICC 65863-250 does not specify a current rating. The TE Connectivity 102154-4 specifies 1A per contact current rating.
