Amphenol ICC 65863-249 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 65863-249 is an active rectangular connector header designed for through-hole mounting applications. This 16-position, 2-row connector operates at 0.100" (2.54mm) pitch and features shrouded 4-wall construction with push-pull fastening. The connector is manufactured from phosphor bronze with gold or gold GXT™ contact finish and thermoplastic insulation rated UL94 V-0. With 1023 units in current stock, this component serves as a standard interconnect solution for board-to-cable/wire applications in the Quickie™ series.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part's specifications, enabling direct replacement in compatible designs.

Substiute Parts

65863-249

Amphenol ICC (FCI)In Stock: 113265863-249 Datasheet

Current PartRFQ

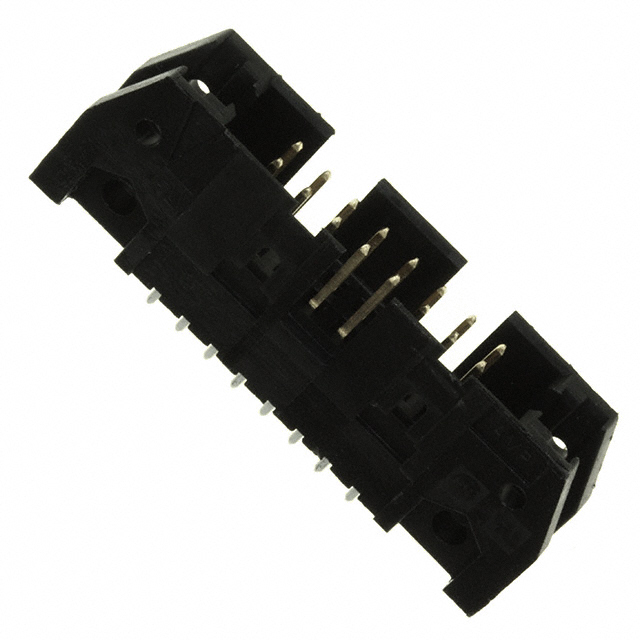

102153-3

TE Connectivity AMP ConnectorsIn Stock: 1410102153-3 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for rectangular connector headers is determined by alignment of core electrical and mechanical parameters. The following criteria establish functional equivalence:

Primary Substitution Criteria:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (16)
• Number of rows (2)
• Pitch - mating (0.100" / 2.54mm)
• Row spacing - mating (0.100" / 2.54mm)
• Mounting type (Through Hole)
• Shrouding configuration (Shrouded - 4 Wall)
• Fastening type (Push-Pull)
• Termination method (Solder)
• Material flammability rating (UL94 V-0)

The TE Connectivity AMP Connectors part number 102153-3 meets all primary substitution criteria, establishing it as a qualified equivalent for the Amphenol ICC 65863-249 in applications requiring these specifications.

Parameter Comparison

Engineering Selection Recommendations

Both the Amphenol ICC 65863-249 and TE Connectivity 102153-3 maintain active product status with identical core electrical and mechanical specifications. Both connectors are UL94 V-0 rated, carry MSL 1 classification, and share identical ECCN and HTSUS codes. Neither part achieves RoHS compliance.

Selection between these parts is based on availability and supply chain requirements. The TE Connectivity 102153-3 currently maintains higher inventory levels at 1374 units compared to 1023 units for the Amphenol ICC part. Both parts are suitable for direct substitution in applications requiring 16-position, 2-row through-hole header connectors with 2.54mm pitch and push-pull fastening.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 102153-3 directly replace the Amphenol ICC 65863-249?

A: Yes. Both connectors share identical specifications for connector type, contact type, position count, row configuration, mating pitch, row spacing, mounting method, shrouding, fastening mechanism, and termination. Both are UL94 V-0 rated and carry equivalent compliance classifications.

Q: What are the key differences between these two connectors?

A: The connectors operate in different product series (Quickie™ versus AMP-Latch) and feature minor variations in contact dimensions and finish specifications. The TE Connectivity part includes a mounting flange feature and specifies operating temperature range (-55°C to 105°C) and current rating (1A per contact), while the Amphenol ICC part does not provide these specifications in the available data.

Q: Are there any package or form factor differences?

A: Both connectors are supplied in tray packaging and feature identical shrouded 4-wall construction with through-hole mounting. Physical compatibility is maintained across both parts for standard PCB applications.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry MSL 1 classification, indicating unlimited shelf life without moisture control requirements.

Q: Are these connectors RoHS compliant?

A: No. Both the Amphenol ICC 65863-249 and TE Connectivity 102153-3 are classified as RoHS non-compliant.
