Amphenol ICC 65863-039 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 65863-039 is a rectangular connector header designed for through-hole mounting applications. This shrouded 40-position connector with 2.54mm pitch serves board-to-cable/wire interconnection requirements in the Quickie™ series. The part is currently active in production with 650 units in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are required due to inventory constraints, design flexibility, or supply chain considerations.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	40
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Shrouding	Shrouded - 4 Wall
Fastening Type	Push-Pull
Contact Shape	Square
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the 65863-039 is determined by strict equivalence across the following critical parameters:

Connector type (Header)
Contact type (Male Pin)
Position count (40 positions)
Row configuration (2 rows)
Mating pitch (0.100" / 2.54mm)
Row spacing (0.100" / 2.54mm)
Mounting method (Through Hole)
Termination type (Solder)
Shrouding configuration (Shrouded - 4 Wall)
Fastening mechanism (Push-Pull)
Contact shape (Square)
Flammability compliance (UL94 V-0)
MSL rating (1 - Unlimited)

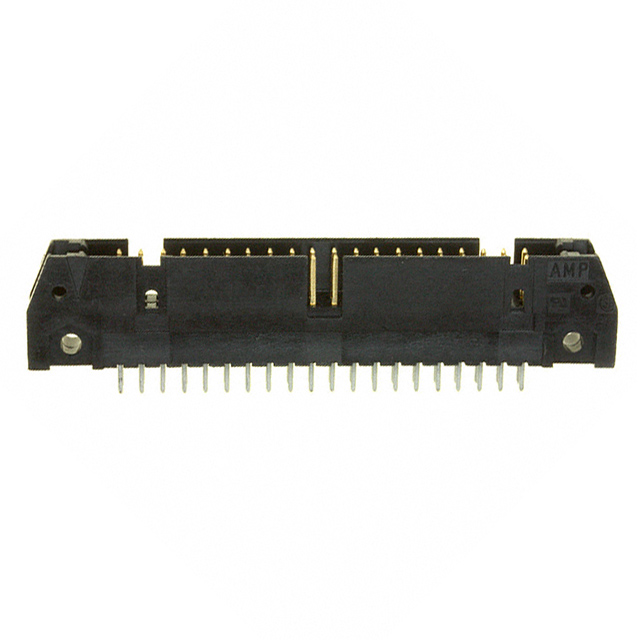

The TE Connectivity AMP Connectors part number 102156-9 meets all substitution criteria across these parameters.

Parameter Comparison

Parameter	Amphenol ICC 65863-039	TE Connectivity 102156-9	Status
Manufacturer Part Number	65863-039	102156-9	Different
Connector Type	Header	Header	Equivalent
Contact Type	Male Pin	Male Pin	Equivalent
Number of Positions	40	40	Equivalent
Number of Rows	2	2	Equivalent
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	Equivalent
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	Equivalent
Mounting Type	Through Hole	Through Hole	Equivalent
Termination	Solder	Solder	Equivalent
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Equivalent
Fastening Type	Push-Pull	Push-Pull	Equivalent
Contact Shape	Square	Square	Equivalent
Contact Finish - Mating	Gold	Gold or Gold-Palladium	Equivalent
Contact Finish Thickness - Mating	30.0µin (0.76µm)	30.0µin (0.76µm)	Equivalent
Material Flammability Rating	UL94 V-0	UL94 V-0	Equivalent
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Equivalent
Product Status	Active	Active	Equivalent
ECCN	EAR99	EAR99	Equivalent
HTSUS	8536.69.4040	8536.69.4040	Equivalent

Engineering Selection Recommendations

Both the Amphenol ICC 65863-039 and TE Connectivity 102156-9 are active production parts with equivalent electrical and mechanical specifications. Selection between these parts should be based on:

Availability and lead time requirements
Packaging format preference (Amphenol ICC supplied in Tray; TE Connectivity supplied in Bulk)
Series compatibility with existing designs (Quickie™ vs. AMP-Latch)
Compliance requirements specific to the application (both meet UL94 V-0 and MSL 1 standards)
Contact finish specifications (Amphenol ICC specifies Gold; TE Connectivity offers Gold or Gold-Palladium)

Both parts are RoHS-compliant or not applicable per their respective manufacturer classifications and are suitable for direct substitution in applications requiring 40-position, 2.54mm pitch rectangular connectors with through-hole solder termination.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 102156-9 be used as a direct replacement for the Amphenol ICC 65863-039?

A: Yes. Both parts share identical electrical and mechanical specifications across all critical parameters: 40 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole solder termination, shrouded 4-wall configuration, and push-pull fastening. Both meet UL94 V-0 flammability requirements and MSL 1 moisture sensitivity ratings.

Q: What are the differences between these two parts?

A: The primary differences are manufacturer identity, series designation (Quickie™ vs. AMP-Latch), packaging format (Tray vs. Bulk), and minor variations in contact finish options and insulation color. The TE Connectivity part includes a mounting flange feature and specifies operating temperature range (-65°C ~ 105°C) and current rating (1A per contact), while the Amphenol ICC part does not provide these specifications in the available data.

Q: Are there any compatibility concerns when substituting between these parts?

A: No compatibility concerns exist for applications requiring the specified electrical and mechanical parameters. Both parts are designed for board-to-cable/wire interconnection with identical pitch, position count, and mounting methodology. PCB footprints and mating connector designs compatible with one part are compatible with the other.

Q: What packaging considerations should be evaluated?

A: The Amphenol ICC 65863-039 is supplied in Tray packaging, while the TE Connectivity 102156-9 is supplied in Bulk packaging. Packaging selection may affect handling, storage, and inventory management procedures but does not impact electrical or mechanical performance.

Q: Which part should be selected for new designs?

A: Selection should be based on supply chain availability, preferred manufacturer relationship, and specific application requirements. Both parts are active production items with equivalent specifications and are suitable for new design implementations.
