Amphenol ICC 65846-015LF Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

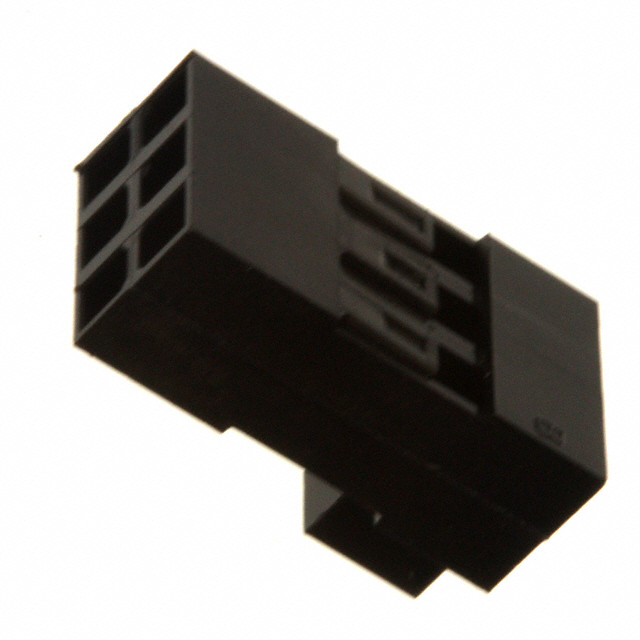

The Amphenol ICC 65846-015LF is a 6-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This Mini-PV™ series component features a polarizing key and operates across -40°C to 105°C. The part is Active status and RoHS Compliant. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling direct functional replacement in applications requiring 6-position receptacle housings with identical pitch, row configuration, and termination method.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	6
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Features	Polarizing Key
Operating Temperature	-40°C ~ 105°C

Substitute Part Grouping Explanation

Substitute parts for the 65846-015LF are qualified based on strict parameter equivalence in the following categories:

Electrical Parameters: Connector type (Receptacle), contact type (Female Socket), number of positions (6), pitch (0.100"/2.54mm), number of rows (2), row spacing (0.100"/2.54mm), contact termination method (Crimp), and operating temperature range (-40°C ~ 105°C).

Mechanical Parameters: Mounting type (Free Hanging In-Line), color (Black), and polarizing key feature.

Compliance Parameters: RoHS status and product status (Active).

All identified substitutes maintain these core parameters, ensuring functional interchangeability in applications designed for the 65846-015LF housing.

Parameter Comparison

Parameter	65846-015LF (Main)	69176-006LF	65846-015ELF	0022552062
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Molex
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	6	6	6	6
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp
Color	Black	Black	Black	Black
Features	Polarizing Key	Polarizing Key	Polarizing Key	Polarizing Key
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Product Status	Active	Active	Active	Active
RoHS Status	RoHS Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant

Engineering Selection Recommendations

69176-006LF (Amphenol ICC): This part is the manufacturer-recommended substitute, maintaining all electrical and mechanical parameters identical to the 65846-015LF. Both are Amphenol ICC products within the Mini-PV™ series. The primary distinction is packaging format (Bulk vs. Bag) and inventory availability (520,752 pcs vs. 1,619 pcs). Selection is appropriate for high-volume applications where bulk packaging is acceptable.

65846-015ELF (Amphenol ICC): This parametric equivalent shares the same base product number (65846) as the main part and maintains identical specifications. Both are packaged in Bag format. This substitute is suitable for applications requiring the same packaging configuration as the original part.

0022552062 (Molex): This cross-manufacturer substitute from Molex maintains all critical electrical and mechanical parameters. The SL 70450 series provides functional equivalence with identical pitch, position count, row configuration, and operating temperature range. Insulation material differs (Polyester, Glass Filled vs. Polyphenylene, Modified), but both materials meet the specified operating conditions. This option is appropriate when Molex component integration is preferred or when Amphenol ICC parts are unavailable.

All substitutes are Active status products with current RoHS compliance certifications, ensuring regulatory alignment with the original specification.

Frequently Asked Questions (FAQ)

Q: What determines if a part can substitute for the 65846-015LF? A: Substitutes must match the following parameters: 6-position receptacle housing, Female Socket contact type, 0.100" (2.54mm) pitch, 2-row configuration with 0.100" row spacing, Free Hanging in-line mounting, Crimp termination, Black color, Polarizing Key feature, and -40°C to 105°C operating temperature range.

Q: Can I use 69176-006LF as a direct replacement? A: Yes. The 69176-006LF is electrically and mechanically identical to the 65846-015LF. The difference is packaging format (Bulk vs. Bag). Verify that bulk packaging is acceptable for your application workflow.

Q: What is the difference between 65846-015LF and 65846-015ELF? A: Both parts share the same base product number (65846) and are identical in all electrical and mechanical specifications. Both are packaged in Bag format. They are interchangeable for all functional purposes.

Q: Can I use the Molex 0022552062 instead of the Amphenol ICC part? A: Yes. The 0022552062 maintains all critical electrical and mechanical parameters required for functional equivalence. The insulation material differs (Polyester, Glass Filled vs. Polyphenylene, Modified), but both materials support the specified operating temperature range. Cross-manufacturer substitution is valid when component sourcing requires Molex products.

Q: Are all substitutes RoHS compliant? A: Yes. The 65846-015LF, 69176-006LF, and 65846-015ELF are RoHS Compliant. The Molex 0022552062 is ROHS3 Compliant. All meet current regulatory requirements.

Q: What packaging options are available? A: The 65846-015LF and 65846-015ELF are supplied in Bag packaging. The 69176-006LF is supplied in Bulk packaging. Select based on your procurement and assembly requirements.

Q: Do these parts include contacts? A: No. All listed parts are housings only. Contacts must be sourced separately and are not included with the housing purchase.
