Amphenol ICC 65846-002ELF Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 65846-002ELF is a 30-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This component serves as the housing structure for female socket contacts in dual-row configurations, commonly used in industrial control, telecommunications, and consumer electronics applications. The part is currently Active in product status and maintains full RoHS compliance. Substitute parts may be required due to inventory constraints, regional availability, or specific procurement requirements while maintaining identical electrical and mechanical specifications.

Substiute Parts

65846-002ELF

Amphenol ICC (FCI)In Stock: 79565846-002ELF Datasheet

Current PartRFQ

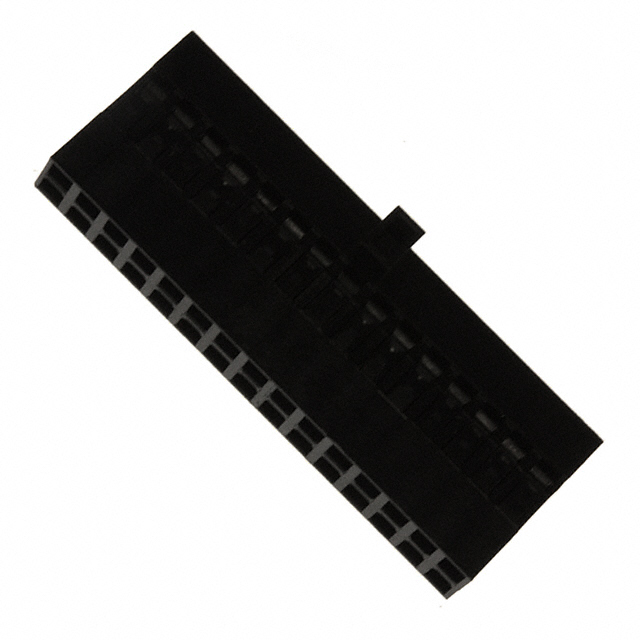

65846-002LF

Amphenol ICC (FCI)In Stock: 85165846-002LF Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 65846-002ELF is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Receptacle housing with female socket contacts
• Position Count & Pitch: 30 positions at 0.100" (2.54mm) pitch
• Physical Layout: 2-row configuration with 0.100" (2.54mm) row spacing
• Mounting & Termination: Free hanging (in-line) mounting with crimp termination
• Material & Environmental Compliance: Modified polyphenylene insulation, RoHS compliant, operating range -40°C ~ 105°C
• Polarization: Polarizing key feature present

The substitute part 65846-002LF meets all these criteria and is classified as a parametric equivalent within the Mini-PV™, Basics+ series.

Parameter Comparison

Engineering Selection Recommendations

Both the 65846-002ELF and 65846-002LF are Active products with full RoHS compliance and identical MSL ratings. Selection between these parts should be based on availability and procurement lead times. Both parts carry the same regulatory classification (ECCN: EAR99, HTSUS: 8538.90.6000) and present no compliance or certification differences. The parts are electrically and mechanically interchangeable for all applications requiring a 30-position, 2.54mm pitch rectangular connector receptacle housing with crimp termination and polarizing key features.

Frequently Asked Questions (FAQ)

Q: Are 65846-002ELF and 65846-002LF fully interchangeable?

A: Yes. Both parts are parametric equivalents with identical electrical and mechanical specifications, including connector type, position count, pitch, row configuration, mounting method, termination type, insulation material, operating temperature range, and compliance certifications.

Q: What does the suffix difference (ELF vs. LF) indicate?

A: The suffix designates packaging or internal manufacturing variants within the same electrical and mechanical specification. Both suffixes represent the same functional component.

Q: Can these housings be used with different contact types?

A: No. These housings are designed specifically for female socket contacts. The housing geometry and polarizing key are configured for this contact type only.

Q: What is the significance of the polarizing key feature?

A: The polarizing key prevents incorrect mating orientation, ensuring proper connector alignment during assembly and reducing installation errors.

Q: Are contacts included with these housings?

A: No. Both parts are housings only. Contacts must be sourced separately and crimped into the housing positions.

Q: What is the Moisture Sensitivity Level (MSL) rating?

A: MSL 1 indicates unlimited shelf life without moisture control requirements, making these parts suitable for standard storage and handling conditions.
