Amphenol ICC 65801-034 FFC/FPC Connector Receptacle Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 65801-034 is a 5-position FFC/FPC connector receptacle with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This part operates at 500V with a 2A current rating and supports operating temperatures from -65°C to 105°C. The 65801-034 is classified as obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement.

Key Parameters

Parameter	Value
Connector Type	FFC/FPC Receptacle
Number of Positions	5
Pitch	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Termination	IDC
Voltage Rating	500V
Current Rating	2A
Operating Temperature	-65°C to 105°C
Contact Material	Copper Nickel Alloy
Contact Finish	Gold or Gold, GXT™
Housing Material	Thermoplastic
Flammability Rating	UL94 V-0
Mating Cycles	100

Substitute Part Grouping Explanation

Substitution for the 65801-034 is determined by the following critical parameters: connector type (FFC/FPC receptacle), number of positions (5), pitch (0.100"/2.54mm), mounting configuration (free hanging in-line), termination method (IDC), voltage rating (500V minimum), current rating (2A minimum), and operating temperature range (-65°C to 105°C). Housing and contact materials, flammability rating, and mating cycle specifications must remain consistent with the original design requirements.

The 65801-034LF is a direct equivalent from the same manufacturer series (Clincher™) with identical electrical and mechanical specifications. The 487378-4 from TE Connectivity is a housing component for female contacts and functions as a complementary component rather than a direct connector receptacle substitute.

Parameter Comparison

Parameter	65801-034 (Main)	65801-034LF (Direct Equivalent)	487378-4 (Complementary)
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	TE Connectivity AMP Connectors
Connector Type	FFC/FPC Receptacle	FFC/FPC Receptacle	FFC Housing for Female Contacts
Number of Positions	5	5	5
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	N/A
Termination	IDC	IDC	N/A
Voltage Rating	500V	500V	300V
Current Rating	2A	2A	1.5A
Operating Temperature	-65°C to 105°C	-65°C to 105°C	-65°C to 105°C
Contact Material	Copper Nickel Alloy	Copper Nickel Alloy	N/A
Contact Finish	Gold or Gold, GXT™	Gold or Gold, GXT™	N/A
Housing Material	Thermoplastic	Thermoplastic	Thermoplastic
Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
Mating Cycles	100	100	N/A
Product Status	Obsolete	Active	Active
RoHS Status	Non-compliant	Compliant	Compliant

Engineering Selection Recommendations

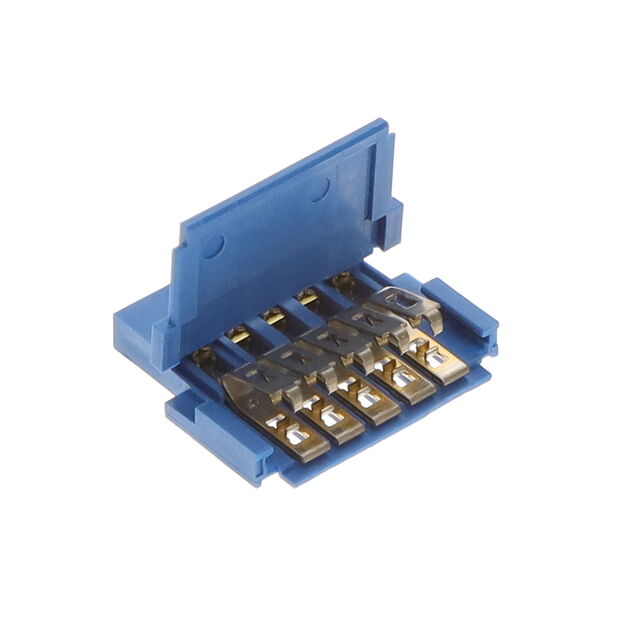

The 65801-034LF is the primary direct equivalent for the obsolete 65801-034. Both parts maintain identical electrical specifications (500V, 2A), mechanical configuration (5-position, 0.100" pitch, free-hanging in-line), and thermal operating range (-65°C to 105°C). The 65801-034LF is currently in active production status with higher inventory availability (1469 pcs vs. 683 pcs). The 65801-034LF achieves RoHS compliance and REACH affected status, addressing regulatory requirements that the original part does not meet. Additional features in the 65801-034LF include flip lock locking mechanism, notched cable end type, and solder retention capability.

The 487378-4 from TE Connectivity is a housing component for female contacts and is not a direct connector receptacle substitute. This part has reduced voltage (300V) and current (1.5A) ratings compared to the main part specifications. The 487378-4 functions as a complementary housing component and should not be selected as a primary replacement for the 65801-034 in applications requiring full 500V/2A performance.

Frequently Asked Questions (FAQ)

Q: Can the 65801-034LF directly replace the 65801-034 in existing designs?

A: Yes. The 65801-034LF maintains identical electrical and mechanical specifications including 5-position configuration, 0.100" (2.54mm) pitch, 500V voltage rating, 2A current rating, and -65°C to 105°C operating temperature range. The 65801-034LF includes additional features (flip lock, solder retention) that enhance reliability without affecting compatibility.

Q: What is the difference between the 65801-034 and 65801-034LF?

A: The primary differences are product status (obsolete vs. active), RoHS compliance (non-compliant vs. compliant), FFC/FCB thickness (0.33mm vs. 0.20mm), and additional mechanical features in the 65801-034LF (flip lock locking feature, notched cable end type, solder retention). Electrical and thermal specifications remain identical.

Q: Is the 487378-4 a suitable replacement for the 65801-034?

A: No. The 487378-4 is a housing component for female contacts, not a complete connector receptacle. It has reduced voltage (300V) and current (1.5A) ratings. The 487378-4 functions as a complementary component and does not meet the full performance requirements of the 65801-034.

Q: What packaging options are available for these parts?

A: The 65801-034 is supplied in standard packaging (unspecified). The 65801-034LF is supplied in tray packaging. The 487378-4 is supplied in bulk packaging. Packaging selection should align with production volume and handling requirements.

Q: Are there any compliance differences between the main part and substitutes?

A: Yes. The 65801-034 is RoHS non-compliant. The 65801-034LF is RoHS compliant and REACH affected. The 487378-4 is RoHS compliant with undefined REACH status. For applications requiring regulatory compliance, the 65801-034LF is the appropriate selection.
