Amphenol ICC 65801-024 FFC/FPC Connector Receptacle Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 65801-024 is a 24-position FFC/FPC connector receptacle with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This connector features IDC termination, tin-plated copper nickel alloy contacts, and operates across -65°C to 105°C. The part is currently active in production with 974 units in stock. Substitute parts are identified to address inventory availability, compliance requirements, or specific application needs while maintaining electrical and mechanical compatibility.

Substiute Parts

65801-024

Amphenol ICC (FCI)In Stock: 100465801-024 Datasheet

Current PartRFQ

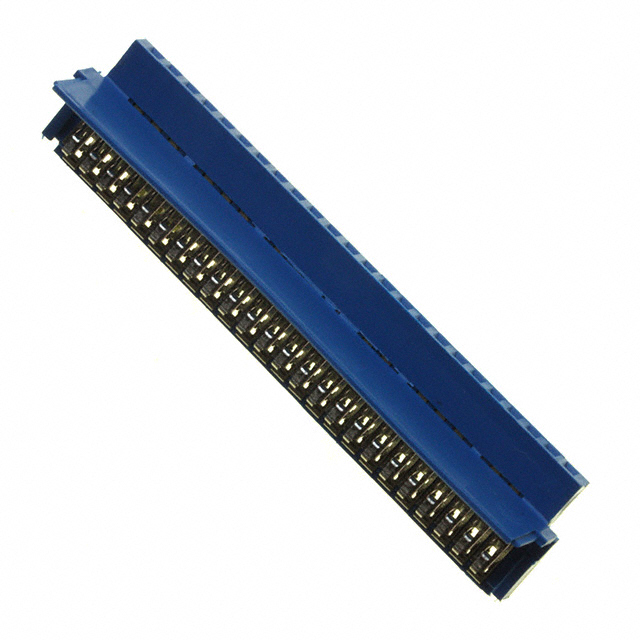

65801-024LF

Amphenol ICC (FCI)In Stock: 132365801-024LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 65801-024LF is classified as a direct equivalent based on the following critical parameters that determine substitution compatibility:

Core Compatibility Parameters:

• Number of Positions: 24 (identical)
• Pitch: 0.100" (2.54mm) (identical)
• Connector Type: Receptacle (identical)
• Mounting Type: Free Hanging (In-Line) (identical)
• Termination: IDC (identical)
• Contact Material: Copper Nickel Alloy (identical)
• Contact Finish: Tin (identical)
• Voltage Rating: 500V (identical)
• Current Rating: 2A (identical)
• Operating Temperature: -65°C ~ 105°C (identical)
• Material Flammability: UL94 V-0 (identical)
• Mating Cycles: 100 (identical)

Allowable Variations:

• FFC/FPC Thickness: 65801-024 accepts 0.33mm; 65801-024LF accepts 0.30mm and 0.33mm (compatible range)
• Locking Feature: 65801-024LF includes Slide Lock (enhanced feature, backward compatible)
• Cable End Type: 65801-024LF supports Straight and Tapered options (application-dependent)
• Features: 65801-024LF includes Solder Retention and Zero Insertion Force (ZIF) (enhanced features)
• RoHS Status: 65801-024LF is RoHS Compliant (improved compliance)

Parameter Comparison

Engineering Selection Recommendations

Primary Selection Criteria:

The 65801-024 and 65801-024LF are electrically and mechanically interchangeable for applications requiring a 24-position FFC/FPC receptacle with 0.100" pitch and IDC termination. Selection between these parts should be based on the following factors:

Use 65801-024 when:

• Existing designs are qualified for the non-compliant variant
• RoHS compliance is not a requirement
• Cost optimization is the primary objective
• Inventory availability of the original part number is sufficient

Use 65801-024LF when:

• RoHS compliance is mandatory for the application or end market
• Enhanced features such as Slide Lock and Zero Insertion Force (ZIF) are beneficial
• Greater inventory availability is required
• REACH compliance status is a consideration

Both parts maintain identical electrical performance, thermal ratings, and mechanical compatibility. The 65801-024LF provides improved compliance posture and additional mechanical features without compromising backward compatibility.

Frequently Asked Questions (FAQ)

Q: Can 65801-024LF be used as a direct replacement for 65801-024 in existing designs?

A: Yes. The 65801-024LF is a direct substitute. Both connectors share identical electrical ratings (500V, 2A), mechanical specifications (24 positions, 0.100" pitch), and operating temperature range (-65°C to 105°C). The 65801-024LF includes enhanced features (Slide Lock, ZIF) that are backward compatible with applications designed for the 65801-024.

Q: What is the difference in FFC/FPC thickness compatibility?

A: The 65801-024 is specified for 0.33mm thickness cable. The 65801-024LF accepts both 0.30mm and 0.33mm thickness cables, providing broader compatibility with flat flexible cable variants. Both thicknesses operate within the same electrical and mechanical parameters.

Q: Does the Slide Lock feature on 65801-024LF affect mating compatibility?

A: No. The Slide Lock is an enhancement that improves connector retention without affecting the mating interface. The 24-position receptacle remains compatible with standard FFC/FPC cables designed for 0.100" pitch connectors.

Q: What is the significance of RoHS compliance difference?

A: The 65801-024 is RoHS non-compliant, while 65801-024LF is RoHS Compliant. For applications subject to RoHS regulations or customer requirements, the 65801-024LF is the appropriate selection. Both parts maintain identical electrical and thermal performance.

Q: Are there any packaging or inventory considerations?

A: Both parts are supplied in Tray packaging. The 65801-024LF has higher current inventory (1227 Pcs) compared to 65801-024 (974 Pcs), making it a more readily available option for immediate procurement needs.

Q: Can these connectors be used interchangeably in production?

A: Yes, provided the application does not have specific design constraints tied to the original part number. The electrical, thermal, and mechanical specifications are identical. Verify that any regulatory or compliance requirements are met by the selected variant.
