Amphenol ICC 65801-010 FFC/FPC Connector Receptacle Equivalent & Substitute Parts

Part Overview

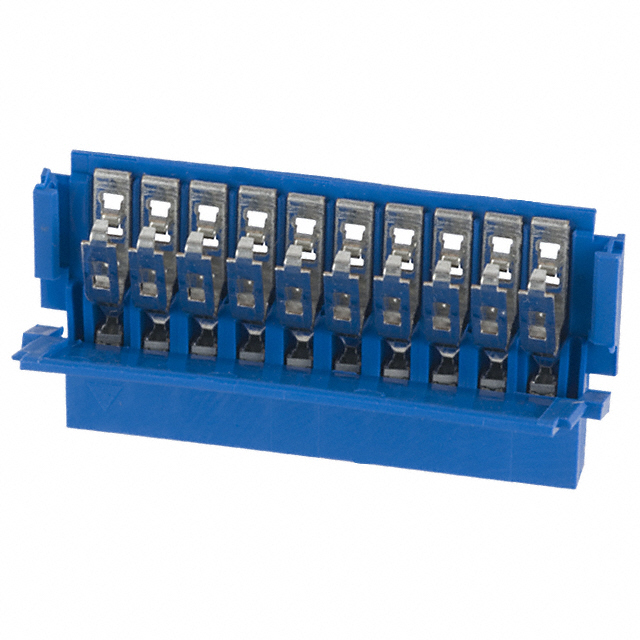

The Amphenol ICC 65801-010 is a 10-position FFC/FPC connector receptacle with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This Clincher™ series component features IDC termination, tin-plated copper nickel alloy contacts, and operates across -65°C to 105°C. The part is currently active in production with 884 units in stock. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and design alternatives where electrical and mechanical parameters align with application requirements.

Key Parameters

Parameter	Specification
Connector Type	FFC/FPC Receptacle
Number of Positions	10
Pitch	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Termination Method	IDC
Contact Material	Copper Nickel Alloy
Contact Finish	Tin
Voltage Rating	500V
Current Rating	2A
Operating Temperature	-65°C to 105°C
Material Flammability	UL94 V-0
FFC/FCB Thickness	0.33mm
Mating Cycles	100

Substitute Part Grouping Explanation

Substitute parts for the 65801-010 are identified based on strict alignment with core electrical and mechanical parameters: 10-position configuration, 0.100" (2.54mm) pitch, FFC/FPC connector type, receptacle function, IDC termination, copper nickel alloy contacts with tin finish, 500V voltage rating, 2A current rating, -65°C to 105°C operating temperature range, and UL94 V-0 flammability rating.

The 65801-010LF variant maintains full parameter equivalence while adding enhanced features (slide lock, zero insertion force, solder retention) and improved compliance status. The 487378-9 housing component from TE Connectivity represents a functional alternative for applications requiring only the housing assembly without integrated contacts, though it operates at reduced voltage (300V) and current (1.5A) ratings.

Parameter Comparison

Parameter	65801-010	65801-010LF	487378-9
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	TE Connectivity AMP
Connector Type	FFC/FPC Receptacle	FFC/FPC Receptacle	FFC Housing
Number of Positions	10	10	10
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	N/A
Termination	IDC	IDC	N/A
Contact Material	Copper Nickel Alloy	Copper Nickel Alloy	N/A
Contact Finish	Tin	Tin	N/A
Voltage Rating	500V	500V	300V
Current Rating	2A	2A	1.5A
Operating Temperature	-65°C to 105°C	-65°C to 105°C	-65°C to 105°C
Material Flammability	UL94 V-0	UL94 V-0	UL94 V-0
FFC/FCB Thickness	0.33mm	0.33mm	0.05-0.13mm
Mating Cycles	100	100	N/A
RoHS Status	Non-compliant	Compliant	Compliant
Locking Feature	None	Slide Lock	None
Housing Color	Blue	Blue	Black

Engineering Selection Recommendations

The 65801-010LF is the direct equivalent substitute for the 65801-010, offering identical electrical and mechanical performance with the addition of slide lock and zero insertion force features. The 65801-010LF achieves RoHS compliance status, whereas the original 65801-010 does not. Both parts maintain the same voltage, current, temperature, and flammability ratings, and both support 100 mating cycles.

The 487378-9 from TE Connectivity is a housing-only component and is not a complete functional substitute. It is suitable only for applications where the housing assembly is required separately from contacts. The 487378-9 operates at reduced electrical ratings (300V, 1.5A) compared to the 65801-010 (500V, 2A) and accommodates thinner FFC/FCB material (0.05-0.13mm versus 0.33mm). Selection of the 487378-9 requires verification that reduced electrical ratings and material thickness compatibility align with application requirements.

Frequently Asked Questions (FAQ)

Q: Can the 65801-010LF be used as a direct replacement for the 65801-010?

A: Yes. The 65801-010LF maintains identical electrical and mechanical specifications: 10 positions, 0.100" pitch, 500V voltage rating, 2A current rating, -65°C to 105°C operating range, and UL94 V-0 flammability. The 65801-010LF adds slide lock and zero insertion force features and achieves RoHS compliance.

Q: What is the functional difference between the 65801-010 and the 487378-9?

A: The 65801-010 is a complete receptacle assembly with integrated contacts. The 487378-9 is a housing component only and does not include contacts. The 487378-9 is not a direct substitute for complete connector applications.

Q: Are there voltage or current rating differences between substitute parts?

A: The 65801-010 and 65801-010LF both operate at 500V and 2A. The 487378-9 housing operates at reduced ratings of 300V and 1.5A. Applications requiring the full 500V/2A specification must use the 65801-010 or 65801-010LF.

Q: What FFC/FCB thickness does each part support?

A: The 65801-010 and 65801-010LF both support 0.33mm FFC/FCB thickness. The 487378-9 housing accommodates thinner material at 0.05-0.13mm thickness.

Q: Does RoHS compliance status affect substitution decisions?

A: The 65801-010 is RoHS non-compliant. The 65801-010LF and 487378-9 are both RoHS compliant. Applications subject to RoHS requirements must use the 65801-010LF or 487378-9.

Q: How many mating cycles are supported?

A: Both the 65801-010 and 65801-010LF support 100 mating cycles. The 487378-9 housing component does not specify mating cycle ratings.
