Amphenol ICC 65240-010LF Rectangular Connector Housing — Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 65240-010LF is a 10-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for crimp termination in free-hanging in-line applications. This Blue thermoplastic, glass-filled housing operates across -65°C to 125°C and is RoHS Compliant with MSL 1 (Unlimited). The part is Active in product status and available in bulk packaging with 10,038 pieces in stock.

Equivalent and substitute parts are identified when design flexibility, supply chain optimization, or specific application requirements necessitate alternative connector housings that maintain functional compatibility through matching electrical and mechanical parameters.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	10
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Operating Temperature Range	-65°C ~ 125°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitute parts for the 65240-010LF are qualified based on strict parameter matching across the following criteria:

Primary Matching Parameters (Mandatory for Substitution):

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 10
Pitch: 0.100" (2.54mm)
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

Secondary Considerations (Allowable Variation):

Color: May vary (Blue, Black, Green)
Insulation Material: Thermoplastic, Glass Filled; Polyphenylene, Modified; Polyester, Glass Filled; Polybutylene Terephthalate (PBT), Glass Filled; Polyamide (PA), Nylon
Operating Temperature Range: Minimum -40°C to -65°C; Maximum 85°C to 125°C
RoHS Status: RoHS Compliant or ROHS3 Compliant
REACH Status: REACH Affected, REACH Unaffected, or Vendor Undefined

All identified substitutes maintain the core electrical and mechanical interface required for 10-position, 2.54mm pitch crimp receptacle applications.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
65240-010LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	Blue	Thermoplastic, Glass Filled	-65°C ~ 125°C	RoHS Compliant	10,038
65039-027LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	1,710
0050579210	Molex	SL 70066	Black	Polyester, Glass Filled	-40°C ~ 105°C	ROHS3 Compliant	14,672

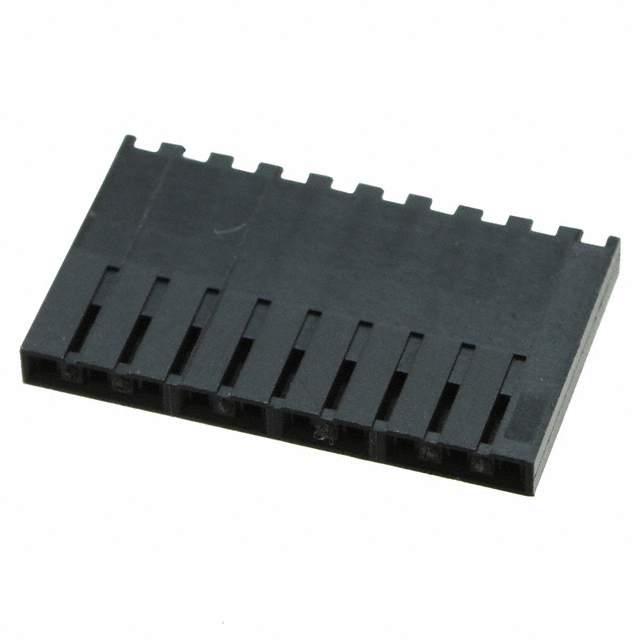

0050579310	Molex	SL 70066	Black	Polyester, Glass Filled	-40°C ~ 105°C	ROHS3 Compliant	6,112
1-281838-0	TE Connectivity AMP Connectors	HE13/HE14	Black	Polybutylene Terephthalate (PBT), Glass Filled	-55°C ~ 125°C	ROHS3 Compliant	3,769
1-925366-0	TE Connectivity AMP Connectors	AMPMODU Mod IV	Green	Polyamide (PA), Nylon	-65°C ~ 105°C	RoHS Compliant	753
1-926657-0	TE Connectivity AMP Connectors	AMPMODU	Black	Polybutylene Terephthalate (PBT), Glass Filled	-65°C ~ 105°C	ROHS3 Compliant	1,001
103648-9	TE Connectivity AMP Connectors	AMPMODU MTE	Black	Thermoplastic	-65°C ~ 105°C	ROHS3 Compliant	3,995
2-87175-2	TE Connectivity AMP Connectors	AMPMODU	Black	Polyester, Glass Filled	-65°C ~ 105°C	ROHS3 Compliant	2,192
M20-1061000	Harwin Inc.	M20	Black	Thermoplastic	-25°C ~ 85°C	ROHS3 Compliant	2,756

Engineering Selection Recommendations

Full Temperature Range Compatibility (-65°C to 125°C): Parts maintaining the complete operating temperature envelope of the 65240-010LF are 1-281838-0 (TE Connectivity, -55°C ~ 125°C minimum upper bound) and 103648-9 (TE Connectivity, -65°C ~ 105°C). The 65240-010LF itself operates to 125°C; substitutes with lower maximum ratings (-40°C to 105°C) are suitable only for applications not exceeding 105°C.

RoHS and Regulatory Compliance: All substitute parts maintain RoHS or ROHS3 compliance. The 65240-010LF is RoHS Compliant; ROHS3-compliant substitutes (0050579210, 0050579310, 1-281838-0, 1-926657-0, 103648-9, 2-87175-2, M20-1061000) represent current manufacturing standards. REACH status varies; applications requiring REACH Affected designation should prioritize 65240-010LF or 65039-027LF.

Supply and Availability: Molex SL 70066 series (0050579210, 0050579310) offer highest inventory levels (14,672 and 6,112 pieces respectively). TE Connectivity AMPMODU variants provide multiple options across temperature and material specifications. Harwin M20-1061000 is suitable only for applications with maximum operating temperature not exceeding 85°C.

Frequently Asked Questions (FAQ)

Q: Can I substitute the 65240-010LF (Blue) with a Black housing equivalent?

A: Yes. Color is not a functional parameter for electrical or mechanical compatibility. All Black housing substitutes (65039-027LF, 0050579210, 0050579310, 1-281838-0, 1-926657-0, 103648-9, 2-87175-2, M20-1061000) maintain the same 10-position, 2.54mm pitch, crimp receptacle interface. Verify application requirements do not specify color for identification or visual coding purposes.

Q: What is the temperature limitation when using Molex 0050579210 or 0050579310 as substitutes?

A: Both Molex parts operate from -40°C to 105°C, compared to the 65240-010LF range of -65°C to 125°C. These substitutes are suitable for applications with maximum operating temperature not exceeding 105°C and minimum temperature not below -40°C. Applications requiring full -65°C to 125°C coverage must use 65240-010LF, 1-281838-0, or equivalent parts with matching temperature specifications.

Q: Are all substitute parts available in bulk packaging?

A: Yes. All identified substitute parts are available in bulk packaging, consistent with the 65240-010LF packaging specification.

Q: Does insulation material affect substitutability?

A: Insulation material variation (Thermoplastic, Glass Filled; Polyphenylene, Modified; Polyester, Glass Filled; Polybutylene Terephthalate; Polyamide) does not affect electrical or mechanical interface compatibility for 10-position, 2.54mm pitch crimp receptacles. Material selection is determined by application environmental requirements (temperature, humidity, chemical exposure). Verify material compatibility with your specific application environment.

Q: Which substitute offers the widest operating temperature range?

A: The 65240-010LF itself provides -65°C to 125°C. Among substitutes, 1-281838-0 (TE Connectivity HE13/HE14 series) offers -55°C to 125°C, providing the closest match to the original part's upper temperature limit. For full -65°C minimum coverage, 1-925366-0, 1-926657-0, 103648-9, and 2-87175-2 all operate from -65°C, though with lower maximum temperatures (105°C).

Q: Is the Harwin M20-1061000 suitable for all applications?

A: The Harwin M20-1061000 operates from -25°C to 85°C, providing the most restricted temperature range among all listed parts. This substitute is suitable only for applications with maximum operating temperature not exceeding 85°C and minimum temperature not below -25°C. Applications requiring extended temperature coverage should select alternatives with broader specifications.
