TE Connectivity AMP Connectors 650706-2 Equivalent & Substitute Parts

Part Overview

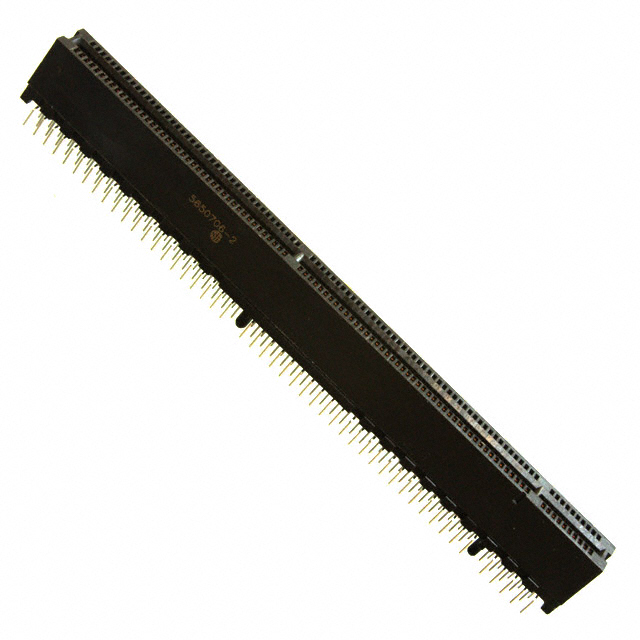

The TE Connectivity AMP Connectors 650706-2 is a 194 Position Female Card Edge Connector designed for dual edge applications with 0.050" (1.27mm) pitch spacing. This connector features gold-plated phosphor bronze contacts, through-hole solder termination with staggered configuration, and a brown thermoplastic insulation body with integrated board guide.

The 650706-2 carries an obsolete product status, making identification of active equivalent parts essential for ongoing procurement and system maintenance. Substitute parts must maintain identical electrical and mechanical specifications to ensure direct compatibility without circuit redesign or board modification.

Substiute Parts

650706-2

TE Connectivity AMP ConnectorsIn Stock: 1152650706-2 Datasheet

Current PartRFQ

5650706-2

TE Connectivity AMP ConnectorsIn Stock: 9345650706-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 650706-2 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part must maintain:

Critical Matching Parameters:

• 194 position count with dual row configuration
• 0.050" (1.27mm) pitch spacing
• 0.062" (1.57mm) card thickness tolerance
• Female gender with through-hole solder termination
• Phosphor bronze contact material with gold plating at 30.0µin thickness
• Thermoplastic insulation body with board guide feature
• Brown color specification
• MSL Level 1 rating

The 5650706-2 satisfies all substitution criteria as a direct functional equivalent. The primary distinction between these parts is product status and RoHS compliance classification, not electrical or mechanical performance.

Parameter Comparison

Engineering Selection Recommendations

The 5650706-2 is the direct substitute for the obsolete 650706-2. Both parts are manufactured by TE Connectivity AMP Connectors and share identical electrical and mechanical specifications across all functional parameters.

Selection Basis:

The 5650706-2 is recommended for new procurement and system maintenance due to its active product status. This part maintains full compatibility with existing designs utilizing the 650706-2, as all contact configurations, termination methods, and physical dimensions are equivalent.

The 5650706-2 carries RoHS Compliant certification, whereas the 650706-2 is RoHS non-compliant. This distinction reflects manufacturing date and regulatory compliance timelines rather than functional performance differences. Systems designed for the 650706-2 operate identically with the 5650706-2 without circuit modification or performance degradation.

Packaging is supplied in bulk format for the 5650706-2, supporting standard procurement workflows for active components.

Frequently Asked Questions (FAQ)

Q: Can the 5650706-2 be used as a direct replacement for the 650706-2 in existing assemblies?

A: Yes. The 5650706-2 is a direct functional equivalent with identical electrical and mechanical specifications. All contact positions, pitch spacing, card thickness tolerance, termination method, and physical dimensions match the 650706-2 exactly. No circuit redesign or board modification is required.

Q: What is the difference between the 650706-2 and 5650706-2?

A: The primary differences are product status and RoHS compliance classification. The 650706-2 is obsolete and RoHS non-compliant, while the 5650706-2 is active and RoHS Compliant. All functional specifications are identical.

Q: Are there any compatibility concerns when substituting the 5650706-2 for the 650706-2?

A: No compatibility concerns exist. Both connectors feature 194 positions in a dual row configuration with 0.050" pitch spacing, identical contact materials and finishes, and matching through-hole solder termination. Physical mounting and electrical performance are equivalent.

Q: What packaging format is available for the 5650706-2?

A: The 5650706-2 is supplied in bulk packaging, suitable for standard procurement and assembly operations.

Q: Does the RoHS Compliant status of the 5650706-2 affect its performance in existing systems?

A: No. RoHS compliance reflects material composition and manufacturing standards, not electrical or mechanical performance. The 5650706-2 operates identically to the 650706-2 in all functional applications.

Q: Are both parts suitable for through-hole PCB assembly?

A: Yes. Both the 650706-2 and 5650706-2 feature through-hole solder termination with staggered contact configuration, supporting standard PCB assembly processes.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry MSL Level 1 (Unlimited) rating, indicating no moisture sensitivity restrictions for storage or handling.
