Amphenol ICC 65043-033ELF Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

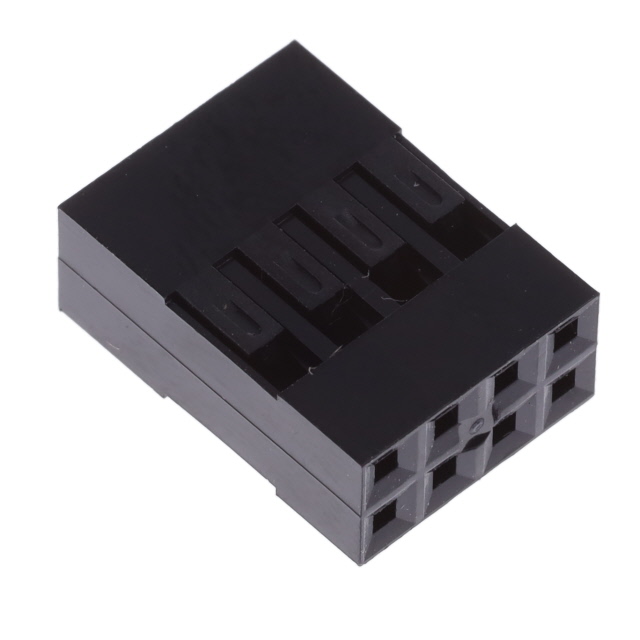

The Amphenol ICC 65043-033ELF is an 8-position rectangular connector housing designed for applications requiring reliable receptacle connections at 0.100" (2.54mm) pitch. This component is part of the Mini-PV™ and Basics+ series and maintains active product status with full RoHS compliance. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling component interchangeability in applications where the primary part is unavailable or inventory constraints exist.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Operating Temperature Range	-40°C to 105°C
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the Amphenol ICC 65043-033ELF is determined by strict alignment of the following critical parameters:

Connector Type & Contact Configuration: Receptacle with female socket contacts
Position Count & Pitch: 8 positions at 0.100" (2.54mm) pitch
Physical Layout: 2 rows with 0.100" (2.54mm) row spacing
Termination Method: Crimp contact termination
Environmental Ratings: Operating temperature range of -40°C to 105°C
Moisture Sensitivity: MSL 1 classification

The Molex 0022566087 meets all specified electrical and mechanical parameters, qualifying as a parametric equivalent. Both components function identically within the defined parameter set and are interchangeable in applications requiring 8-position, 2.54mm pitch receptacle housings with crimp termination.

Parameter Comparison

Parameter	Amphenol ICC 65043-033ELF	Molex 0022566087	Match Status
Connector Type	Receptacle	Receptacle	✓ Match
Contact Type	Female Socket	Female Socket	✓ Match
Number of Positions	8	8	✓ Match
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	✓ Match
Number of Rows	2	2	✓ Match
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	✓ Match
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	✓ Match
Contact Termination	Crimp	Crimp	✓ Match
Color	Black	Black	✓ Match
Operating Temperature	-40°C to 105°C	-40°C to 105°C	✓ Match
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	✓ Match

Engineering Selection Recommendations

Both the Amphenol ICC 65043-033ELF and Molex 0022566087 are active products with current manufacturing status. The Amphenol part carries RoHS3 compliance and is REACH Affected. The Molex substitute is ROHS3 Compliant and REACH Unaffected. Both components are classified under EAR99 for export control purposes.

Selection between these parts should be based on:

Availability: Molex 0022566087 currently maintains higher inventory (8,897 pcs) compared to Amphenol ICC 65043-033ELF (1,549 pcs)
Packaging Format: Amphenol part supplied in Bag packaging; Molex part supplied in Bulk packaging
Regulatory Status: Verify REACH compliance requirements for your specific application and end-use region
Supply Chain Requirements: Both parts are equivalent for direct substitution in applications requiring 8-position, 2.54mm pitch receptacle housings

Frequently Asked Questions (FAQ)

Q: Can the Molex 0022566087 directly replace the Amphenol ICC 65043-033ELF in existing designs?

A: Yes. Both components share identical electrical and mechanical specifications across all critical parameters: 8-position receptacle configuration, 0.100" (2.54mm) pitch, 2-row layout with 0.100" row spacing, crimp termination, and -40°C to 105°C operating range. Direct substitution is supported without design modification.

Q: What is the difference in insulation material between these parts?

A: The Amphenol ICC 65043-033ELF uses Polyphenylene Modified insulation, while the Molex 0022566087 uses Polyester Glass Filled insulation. Both materials meet the specified operating temperature range and environmental requirements. Material selection should be evaluated based on your application's chemical exposure and mechanical stress conditions.

Q: Are contacts included with these housings?

A: No. Both the Amphenol ICC 65043-033ELF and Molex 0022566087 are housings only. Contacts must be sourced separately and are not included with either part.

Q: What packaging considerations apply when selecting between these parts?

A: The Amphenol part is supplied in Bag packaging, while the Molex substitute is supplied in Bulk packaging. Verify your procurement and storage requirements to ensure compatibility with your assembly process and inventory management systems.

Q: Are there any REACH or RoHS compliance differences that affect substitution?

A: The Amphenol ICC 65043-033ELF is REACH Affected and RoHS3 Compliant. The Molex 0022566087 is REACH Unaffected and ROHS3 Compliant. Confirm your application's regulatory requirements, particularly regarding REACH substance restrictions, before finalizing component selection.
