65043-032LF Equivalent & Substitute Parts

Part Overview

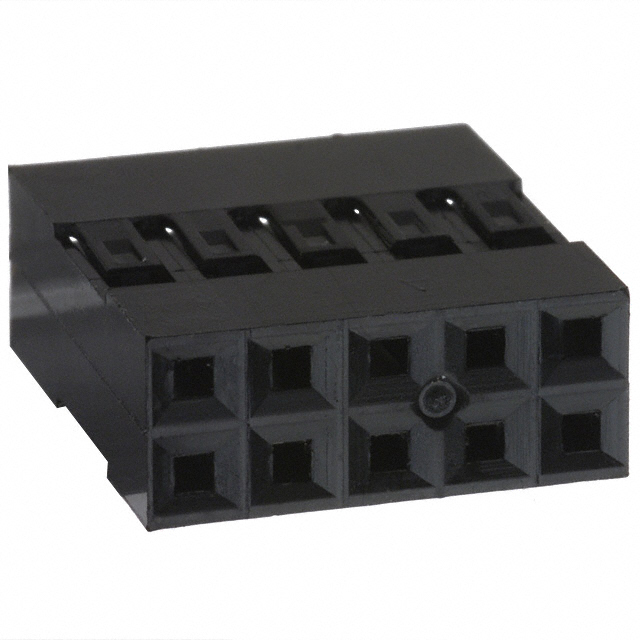

The 65043-032LF is a 10-position rectangular connector receptacle housing manufactured by Amphenol ICC (FCI) with a 0.100" (2.54mm) pitch. This component is part of the Mini-PV™ and Basics+ series and is designed for free-hanging, in-line applications requiring crimp-style female socket terminations. The part is currently active in production with RoHS compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector housing specifications.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	10
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Insulation Material	Polyphenylene, Modified
Operating Temperature Range	-40°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 65043-032LF is determined by strict equivalence across the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (10), pitch (0.100"/2.54mm), number of rows (2), row spacing (0.100"/2.54mm), mounting type (free hanging in-line), and contact termination method (crimp). All identified substitute parts maintain these core electrical and mechanical specifications. Variations in insulation material composition, color, operating temperature range, and manufacturer series do not affect functional interchangeability for housing applications where contacts are supplied separately.

Parameter Comparison

Parameter	65043-032LF (Amphenol ICC)	65239-005LF (Amphenol ICC)	0901430010 (Molex)	87456-6 (TE Connectivity)	87977-3 (TE Connectivity)
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	10	10	10	10	10
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Color	Black	Blue	Black	Black	Black
Insulation Material	Polyphenylene, Modified	Thermoplastic, Glass Filled	Polyphenylene Oxide (PPO)	Polyamide (PA), Nylon, Glass Filled	Thermoplastic
Operating Temperature Range	-40°C ~ 105°C	-65°C ~ 125°C	-55°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant
Product Status	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All identified substitute parts maintain active product status and comply with applicable RoHS regulations. The 65239-005LF offers an extended operating temperature range (-65°C ~ 125°C) compared to the primary part (-40°C ~ 105°C) and is available in higher inventory (3118 pcs). The 0901430010 from Molex (C-Grid III 90143 series) provides ROHS3 compliance and the highest inventory availability (11894 pcs). Both TE Connectivity options (87456-6 and 87977-3) from the AMPMODU Mod IV series support the extended temperature range (-65°C ~ 105°C) with substantial inventory levels (846 pcs and 4479 pcs respectively). Selection should be based on application temperature requirements, inventory availability, and preferred manufacturer qualification within the design.

Frequently Asked Questions (FAQ)

Q: Can 65239-005LF be used as a direct replacement for 65043-032LF? A: Yes. Both parts share identical electrical and mechanical specifications: 10-position receptacle housings with 0.100" pitch, 2-row configuration, and crimp termination. The color difference (blue vs. black) and insulation material variation do not affect functional interchangeability for housing applications.

Q: What is the primary difference between the Amphenol ICC and Molex substitute options? A: The 0901430010 (Molex) uses Polyphenylene Oxide (PPO) insulation material and carries ROHS3 compliance, while the 65239-005LF (Amphenol ICC) uses thermoplastic glass-filled material with standard RoHS compliance. Both maintain identical connector specifications and operating temperature ranges within their respective ratings.

Q: Are TE Connectivity parts 87456-6 and 87977-3 interchangeable with each other? A: Yes. Both TE Connectivity parts are from the AMPMODU Mod IV series and share identical electrical and mechanical parameters. The primary difference is insulation material composition (polyamide nylon glass-filled vs. thermoplastic), which does not affect housing interchangeability.

Q: Does operating temperature range affect housing substitution? A: Operating temperature range does not determine housing interchangeability. The 65043-032LF operates at -40°C ~ 105°C, while substitute parts support -55°C ~ 125°C ranges. Housing selection should align with application thermal requirements, but all parts are functionally equivalent at the specified pitch and position configuration.

Q: What inventory considerations should guide part selection? A: The 0901430010 (Molex) offers the highest inventory (11894 pcs), followed by 65239-005LF (3118 pcs) and 87977-3 (4479 pcs). The 87456-6 has the lowest availability (846 pcs). Inventory levels should be evaluated against project lead time and volume requirements.
