TE Connectivity 650404-5 Equivalent & Substitute Parts

Part Overview

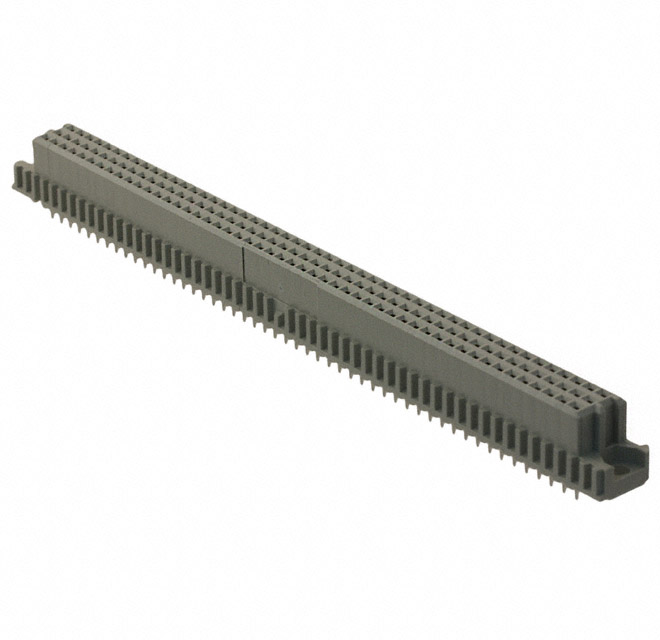

The TE Connectivity 650404-5 is a 150-position DIN receptacle connector with female sockets, gold-plated contacts, and through-hole solder termination. This backplane connector is designed for Eurocard applications requiring high-density interconnection in industrial and electronic equipment. The part is currently active in production with 784 units in stock.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across connector specifications. Alternative part numbers may be necessary due to inventory availability, compliance requirements, or manufacturing transitions while preserving functional compatibility in the target application.

Substiute Parts

650404-5

TE Connectivity AMP ConnectorsIn Stock: 842650404-5 Datasheet

Current PartRFQ

5650404-5

TE Connectivity AMP ConnectorsIn Stock: 17435650404-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 650404-5 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Connector type: Receptacle, Female Sockets
• Number of positions: 150
• Pitch: 0.100" (2.54mm)
• Number of rows: 3
• Style: C
• Contact finish: Gold
• Operating temperature range: -55°C ~ 125°C
• Flammability rating: UL94 V-0

Mechanical Compatibility Parameters:

• Mounting type: Through Hole
• Termination method: Solder
• Series: Eurocard

Environmental Compliance Parameters:

• Moisture Sensitivity Level: 1 (Unlimited)
• ECCN classification: EAR99
• HTSUS code: 8536.69.4040

The substitute part 5650404-5 maintains full equivalence across all electrical and mechanical parameters. Variations in insulation material composition and RoHS compliance status do not affect functional interchangeability in the specified application context.

Parameter Comparison

Engineering Selection Recommendations

650404-5 Selection Criteria:

• Applications requiring RoHS non-compliant components
• Designs with established REACH Affected material documentation
• Immediate availability requirements with moderate stock levels

5650404-5 Selection Criteria:

• Applications requiring RoHS Compliant components for regulatory compliance
• New designs or redesigns targeting modern environmental standards
• Higher inventory availability for volume production requirements
• Applications where REACH compliance status is critical

Both parts maintain identical electrical and mechanical specifications across all functional parameters. The primary differentiation factors are regulatory compliance status and material composition of the insulation system. Selection between these parts is determined by application compliance requirements and supply chain considerations rather than functional performance differences.

Frequently Asked Questions (FAQ)

Q: Are the 650404-5 and 5650404-5 electrically interchangeable?

A: Yes. Both parts are 150-position DIN receptacle connectors with identical electrical specifications including pitch (0.100"), contact finish (gold), operating temperature range (-55°C ~ 125°C), and flammability rating (UL94 V-0).

Q: What is the difference in insulation material between these parts?

A: The 650404-5 uses polyester glass-filled insulation, while the 5650404-5 uses polymer thermoplastic glass-filled insulation. Both materials meet the UL94 V-0 flammability requirement and maintain equivalent functional performance in the specified operating temperature range.

Q: Can I substitute 5650404-5 for 650404-5 in an existing design?

A: Substitution is mechanically and electrically valid. However, verify that your application requirements align with the RoHS Compliant status of the 5650404-5, as the original 650404-5 is RoHS non-compliant.

Q: What does RoHS Compliant status mean for component selection?

A: RoHS Compliant components meet Restriction of Hazardous Substances regulations and contain no lead, cadmium, hexavalent chromium, or other restricted substances. RoHS non-compliant components may contain these materials. Selection depends on your product's regulatory requirements and target markets.

Q: Are both parts suitable for through-hole PCB assembly?

A: Yes. Both parts feature through-hole mounting with solder termination, making them suitable for standard PCB assembly processes.

Q: What is the pitch specification and why is it important?

A: Both parts have a 0.100" (2.54mm) pitch, which defines the center-to-center spacing between contact positions. This specification must match your PCB layout and mating connector design.

Q: Can these connectors be used in high-temperature applications?

A: Yes. Both parts are rated for operating temperatures from -55°C to 125°C, suitable for industrial and harsh environment applications within this range.

Q: What does Moisture Sensitivity Level 1 mean?

A: MSL 1 (Unlimited) indicates these connectors have unlimited shelf life and require no special moisture control during storage or handling, making them suitable for standard warehouse conditions.
