TE Connectivity AMP Connectors 650281-1 Equivalent & Substitute Parts

Part Overview

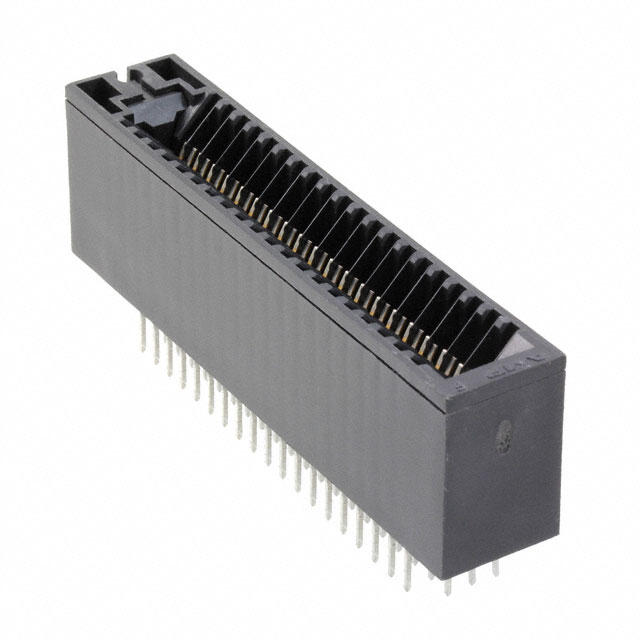

The TE Connectivity AMP Connectors 650281-1 is a 78 Position Female Card Edge Connector designed for dual edge applications with 0.125" (3.18mm) pitch spacing. This connector features press-fit termination, gold-plated copper alloy contacts, and operates across a temperature range of -65°C to 85°C. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure component availability for new production and field service applications.

Substiute Parts

650281-1

TE Connectivity AMP ConnectorsIn Stock: 1021650281-1 Datasheet

Current PartRFQ

5-650281-1

TE Connectivity AMP ConnectorsIn Stock: 11435-650281-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 650281-1 connector is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 5-650281-1 maintains identical specifications for position count, row configuration, pitch spacing, card thickness tolerance, contact material composition, contact finish specification, and operating temperature range. Both connectors are classified within the TE Connectivity AMP Connectors Linear series and employ identical press-fit termination methodology with through-hole mounting.

The primary distinction between the main part and its substitute is product status and regulatory compliance. The 650281-1 is obsolete and RoHS non-compliant, while the 5-650281-1 maintains active production status and achieves RoHS compliance. The substitute part carries the same base product number (650281) and represents the current production equivalent.

Substitution is valid when the following parameters are matched:

• 78 total positions across 2 rows
• 0.125" (3.18mm) pitch spacing
• Dual edge card edge configuration
• Card thickness range 0.054" ~ 0.072" (1.37mm ~ 1.82mm)
• Female gender
• Press-fit termination with through-hole mounting
• Copper alloy contacts with gold finish at 30.0µin thickness
• Operating temperature -65°C to 85°C
• PBT glass-filled insulation material

Parameter Comparison

Engineering Selection Recommendations

The 5-650281-1 connector is the direct equivalent substitute for the obsolete 650281-1 part. Selection of the 5-650281-1 is appropriate for all applications requiring the 650281-1 specification, with the additional benefit of active product status and RoHS compliance certification.

For new designs and production applications, the 5-650281-1 is the specified selection. This part maintains full electrical and mechanical compatibility with the original 650281-1 while providing current manufacturing support and regulatory compliance. The active product status ensures long-term component availability and supply chain continuity.

For legacy system maintenance and field service applications where the original 650281-1 is specified, the 5-650281-1 provides direct functional replacement without design modification or re-qualification requirements. All mechanical interfaces, electrical performance characteristics, and environmental operating parameters remain unchanged.

Frequently Asked Questions (FAQ)

Q: Can the 5-650281-1 be used as a direct replacement for the 650281-1 in existing designs?

A: Yes. The 5-650281-1 is electrically and mechanically identical to the 650281-1 across all specified parameters. The connector maintains the same 78-position dual-row configuration, 0.125" pitch spacing, press-fit termination, contact material composition, and operating temperature range. Direct substitution is valid without design modification.

Q: What is the primary difference between the 650281-1 and 5-650281-1?

A: The primary differences are product status and regulatory compliance. The 650281-1 is classified as obsolete and RoHS non-compliant. The 5-650281-1 maintains active production status and achieves RoHS compliance. All electrical and mechanical specifications are identical.

Q: Are there any compatibility concerns when substituting the 5-650281-1 for the 650281-1?

A: No compatibility concerns exist. Both connectors are designed for identical card edge applications with matching card thickness tolerances of 0.054" to 0.072" (1.37mm to 1.82mm). The through-hole mounting footprint and press-fit contact engagement remain unchanged.

Q: Does the 5-650281-1 support the same operating temperature range as the 650281-1?

A: Yes. Both connectors operate across the identical temperature range of -65°C to 85°C. Thermal performance and material properties are equivalent.

Q: What is the significance of RoHS compliance for the 5-650281-1?

A: RoHS compliance indicates that the 5-650281-1 meets Restriction of Hazardous Substances regulations, restricting the use of specific hazardous materials in electrical and electronic equipment. This certification is required for many commercial and industrial applications and ensures regulatory compliance in manufacturing and distribution.

Q: Are the contact specifications identical between both parts?

A: Yes. Both connectors feature copper alloy contacts with gold plating at 30.0µin (0.76µm) thickness. Contact material composition, finish specification, and electrical performance are identical.

Q: What is the Moisture Sensitivity Level for these connectors?

A: Both the 650281-1 and 5-650281-1 carry a Moisture Sensitivity Level (MSL) rating of 1, indicating unlimited shelf life without moisture control requirements.
