TE Connectivity 650090-1 Card Edge Connector Equivalent & Substitute Parts

Part Overview

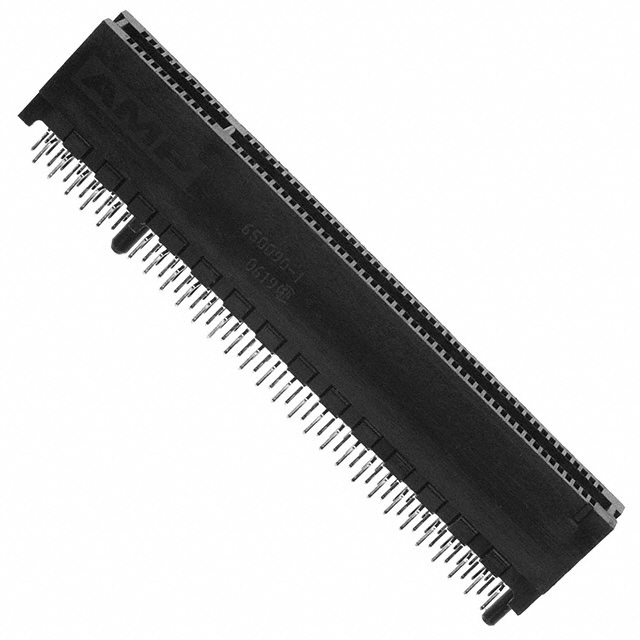

The TE Connectivity 650090-1 is a 112-position female card edge connector designed for VLB and MCA card applications. This connector features a 0.050" (1.27mm) pitch, dual-row configuration, and gold-plated phosphor bronze contacts rated for operating temperatures from -55°C to 105°C. The part is currently active in production with 782 pieces available in new original inventory. Substitute parts are identified to address specific application requirements, including RoHS compliance needs and alternative packaging configurations.

Substiute Parts

650090-1

TE Connectivity AMP ConnectorsIn Stock: 839650090-1 Datasheet

Current PartRFQ

5650090-1

TE Connectivity AMP ConnectorsIn Stock: 39355650090-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 650090-1 is determined by strict alignment of the following critical parameters:

Core Compatibility Parameters:

• Number of positions: 112
• Pitch: 0.050" (1.27mm)
• Gender: Female
• Number of rows: 2
• Card thickness: 0.062" (1.57mm)
• Contact material: Phosphor Bronze
• Contact finish: Gold
• Mounting type: Through Hole
• Termination: Solder, Staggered
• Insulation material: Thermoplastic

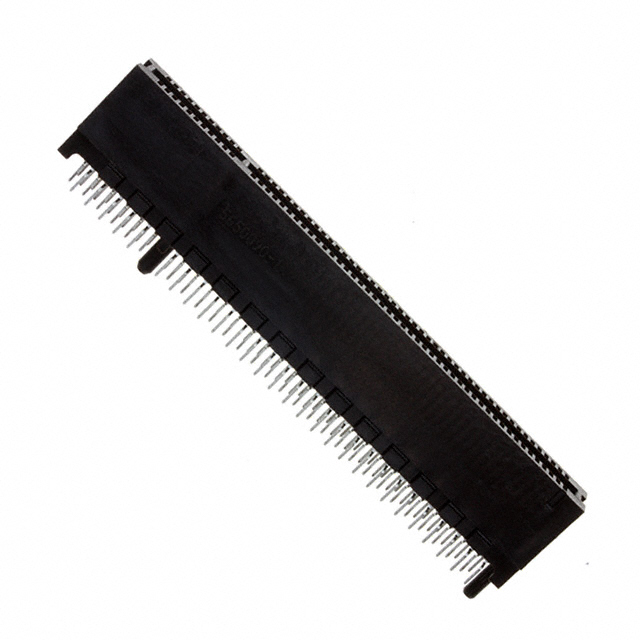

The substitute part 5650090-1 maintains all core compatibility parameters. Differences exist in card type designation (VLB/MCA versus Non Specified - Dual Edge), operating temperature maximum (105°C versus 85°C), RoHS compliance status (non-compliant versus ROHS3 compliant), and packaging configuration (standard versus bulk). These differences define the specific application contexts in which each part is appropriate.

Parameter Comparison

Engineering Selection Recommendations

650090-1 Selection Criteria: The TE Connectivity 650090-1 is appropriate for applications requiring VLB and MCA card compatibility with extended operating temperature range to 105°C. This part is suitable for legacy systems and applications where RoHS compliance is not a regulatory requirement. Standard packaging is suitable for lower-volume procurement and component-level inventory management.

5650090-1 Selection Criteria: The TE Connectivity 5650090-1 is appropriate for applications requiring ROHS3 compliance and bulk packaging configurations. This part operates within the -55°C to 85°C temperature range, which is suitable for standard industrial and commercial applications. Bulk packaging is appropriate for high-volume manufacturing environments and supply chain consolidation. The non-specified dual edge card type designation indicates broader compatibility with dual-edge card configurations beyond the original VLB/MCA specification.

Compliance Considerations: Selection between these parts is primarily driven by RoHS compliance mandates. The 5650090-1 meets ROHS3 requirements, while the 650090-1 does not. Operating temperature range differences (20°C maximum temperature differential) must be evaluated against specific application thermal requirements.

Frequently Asked Questions (FAQ)

Q: Can the 5650090-1 directly replace the 650090-1 in all applications?

A: Direct replacement is possible only when the application operating temperature does not exceed 85°C and RoHS3 compliance is either required or acceptable. The 650090-1 supports temperatures to 105°C, providing a 20°C higher maximum rating. Applications operating above 85°C require the 650090-1.

Q: What is the significance of the card type difference between VLB/MCA and Non Specified - Dual Edge?

A: The 650090-1 is specifically qualified for VLB (VESA Local Bus) and MCA (Micro Channel Architecture) card standards. The 5650090-1 is designated for non-specified dual edge configurations, indicating broader compatibility with dual-edge card types. Card type selection depends on the specific edge card standard used in the target application.

Q: Are there electrical performance differences between these parts?

A: No electrical performance differences exist. Both parts share identical contact material (phosphor bronze), contact finish (gold, 30.0µin), pitch (0.050"), position count (112), and row configuration (2 rows). Electrical characteristics are equivalent.

Q: How does packaging affect component selection?

A: The 650090-1 is supplied in standard packaging, suitable for component-level procurement and lower-volume applications. The 5650090-1 is supplied in bulk packaging, appropriate for high-volume manufacturing environments where bulk quantities reduce per-unit cost and streamline supply chain logistics.

Q: What is the impact of the operating temperature range difference?

A: The 650090-1 operates from -55°C to 105°C, while the 5650090-1 operates from -55°C to 85°C. Applications requiring operation above 85°C must use the 650090-1. Applications operating within the -55°C to 85°C range can use either part, with selection driven by RoHS compliance requirements.

Q: Is RoHS compliance a mandatory consideration for substitution?

A: RoHS compliance is mandatory only when regulatory requirements or customer specifications explicitly require it. The 5650090-1 is ROHS3 compliant, while the 650090-1 is not. Applications subject to RoHS regulations must use the 5650090-1. Applications without RoHS mandates can use either part based on other selection criteria.
