TE Connectivity 644460-6 MTA-156 Rectangular Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 644460-6 is a 6-position rectangular receptacle connector from the MTA-156 series, designed for IDC (Insulation Displacement Contact) termination with 18 AWG discrete or ribbon cable. This connector features gold-plated female socket contacts, a polarizing key, and closed-end design for secure mating. The part is classified as obsolete, necessitating identification of active equivalent components that maintain identical electrical and mechanical specifications for continued system support and new design implementations.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Number of Positions	6
Pitch	0.156" (3.96mm)
Contact Type	Female Socket
Wire Gauge	18 AWG
Cable Termination Method	IDC
Contact Finish	Gold
Mounting Type	Free Hanging (In-Line)
Series	MTA-156
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

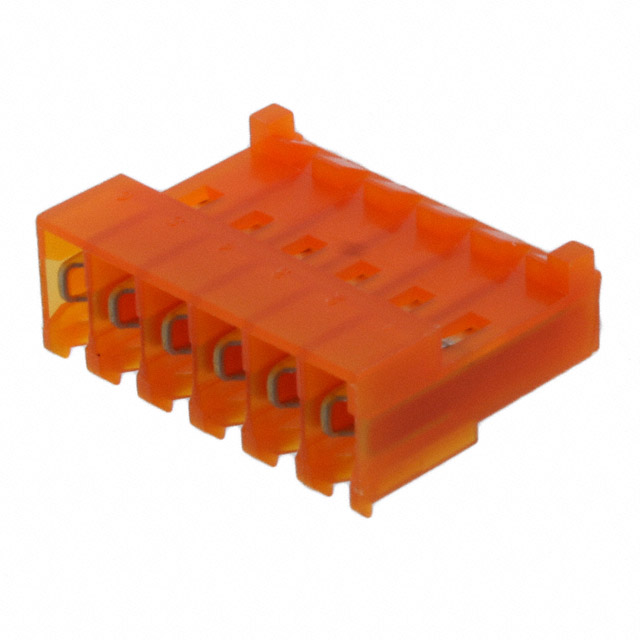

Substitution of the TE Connectivity 644460-6 is determined by strict equivalence across the following critical parameters: connector type (receptacle), number of positions (6), pitch specification (0.156"), contact type (female socket), wire gauge (18 AWG), cable termination method (IDC), contact finish (gold), mounting configuration (free hanging in-line), and series designation (MTA-156). The substitute part 3-644460-6 maintains complete electrical and mechanical compatibility with the original component across all specified parameters. The primary distinction between these parts is product status and packaging configuration, with the substitute part classified as active and available in bulk packaging, whereas the original part is obsolete.

Parameter Comparison

Parameter	644460-6 (Original)	3-644460-6 (Substitute)
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Series	MTA-156	MTA-156
Connector Type	Receptacle	Receptacle
Number of Positions	6	6
Pitch	0.156" (3.96mm)	0.156" (3.96mm)
Contact Type	Female Socket	Female Socket
Wire Gauge	18 AWG	18 AWG
Cable Termination	IDC	IDC
Contact Finish	Gold	Gold
Contact Finish Thickness	30.0µin (0.76µm)	30.0µin (0.76µm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Fastening Type	Locking Ramp	Locking Ramp
Features	Closed End, Polarizing Key	Closed End, Polarizing Key
Color	Orange	Orange
Product Status	Obsolete	Active
RoHS Status	ROHS3 Compliant	ROHS3 Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)
REACH Status	REACH Unaffected	REACH Unaffected
ECCN	EAR99	EAR99

Engineering Selection Recommendations

The substitute part 3-644460-6 is the direct equivalent for the obsolete TE Connectivity 644460-6. Both components are manufactured by TE Connectivity and share identical electrical and mechanical specifications across all critical parameters. The substitute part maintains active product status, ensuring continued availability and supply chain support. Both components satisfy ROHS3 compliance requirements and carry identical regulatory classifications (REACH Unaffected, ECCN EAR99). The substitute part is available in bulk packaging with higher inventory levels (980 pieces) compared to the original part (935 pieces). Selection of the substitute part 3-644460-6 is appropriate for all applications requiring the 644460-6 specification, with no functional or performance trade-offs.

Frequently Asked Questions (FAQ)

Q: Can the substitute part 3-644460-6 be used in place of the original 644460-6 without modification?

A: Yes. The substitute part maintains identical specifications across all electrical and mechanical parameters, including connector type, position count, pitch, contact type, wire gauge, termination method, contact finish, and mounting configuration. Direct substitution is supported without circuit or assembly modifications.

Q: What is the primary reason for substituting the 644460-6?

A: The original part 644460-6 is classified as obsolete. The substitute part 3-644460-6 is active and maintains full availability, ensuring continued supply for new designs and legacy system support.

Q: Are there compliance or regulatory differences between the two parts?

A: No. Both parts carry identical compliance certifications: ROHS3 Compliant, REACH Unaffected, and ECCN EAR99 classification. No regulatory trade-offs exist between the original and substitute components.

Q: What is the difference in packaging between these parts?

A: The original part 644460-6 is supplied in standard packaging, while the substitute part 3-644460-6 is supplied in bulk packaging. Both contain the same connector component with identical specifications.

Q: Are the contact finish specifications identical?

A: Yes. Both parts feature gold contact finish with 30.0µin (0.76µm) thickness, ensuring equivalent electrical performance and mating characteristics.

Q: Can these connectors accommodate both discrete and ribbon cable?

A: Yes. Both the original and substitute parts support discrete or ribbon cable termination via IDC (Insulation Displacement Contact) method at 18 AWG wire gauge.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry MSL rating 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or assembly processes.
