TE Connectivity 644043-5 Rectangular Connector Equivalent & Substitute Parts

Part Overview

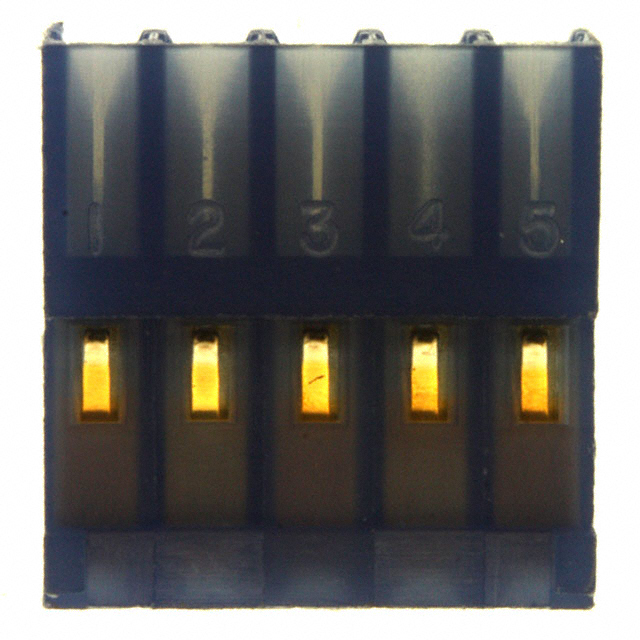

The TE Connectivity 644043-5 is a 5-position rectangular receptacle connector from the MTA-100 series, designed for IDC (Insulation Displacement Contact) termination with 26 AWG wire. This connector features gold-plated female socket contacts, a closed-end design, and supports both discrete and ribbon cable configurations.

The 644043-5 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and field service requirements for systems utilizing this connector type.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Number of Positions	5
Pitch	0.100" (2.54mm)
Contact Type	Female Socket
Cable Termination Method	IDC
Wire Gauge	26 AWG
Contact Finish	Gold
Mounting Type	Free Hanging (In-Line), Right Angle
Series	MTA-100

Substitute Part Grouping Explanation

Substitution of the 644043-5 is determined by strict equivalence across the following critical parameters:

Connector Type and Position Count: Both main and substitute parts must be 5-position receptacle connectors
Pitch and Contact Spacing: 0.100" (2.54mm) pitch ensures mechanical and electrical compatibility
Contact Configuration: Female socket contacts with gold finish and 30.0µin (0.76µm) thickness
Termination Method: IDC cable termination for 26 AWG wire compatibility
Series Designation: MTA-100 series classification
Mounting and Fastening: Free hanging in-line and right-angle mounting with locking ramp fastening

The substitute part 3-644043-5 maintains identical electrical and mechanical specifications to the main part, with the primary distinction being product status and packaging configuration.

Parameter Comparison

Parameter	644043-5 (Main Part)	3-644043-5 (Substitute)	Compatibility
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Identical
Series	MTA-100	MTA-100	Identical
Connector Type	Receptacle	Receptacle	Identical
Number of Positions	5	5	Identical
Contact Type	Female Socket	Female Socket	Identical
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	Identical
Number of Rows	1	1	Identical
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle	Identical
Fastening Type	Locking Ramp	Locking Ramp	Identical
Cable Termination	IDC	IDC	Identical
Wire Type	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Identical
Wire Gauge	26 AWG	26 AWG	Identical
Features	Closed End	Closed End	Identical
Contact Finish	Gold	Gold	Identical
Contact Finish Thickness	30.0µin (0.76µm)	30.0µin (0.76µm)	Identical
Color	Blue	Blue	Identical
Product Status	Obsolete	Active	Substitute is active
RoHS Status	Not applicable	RoHS Compliant	Substitute offers compliance
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Identical
ECCN	EAR99	EAR99	Identical
HTSUS	8536.69.8000	8536.69.8000	Identical

Engineering Selection Recommendations

The 3-644043-5 is a direct functional equivalent to the 644043-5 across all electrical and mechanical parameters. Selection between these parts should be based on the following criteria:

For New Designs and Production: The 3-644043-5 is the recommended selection. This part carries active product status, ensuring long-term availability and supply chain stability. The part is RoHS compliant, meeting current environmental and regulatory requirements for commercial and industrial applications.

For Legacy System Support: The 644043-5 remains functionally compatible with existing designs. However, the obsolete status indicates limited future availability. Transition planning to the 3-644043-5 is advisable for ongoing production and field service applications.

Compliance Considerations: The 3-644043-5 provides explicit RoHS compliance certification, whereas the 644043-5 status is not applicable. For applications subject to RoHS directives or customer compliance requirements, the 3-644043-5 is the appropriate selection.

Both parts share identical electrical characteristics, mechanical dimensions, contact specifications, and termination methods, ensuring direct interchangeability in circuit designs and PCB layouts.

Frequently Asked Questions (FAQ)

Q: Can the 3-644043-5 be used as a direct replacement for the 644043-5 in existing assemblies?

A: Yes. The 3-644043-5 is electrically and mechanically identical to the 644043-5. All contact specifications, pitch, termination method, and mounting configurations are equivalent. Direct substitution is supported without design modification.

Q: What is the primary difference between these two part numbers?

A: The 644043-5 is obsolete, while the 3-644043-5 is active. The 3-644043-5 also carries RoHS compliance certification. All other specifications are identical.

Q: Are there packaging differences between 644043-5 and 3-644043-5?

A: The 644043-5 packaging is not specified in the available data. The 3-644043-5 is supplied in bulk packaging. For specific packaging requirements, consult the respective datasheets or contact the manufacturer.

Q: Does the wire gauge compatibility remain the same for both parts?

A: Yes. Both parts are rated for 26 AWG wire and support IDC termination with discrete or ribbon cable configurations.

Q: Are there any compliance or certification differences?

A: The 3-644043-5 is RoHS compliant. The 644043-5 RoHS status is not applicable. Both parts share identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications.

Q: What is the contact finish specification for both parts?

A: Both parts feature gold-plated contacts with a finish thickness of 30.0µin (0.76µm), ensuring equivalent electrical performance and corrosion resistance.

Q: Can these connectors be used with both discrete and ribbon cable?

A: Yes. Both the 644043-5 and 3-644043-5 support discrete or ribbon cable configurations through IDC termination.
