TE Connectivity 643230-2 Rectangular Connector Equivalent & Substitute Parts

Part Overview

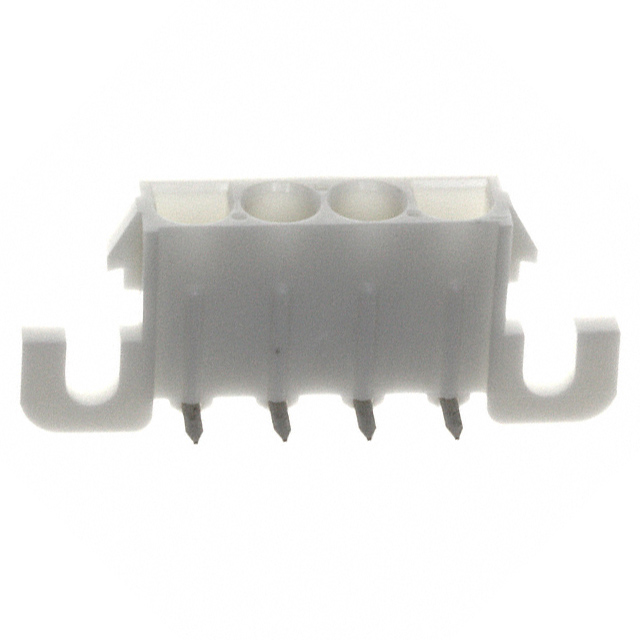

The TE Connectivity 643230-2 is a 4-position header connector from the Universal MATE-N-LOK series, designed for board-to-cable/wire applications. This through-hole, right-angle connector features gold-plated mating contacts and tin-lead plated posts for solder termination. The connector is currently active in production with 1102 pieces in stock inventory.

Substitute parts are identified to address specific application requirements, including packaging preferences, compliance certifications, and contact finish specifications that may differ from the original part while maintaining functional and mechanical compatibility.

Substiute Parts

643230-2

TE Connectivity AMP ConnectorsIn Stock: 1193643230-2 Datasheet

Current PartRFQ

3-643230-0

TE Connectivity AMP ConnectorsIn Stock: 11713-643230-0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between TE Connectivity 643230-2 and 3-643230-0 is based on strict equivalence of the following critical parameters:

Functional Equivalence Parameters:

• Connector type, contact type, and style (Header, Female Socket, Board to Cable/Wire)
• Number of positions and pitch (4 positions, 0.250" mating pitch)
• Mounting configuration (Through Hole, Right Angle)
• Termination method (Solder)
• Insulation material and flammability rating (Polyamide/Nylon, UL94 V-0)
• Contact material and mating finish (Phosphor Bronze, Gold plated)

Differentiating Parameters:

• Packaging format (standard vs. bulk)
• Contact finish on posts (Tin-Lead vs. Tin)
• RoHS compliance status
• REACH compliance documentation

Both parts share the same base product number (643230) and series designation, confirming their functional interchangeability within the MATE-N-LOK connector family.

Parameter Comparison

Engineering Selection Recommendations

643230-2 Selection Criteria:

• Applications requiring tin-lead post finish for legacy solder processes
• Non-RoHS compliant system designs
• Standard packaging requirements
• REACH-affected supply chain documentation

3-643230-0 Selection Criteria:

• RoHS-compliant applications and regulatory environments
• Tin post finish compatibility with lead-free solder processes
• Bulk packaging for high-volume production runs
• Applications where RoHS compliance is mandatory

Both parts maintain identical mechanical and electrical interface specifications, ensuring direct substitution capability within the MATE-N-LOK connector ecosystem. Selection between these parts is determined by compliance requirements, post-finish specifications, and packaging format rather than functional performance differences.

Frequently Asked Questions (FAQ)

Q: Are 643230-2 and 3-643230-0 mechanically interchangeable?

A: Yes. Both connectors share identical mating pitch (0.250"), mounting configuration (through-hole right-angle), insulation dimensions (0.360" height), and contact geometry (circular, phosphor bronze). They are mechanically interchangeable in all board-level applications.

Q: What is the difference in post finish between these parts?

A: The 643230-2 features tin-lead plated posts, while the 3-643230-0 features tin-plated posts. This distinction affects solder compatibility and thermal cycling performance in different manufacturing processes.

Q: Can I use 3-643230-0 in a design originally specified for 643230-2?

A: Substitution is possible when RoHS compliance is required or when lead-free solder processes are employed. The tin post finish of 3-643230-0 is compatible with lead-free solder systems, whereas the tin-lead finish of 643230-2 is optimized for traditional solder processes.

Q: What does the packaging difference mean?

A: 643230-2 is supplied in standard packaging, while 3-643230-0 is supplied in bulk packaging. This affects order quantities, handling, and storage but does not impact connector performance or compatibility.

Q: Are both parts currently in production?

A: Yes. Both parts maintain active product status with TE Connectivity and have current inventory availability (1102 and 1106 pieces respectively).

Q: Which part should I specify for new designs?

A: Selection depends on regulatory requirements and manufacturing process specifications. For RoHS-compliant designs or lead-free solder environments, specify 3-643230-0. For legacy systems or tin-lead solder processes, 643230-2 remains appropriate.

Q: Do these connectors have voltage or current ratings?

A: Voltage and current ratings are not specified in the provided technical documentation for either part. Consult the complete datasheet for electrical performance specifications.
