TE Connectivity 641963-2 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

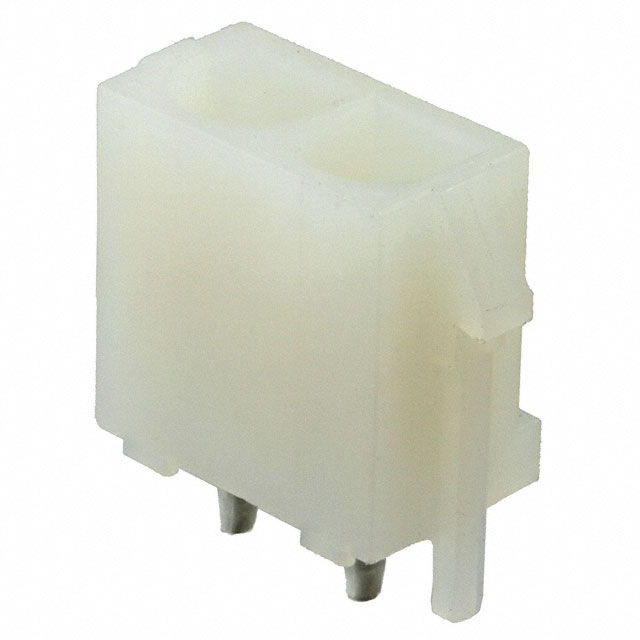

The TE Connectivity 641963-2 is a vertical rectangular connector header from the Universal MATE-N-LOK series. This through-hole mounted connector features 2 positions with 0.250" (6.35mm) pitch spacing and is designed for board-to-cable/wire applications. The connector is actively manufactured and maintains full inventory availability. Substitute parts are identified to address packaging variations, compliance requirements, and supply chain flexibility while maintaining electrical and mechanical compatibility.

Substiute Parts

641963-2

TE Connectivity AMP ConnectorsIn Stock: 707641963-2 Datasheet

Current PartRFQ

641963-3

TE Connectivity AMP ConnectorsIn Stock: 4481641963-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between TE Connectivity 641963-2 and 641963-3 is based on electrical and mechanical parameter equivalence within the Universal MATE-N-LOK series. Both parts maintain identical specifications across the following critical parameters:

Electrical Compatibility Parameters:

• Contact type: Male Pin
• Number of positions: 2
• Pitch spacing: 0.250" (6.35mm)
• Current rating: 12A
• Voltage rating: 600VAC
• Operating temperature range: -40°C ~ 105°C

Mechanical Compatibility Parameters:

• Connector type: Header
• Mounting type: Through Hole
• Termination method: Solder
• Shrouding: Shrouded - 4 Wall
• Insulation material: Polyamide (PA), Nylon
• Contact material: Phosphor Bronze
• Fastening type: Locking Ramp

Packaging Variation: The primary difference between these parts is packaging configuration and RoHS compliance status. The 641963-2 is supplied in standard packaging with RoHS non-compliant status, while the 641963-3 is supplied in bulk packaging with ROHS3 compliance. Contact finish on the post differs between tin-lead (641963-2) and tin (641963-3).

Parameter Comparison

Engineering Selection Recommendations

641963-2 Selection Criteria: The 641963-2 is appropriate for applications where RoHS non-compliance is acceptable or where legacy system compatibility with tin-lead post finishes is required. This part maintains active product status and is available in standard packaging configurations.

641963-3 Selection Criteria: The 641963-3 is the preferred selection for new designs and applications requiring ROHS3 compliance. The tin post finish on the 641963-3 provides environmental compliance benefits while maintaining functional equivalence to the tin-lead finish of the 641963-2. Bulk packaging of the 641963-3 supports high-volume production requirements. Both parts share identical electrical performance and mechanical interface specifications.

Compliance Consideration: Selection between these parts should account for regulatory requirements in the target application region. The 641963-3 ROHS3 compliance status aligns with current environmental regulations in the European Union and equivalent jurisdictions.

Frequently Asked Questions (FAQ)

Q: Are the 641963-2 and 641963-3 mechanically interchangeable?

A: Yes. Both connectors feature identical mounting type (through hole), shrouding configuration (shrouded - 4 wall), position count (2), and pitch spacing (0.250"). They mount identically on printed circuit boards and accept the same mating connectors.

Q: What is the functional difference between tin-lead and tin post finishes?

A: Both finishes provide solder termination capability. The tin finish on the 641963-3 eliminates lead content, meeting ROHS3 environmental compliance requirements. Functionally, both finishes support the same current rating (12A) and voltage rating (600VAC) specifications.

Q: Can I substitute 641963-3 for 641963-2 in existing designs?

A: Yes. The 641963-3 is electrically and mechanically equivalent to the 641963-2. Substitution is appropriate for new production runs and design revisions. The ROHS3 compliance of the 641963-3 provides additional regulatory alignment for current manufacturing standards.

Q: What does bulk packaging mean for the 641963-3?

A: Bulk packaging indicates the 641963-3 is supplied in larger quantity configurations without individual component packaging. This packaging method reduces material waste and is standard for high-volume manufacturing operations.

Q: Are both parts rated for the same electrical specifications?

A: Yes. Both the 641963-2 and 641963-3 maintain identical current rating (12A), voltage rating (600VAC), and operating temperature range (-40°C ~ 105°C). Electrical performance is equivalent across all specified parameters.

Q: Which part should I specify for new product designs?

A: The 641963-3 is recommended for new designs due to ROHS3 compliance status and current manufacturing alignment. Both parts are active products with full inventory availability.
