TE Connectivity 641238-5 Equivalent & Substitute Parts

Part Overview

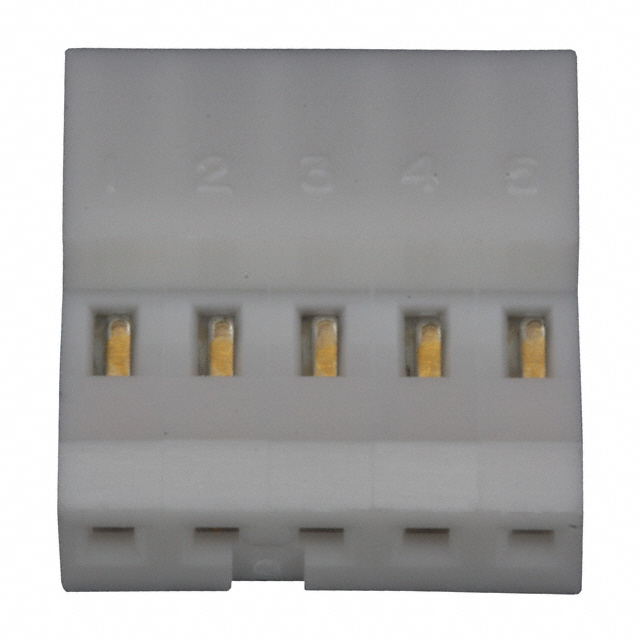

The TE Connectivity 641238-5 is a 5-position rectangular receptacle connector from the MTA-100 series, designed for IDC (Insulation Displacement Contact) termination with 24 AWG wire. This connector features gold-plated female socket contacts, a closed-end design, and supports both discrete and ribbon cable configurations. The part is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing procurement and system integration.

Substiute Parts

641238-5

TE Connectivity AMP ConnectorsIn Stock: 1096641238-5 Datasheet

Current PartRFQ

3-641238-5

TE Connectivity AMP ConnectorsIn Stock: 25253-641238-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 641238-5 is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Connector type: Receptacle
• Contact type: Female socket
• Number of positions: 5
• Pitch: 0.100" (2.54mm)
• Number of rows: 1
• Cable termination method: IDC
• Wire gauge compatibility: 24 AWG
• Contact finish: Gold with 30.0µin thickness

Mechanical Parameters:

• Mounting configuration: Free hanging (in-line), right angle
• Fastening mechanism: Locking ramp
• Design feature: Closed end
• Housing color: White

Compliance Parameters:

• RoHS3 compliance
• Moisture sensitivity level: 1 (unlimited)

Parts meeting all these criteria are classified as direct functional equivalents and may be substituted without circuit or mechanical redesign.

Parameter Comparison

Engineering Selection Recommendations

The 3-641238-5 is a direct functional equivalent to the obsolete 641238-5. Both parts are manufactured by TE Connectivity within the MTA-100 series and share identical electrical, mechanical, and compliance specifications. The primary distinction is product status: the 641238-5 is obsolete, while the 3-641238-5 maintains active production status.

Selection of the 3-641238-5 is supported by:

• Complete parameter equivalence across all electrical specifications
• Identical mechanical configuration and mounting characteristics
• Matching contact finish and material specifications
• Equivalent RoHS3 compliance and moisture sensitivity rating
• Active product status ensuring ongoing availability and supply chain continuity

The substitute part is suitable for direct replacement in applications currently utilizing the 641238-5 without modification to circuit design, PCB layout, or mechanical assembly procedures.

Frequently Asked Questions (FAQ)

Q: Can the 3-641238-5 be used as a direct replacement for the 641238-5?

A: Yes. The 3-641238-5 is electrically and mechanically equivalent to the 641238-5. All critical parameters including connector type, contact configuration, pitch, termination method, and compliance specifications are identical. Direct substitution is supported without design modification.

Q: What is the difference between 641238-5 and 3-641238-5?

A: The primary difference is product status. The 641238-5 is classified as obsolete, while the 3-641238-5 is an active product. The part numbers differ by a prefix designation (3-), but all functional and electrical specifications remain identical. The packaging differs: 641238-5 is listed with unspecified packaging, while 3-641238-5 is supplied in bulk packaging.

Q: Are there any compatibility concerns when substituting these parts?

A: No compatibility concerns exist. Both parts conform to the MTA-100 series standard with identical pitch (0.100"), contact type (female socket), and IDC termination for 24 AWG wire. Mating connectors and cable assemblies designed for the 641238-5 are fully compatible with the 3-641238-5.

Q: Does the 3-641238-5 meet the same compliance requirements?

A: Yes. The 3-641238-5 maintains ROHS3 compliance and carries the same moisture sensitivity level (MSL 1 - Unlimited) as the original 641238-5. Both parts meet equivalent environmental and regulatory standards.

Q: Why should I select the 3-641238-5 over the obsolete 641238-5?

A: The 3-641238-5 is the recommended selection because it maintains active production status, ensuring reliable long-term availability and supply chain continuity. The obsolete 641238-5 may face procurement challenges and limited stock availability. Functionally, both parts are equivalent.

Q: What wire gauge does this connector support?

A: Both the 641238-5 and 3-641238-5 are rated for 24 AWG wire. The IDC termination method accommodates both discrete and ribbon cable configurations at this gauge.

Q: Is the contact finish specification identical between these parts?

A: Yes. Both parts feature gold-plated contacts with a finish thickness of 30.0µin (0.76µm), providing equivalent electrical performance and corrosion resistance.
