TE Connectivity 641237-4 Equivalent & Substitute Parts

Part Overview

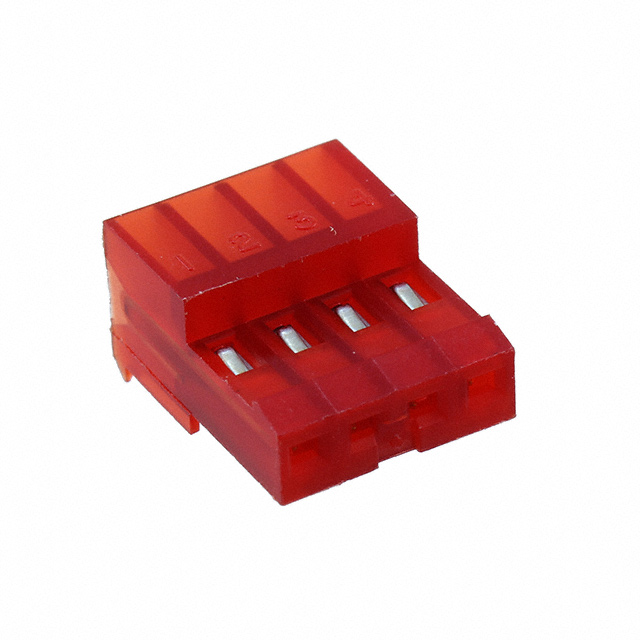

The TE Connectivity 641237-4 is a 4-position rectangular receptacle connector from the MTA-100 series, designed for IDC (Insulation Displacement Contact) termination with 22 AWG wire. This connector features gold-plated female socket contacts, a closed-end design, and is rated for discrete or ribbon cable applications. The part is classified as obsolete, making identification of equivalent and substitute components essential for ongoing system support and procurement planning.

Key Parameters

Parameter	Value
Manufacturer Part Number	641237-4
Manufacturer	TE Connectivity AMP Connectors
Series	MTA-100
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	4
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line), Right Angle
Cable Termination	IDC
Wire Gauge	22 AWG
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Features	Closed End
Color	Red
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the 641237-4 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

Series designation (MTA-100)
Connector type (Receptacle)
Contact type (Female Socket)
Number of positions (4)
Pitch specification (0.100" / 2.54mm)
Number of rows (1)
Mounting configuration (Free Hanging, In-Line, Right Angle)
Cable termination method (IDC)
Wire gauge compatibility (22 AWG)
Contact finish material (Gold)
Contact finish thickness (30.0µin)
Closed-end design
RoHS3 compliance

The substitute part 3-641237-4 maintains identical electrical and mechanical specifications across all parameters listed above. The primary distinction between the main part and its substitute is product status and packaging configuration.

Parameter Comparison

Parameter	641237-4 (Main Part)	3-641237-4 (Substitute)	Match Status
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Identical
Series	MTA-100	MTA-100	Identical
Connector Type	Receptacle	Receptacle	Identical
Contact Type	Female Socket	Female Socket	Identical
Number of Positions	4	4	Identical
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	Identical
Number of Rows	1	1	Identical
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle	Identical
Cable Termination	IDC	IDC	Identical
Wire Gauge	22 AWG	22 AWG	Identical
Contact Finish	Gold	Gold	Identical
Contact Finish Thickness	30.0µin (0.76µm)	30.0µin (0.76µm)	Identical
Features	Closed End	Closed End	Identical
Color	Red	Red	Identical
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Identical
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Identical
Product Status	Obsolete	Active	Different
Packaging	Not specified	Bulk	Different

Engineering Selection Recommendations

The part 3-641237-4 is a direct functional equivalent to 641237-4 across all electrical and mechanical specifications. The substitute part maintains identical contact configuration, termination method, wire gauge compatibility, and finish specifications.

Product Status Consideration: The main part 641237-4 carries an obsolete designation, while the substitute 3-641237-4 is classified as active. For new designs, ongoing production, or long-term system support, the active substitute part is the appropriate selection.

Compliance Status: Both parts maintain ROHS3 compliance and MSL 1 (Unlimited) moisture sensitivity rating, ensuring compatibility with current regulatory requirements and environmental specifications.

Packaging Difference: The substitute part is supplied in bulk packaging, which may affect procurement quantities and storage requirements compared to the original part specification.

Frequently Asked Questions (FAQ)

Q: Can 3-641237-4 be used as a direct replacement for 641237-4 in existing assemblies?

A: Yes. The 3-641237-4 maintains identical electrical and mechanical specifications across all critical parameters including connector type, contact configuration, pitch, termination method, wire gauge, and contact finish. The parts are functionally interchangeable.

Q: What is the primary reason for substitution?

A: The original part 641237-4 is classified as obsolete. The substitute 3-641237-4 is an active product from the same manufacturer and series, providing continued availability and supply chain continuity.

Q: Are there any differences in contact performance between these parts?

A: No. Both parts feature identical gold contact finish at 30.0µin (0.76µm) thickness, female socket contact type, and IDC termination design. Contact performance specifications are equivalent.

Q: Does the packaging difference affect connector functionality?

A: No. The packaging difference (bulk for the substitute versus unspecified for the main part) affects procurement and storage logistics only. The connector itself maintains identical form, fit, and function.

Q: Are both parts RoHS compliant?

A: Yes. Both 641237-4 and 3-641237-4 are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity rating.

Q: What wire gauges are compatible with these connectors?

A: Both parts are specified for 22 AWG wire. The IDC termination method accommodates discrete or ribbon cable configurations at this gauge.

Q: Is the connector suitable for both in-line and right-angle mounting?

A: Yes. Both parts support free-hanging mounting in both in-line and right-angle orientations.
