TE Connectivity 641217-2 Equivalent & Substitute Parts

Part Overview

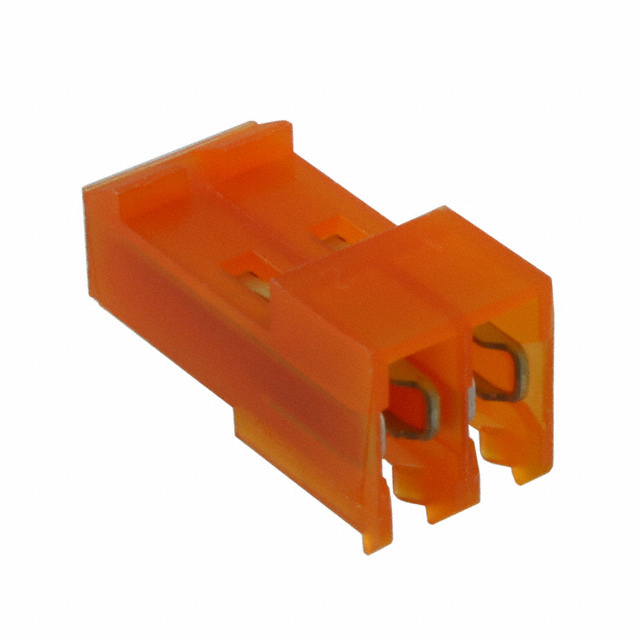

The TE Connectivity 641217-2 is a 2-position rectangular receptacle connector from the MTA-156 series, designed for IDC (Insulation Displacement Contact) termination with 18 AWG wire. This connector features gold-plated female socket contacts, a closed-end design, and free-hanging in-line mounting with locking ramp fastening. The part is classified as obsolete, making identification of active equivalent components essential for procurement and design continuity.

Key Parameters

Parameter	Specification
Manufacturer Part Number	641217-2
Manufacturer	TE Connectivity AMP Connectors
Series	MTA-156
Connector Type	Receptacle
Number of Positions	2
Pitch	0.156" (3.96mm)
Contact Type	Female Socket
Cable Termination	IDC
Wire Gauge	18 AWG
Contact Finish	Gold
Mounting Type	Free Hanging (In-Line)
Fastening Type	Locking Ramp
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the 641217-2 is determined by strict equivalence across the following critical parameters:

Series Compatibility: MTA-156 series designation
Connector Configuration: 2-position receptacle with female socket contacts
Contact Pitch: 0.156" (3.96mm) spacing
Termination Method: IDC cable termination
Wire Gauge Compatibility: 18 AWG
Contact Material: Gold plating with 30.0µin (0.76µm) thickness
Mechanical Interface: Free-hanging in-line mounting with locking ramp fastening
Electrical Characteristics: Closed-end design

The substitute part 3-641217-2 maintains identical electrical and mechanical specifications while offering active product status and improved availability.

Parameter Comparison

Parameter	641217-2 (Main Part)	3-641217-2 (Substitute)	Match Status
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Identical
Series	MTA-156	MTA-156	Identical
Connector Type	Receptacle	Receptacle	Identical
Number of Positions	2	2	Identical
Contact Type	Female Socket	Female Socket	Identical
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	Identical
Cable Termination	IDC	IDC	Identical
Wire Gauge	18 AWG	18 AWG	Identical
Contact Finish	Gold	Gold	Identical
Contact Finish Thickness	30.0µin (0.76µm)	30.0µin (0.76µm)	Identical
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Identical
Fastening Type	Locking Ramp	Locking Ramp	Identical
Features	Closed End	Closed End	Identical
Color	Orange	Orange	Identical
Product Status	Obsolete	Active	Substitute is Active
RoHS Status	ROHS3 Compliant	RoHS Compliant	Both Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	Identical
ECCN	EAR99	EAR99	Identical
HTSUS Code	8536.69.8000	8536.69.8000	Identical

Engineering Selection Recommendations

The 3-641217-2 is a direct functional equivalent to the 641217-2 with no electrical or mechanical compromises. Selection criteria are based on the following factors:

Product Status: The 641217-2 is classified as obsolete, while the 3-641217-2 maintains active product status. Active status ensures continued manufacturing support, quality assurance, and supply chain reliability.

Regulatory Compliance: Both parts satisfy RoHS requirements. The 641217-2 carries ROHS3 compliance, while the 3-641217-2 carries standard RoHS compliance. Both designations confirm lead-free construction and hazardous substance restrictions compliance.

Moisture Sensitivity: Both parts carry MSL rating 1 (Unlimited), indicating no moisture sensitivity constraints during storage or handling.

Export Classification: Both parts are classified as EAR99, confirming identical export control status.

Packaging Consideration: The 641217-2 is supplied in unspecified packaging, while the 3-641217-2 is supplied in bulk packaging. Bulk packaging is standard for active production components and supports higher-volume procurement requirements.

For new designs or component replacement in active systems, the 3-641217-2 is the appropriate selection due to active product status and assured long-term availability.

Frequently Asked Questions (FAQ)

Q: Are the 641217-2 and 3-641217-2 electrically interchangeable?

A: Yes. Both connectors are 2-position receptacles with identical contact pitch (0.156"), contact type (female socket), wire gauge rating (18 AWG), and gold contact finish specifications. They function identically in IDC termination applications.

Q: What is the difference between these two part numbers?

A: The primary difference is product status. The 641217-2 is obsolete, while the 3-641217-2 is active. The 3-641217-2 also specifies bulk packaging, which is standard for active production components. All electrical and mechanical specifications are identical.

Q: Can I use the 3-641217-2 as a direct replacement for the 641217-2?

A: Yes. The 3-641217-2 is a direct substitute with identical connector specifications, contact configuration, and termination method. No design modifications are required.

Q: Are both parts RoHS compliant?

A: Yes. The 641217-2 is ROHS3 compliant, and the 3-641217-2 is RoHS compliant. Both designations confirm compliance with lead-free and hazardous substance restrictions.

Q: What wire gauge does this connector support?

A: Both connectors are rated for 18 AWG wire with IDC termination. The contact pitch of 0.156" and IDC design are optimized for this wire gauge.

Q: Does moisture sensitivity affect storage or handling?

A: No. Both parts carry MSL rating 1 (Unlimited), indicating no moisture sensitivity. Standard storage conditions are appropriate.

Q: What is the pitch specification for this connector?

A: The pitch is 0.156" (3.96mm), which defines the center-to-center spacing between the two contact positions. This specification is identical for both the main part and substitute.

Q: Is the locking ramp fastening mechanism the same on both parts?

A: Yes. Both connectors use locking ramp fastening for mechanical retention. The fastening mechanism and interface are identical.
