TE Connectivity AMP Connectors 641126-6 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 641126-6 is a rectangular connector header designed for through-hole mounting applications. This connector features a vertical orientation with 6 positions at 0.100" (2.54mm) pitch, suitable for board-to-cable/wire connections in general-purpose applications. The part is classified as obsolete, necessitating identification of active equivalent components to maintain design continuity and ensure ongoing component availability for production and repair applications.

Substiute Parts

641126-6

TE Connectivity AMP ConnectorsIn Stock: 780641126-6 Datasheet

Current PartRFQ

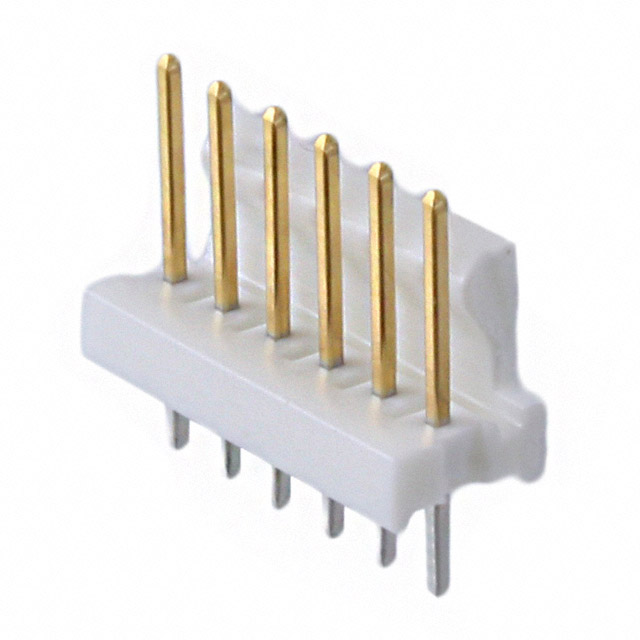

3-641126-6

TE Connectivity AMP ConnectorsIn Stock: 142153-641126-6 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 641126-6 is based on strict electrical and mechanical parameter equivalence within the MTA-100 series. The substitute part 3-641126-6 maintains identical specifications across all critical functional parameters: connector type, number of positions, pitch, mounting method, contact configuration, voltage rating, temperature range, and material compliance certifications.

The substitution logic is determined by the following key parameters:

• Connector Type: Header (male pin contact)
• Number of Positions: 6
• Pitch - Mating: 0.100" (2.54mm)
• Mounting Type: Through Hole
• Shrouding: Shrouded - 1 Wall
• Contact Finish - Mating: Gold
• Contact Finish - Post: Tin
• Voltage Rating: 250VAC
• Operating Temperature Range: -55°C ~ 105°C
• Material Flammability Rating: UL94 V-0
• RoHS Compliance Status

The substitute part differs only in product status (active versus obsolete) and packaging configuration, with no functional or electrical performance differences.

Parameter Comparison

Engineering Selection Recommendations

The part 3-641126-6 is the direct equivalent substitute for the obsolete 641126-6. Both components are manufactured by TE Connectivity AMP Connectors within the MTA-100 series and maintain complete electrical and mechanical compatibility.

Selection of 3-641126-6 is supported by the following factors:

• Active product status ensures ongoing availability and manufacturing support
• Identical electrical specifications including voltage rating (250VAC) and operating temperature range (-55°C ~ 105°C)
• Equivalent mechanical configuration with identical contact geometry, pitch, and mounting method
• Maintained compliance certifications: UL94 V-0 flammability rating and RoHS compliance
• Same base product number (641126) confirming design lineage and functional equivalence
• Bulk packaging configuration suitable for production and inventory management

The substitute part requires no design modifications and functions as a direct replacement in all applications where the original 641126-6 was specified.

Frequently Asked Questions (FAQ)

Q: Can 3-641126-6 be used as a direct replacement for 641126-6 in existing designs?

A: Yes. The 3-641126-6 is a direct functional equivalent with identical electrical and mechanical specifications. No design modifications are required for substitution.

Q: What is the primary difference between 641126-6 and 3-641126-6?

A: The primary differences are product status and packaging. The 641126-6 is obsolete, while 3-641126-6 is active. The substitute is supplied in bulk packaging. All functional and electrical parameters are identical.

Q: Are the contact configurations identical between these parts?

A: Yes. Both parts feature identical contact geometry, material composition (copper alloy), finish specifications (gold mating surface, tin post finish), and contact length dimensions.

Q: Do both parts meet the same compliance standards?

A: Yes. Both parts are RoHS compliant, carry UL94 V-0 flammability rating, and share identical ECCN and HTSUS classifications.

Q: What is the operating temperature range for these connectors?

A: Both parts operate across the temperature range of -55°C to 105°C, suitable for general-purpose applications across industrial and commercial environments.

Q: Are there any moisture sensitivity considerations?

A: Both parts carry Moisture Sensitivity Level (MSL) 1, indicating unlimited shelf life with no special moisture control requirements during storage or handling.

Q: Can these connectors be used interchangeably in mating applications?

A: Yes. Both parts feature identical 0.100" (2.54mm) pitch, 6-position configuration, and shrouded design, ensuring full mechanical and electrical interchangeability with mating connectors designed for the MTA-100 series.
