TE Connectivity 640927-2 Quick Connect Female Crimp Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 640927-2 is a 0.110" (2.79mm) Quick Connect Female crimp connector designed for 14-16 AWG wire applications. This terminal features non-mating end insulation and is part of the Faston and PIDG series connector family. The component is classified as an Active product with full RoHS3 compliance and MSL Level 1 rating. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when packaging requirements differ.

Key Parameters

Parameter	Specification
Tab Width	0.110" (2.79mm)
Tab Thickness	0.016" (0.41mm)
Tab Length	0.250" (6.35mm)
Wire Gauge	14-16 AWG
Gender	Female
Termination Type	Crimp
Insulation Type	Non-Mating End Insulated
Overall Length	0.800" (20.32mm)
Insulation Diameter	0.170" (4.32mm)
Contact Material	Brass
Contact Finish	Tin
Mounting Type	Free Hanging (In-Line)

Substitute Part Grouping Explanation

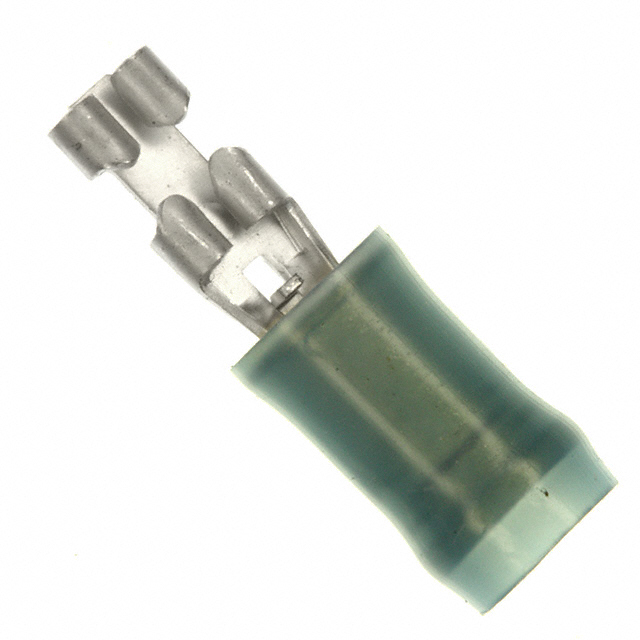

The substitute part 640927-1 is electrically and mechanically equivalent to the main part 640927-2. Both components share identical electrical specifications including tab dimensions (0.110" width, 0.016" thickness, 0.250" length), wire gauge rating (14-16 AWG), contact material composition (brass with tin finish), and insulation characteristics. The primary distinction between these parts is packaging configuration: 640927-2 is supplied in standard packaging, while 640927-1 is supplied in bulk packaging. Both parts maintain the same terminal type classification, gender designation, and termination method. Substitution is valid when packaging requirements permit bulk supply and inventory availability aligns with application needs.

Parameter Comparison

Parameter	640927-2 (Main Part)	640927-1 (Substitute)	Match Status
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Identical
Category	Terminals	Terminals	Identical
Description	CONN QC RCPT 14-16AWG 0.110	CONN QC RCPT 14-16AWG 0.110	Identical
Series	Faston, PIDG	Faston, PIDG	Identical
Product Status	Active	Active	Identical
Terminal Type	Standard	Standard	Identical
Gender	Female	Female	Identical
Tab Width	0.110" (2.79mm)	0.110" (2.79mm)	Identical
Tab Thickness	0.016" (0.41mm)	0.016" (0.41mm)	Identical
Tab Length	0.250" (6.35mm)	0.250" (6.35mm)	Identical
Length - Overall	0.800" (20.32mm)	0.800" (20.32mm)	Identical
Termination	Crimp	Crimp	Identical
Wire Gauge	14-16 AWG	14-16 AWG	Identical
Insulation	Non-Mating End Insulated	Non-Mating End Insulated	Identical
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Identical
Color	Blue	Blue	Identical
Contact Material	Brass	Brass	Identical
Contact Finish	Tin	Tin	Identical
Insulation Diameter	0.170" (4.32mm)	0.170" (4.32mm)	Identical
Base Product Number	640927	640927	Identical
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Identical
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Identical
ECCN	EAR99	EAR99	Identical
HTSUS	8536.90.4000	8536.90.4000	Identical
Packaging	Standard	Bulk	Different

Engineering Selection Recommendations

Both 640927-2 and 640927-1 are Active status products with full RoHS3 compliance and identical electrical and mechanical specifications. Selection between these parts is determined by packaging requirements and inventory availability rather than technical performance criteria. The 640927-2 is supplied in standard packaging configuration, while 640927-1 is supplied in bulk packaging. Both parts carry MSL Level 1 rating, indicating unlimited shelf life under standard storage conditions. Both maintain EAR99 export classification and are subject to identical regulatory frameworks. Component selection should be based on procurement quantity requirements and packaging compatibility with assembly processes.

Frequently Asked Questions (FAQ)

Q: Are 640927-2 and 640927-1 electrically interchangeable?

A: Yes. Both parts are electrically identical with matching tab dimensions (0.110" width), wire gauge ratings (14-16 AWG), contact materials (brass with tin finish), and electrical performance characteristics.

Q: What is the difference between these two part numbers?

A: The primary difference is packaging configuration. Part 640927-2 uses standard packaging, while part 640927-1 uses bulk packaging. All electrical and mechanical specifications are identical.

Q: Can I use 640927-1 in place of 640927-2 in my assembly?

A: Yes, provided your assembly process and inventory management systems accommodate bulk packaging. The terminal itself is mechanically and electrically equivalent.

Q: Are both parts RoHS compliant?

A: Yes. Both 640927-2 and 640927-1 are ROHS3 compliant and carry identical environmental certifications.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry MSL Level 1 rating, which indicates unlimited shelf life under standard storage conditions with no special moisture control requirements.

Q: Do these parts require any special handling or storage?

A: No special handling is required. Both parts carry MSL Level 1 rating, allowing standard warehouse storage without desiccant or controlled humidity environments.

Q: Can I mix inventory between 640927-2 and 640927-1 in production?

A: Yes. Since the terminals are electrically and mechanically identical, they can be used interchangeably in the same application. Packaging differences do not affect terminal performance or compatibility.
