TE Connectivity 640913-2 Quick Connect Female Crimp Connector Equivalent & Substitute Parts

Part Overview

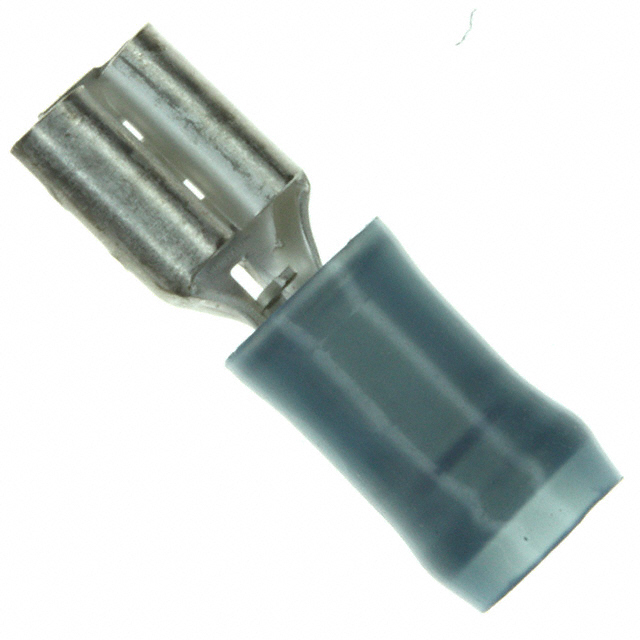

The TE Connectivity 640913-2 is a 0.205" (5.21mm) Quick Connect Female Crimp Connector designed for 14-16 AWG wire applications. This terminal features non-mating end insulation and is part of the Faston and PIDG series connector family. The component is supplied in Cut Tape (CT) packaging and maintains Active product status with ROHS3 compliance. Substitute parts are identified when packaging format changes, inventory requirements differ, or alternative sourcing becomes necessary while maintaining identical electrical and mechanical specifications.

Substiute Parts

640913-2

TE Connectivity AMP ConnectorsIn Stock: 1269640913-2 Datasheet

Current PartRFQ

640913-1

TE Connectivity AMP ConnectorsIn Stock: 3919640913-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between TE Connectivity 640913-2 and 640913-1 is valid based on identical electrical and mechanical parameters. Both parts share the same base product number (640913) and maintain equivalent specifications across all critical dimensions and performance characteristics. The primary distinction between these parts is packaging format: 640913-2 is supplied in Cut Tape (CT) packaging, while 640913-1 is supplied in Bulk packaging. Both terminals are functionally interchangeable for applications requiring 0.205" Quick Connect Female Crimp Connectors rated for 14-16 AWG wire with non-mating end insulation. Substitution is determined by the following key parameters:

• Tab Width: 0.205" (5.21mm)
• Tab Thickness: 0.020" (0.51mm)
• Wire Gauge Rating: 14-16 AWG
• Gender: Female
• Termination: Crimp
• Insulation Configuration: Non-Mating End Insulated
• Contact Material and Finish: Brass with Tin plating

Parameter Comparison

Engineering Selection Recommendations

Both TE Connectivity 640913-2 and 640913-1 are Active products with ROHS3 compliance and MSL Level 1 rating, indicating full regulatory compliance and unlimited moisture sensitivity tolerance. Selection between these parts is determined by packaging requirements and inventory availability rather than electrical or mechanical performance differences.

The 640913-2 (Cut Tape packaging) is suitable for applications requiring controlled component dispensing, automated assembly processes, or smaller quantity requirements. Current inventory shows 1169 pieces available.

The 640913-1 (Bulk packaging) is suitable for high-volume manufacturing operations, manual assembly processes, or applications where packaging format does not impact assembly workflow. Current inventory shows 3909 pieces available.

Both parts are functionally equivalent for all electrical and mechanical applications. Selection should be based on assembly process requirements and packaging compatibility with existing production equipment.

Frequently Asked Questions (FAQ)

Q: Are TE Connectivity 640913-2 and 640913-1 electrically interchangeable?

A: Yes. Both parts are electrically and mechanically identical. They share the same base product number (640913) and maintain identical specifications for tab width (0.205"), tab thickness (0.020"), wire gauge rating (14-16 AWG), contact material (Brass with Tin finish), and all other electrical parameters.

Q: What is the only difference between 640913-2 and 640913-1?

A: The packaging format is the only difference. The 640913-2 is supplied in Cut Tape (CT) packaging, while the 640913-1 is supplied in Bulk packaging. All component specifications are identical.

Q: Can I use 640913-1 (Bulk) in place of 640913-2 (Cut Tape) in my assembly process?

A: Compatibility depends on your assembly equipment and process requirements. If your equipment is configured for Cut Tape packaging, the Bulk format may require process modification. If your equipment can accommodate Bulk packaging or if manual assembly is used, substitution is feasible from a component specification standpoint.

Q: Are both parts ROHS3 compliant?

A: Yes. Both 640913-2 and 640913-1 are ROHS3 compliant with MSL Level 1 rating, indicating unlimited moisture sensitivity tolerance and full regulatory compliance.

Q: What wire gauges are supported by these connectors?

A: Both parts support 14-16 AWG wire gauges. The crimp termination is designed for this specific wire gauge range.

Q: What is the tab width specification for these Quick Connect connectors?

A: The tab width is 0.205" (5.21mm) for both 640913-2 and 640913-1. This dimension is critical for mating compatibility with corresponding male connectors.

Q: Are these connectors suitable for high-volume production?

A: Both parts are suitable for high-volume production. The 640913-1 (Bulk packaging) with 3909 pieces in stock is optimized for high-volume applications. The 640913-2 (Cut Tape packaging) with 1169 pieces in stock is suitable for automated assembly processes.
