TE Connectivity 640583-2 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

The TE Connectivity 640583-2 is a shrouded rectangular connector header designed for through-hole, right-angle board-to-cable/wire applications. This 6-position connector operates within the Universal MATE-N-LOK series and features a 0.250" (6.35mm) pitch with solder termination and locking ramp fastening. The part maintains an active product status and is suitable for general-purpose applications requiring reliable electrical connections in temperature ranges from -40°C to 105°C. Identifying equivalent substitute parts is necessary to address inventory availability, packaging requirements, and compliance specifications while maintaining electrical and mechanical compatibility.

Substiute Parts

640583-2

TE Connectivity AMP ConnectorsIn Stock: 725640583-2 Datasheet

Current PartRFQ

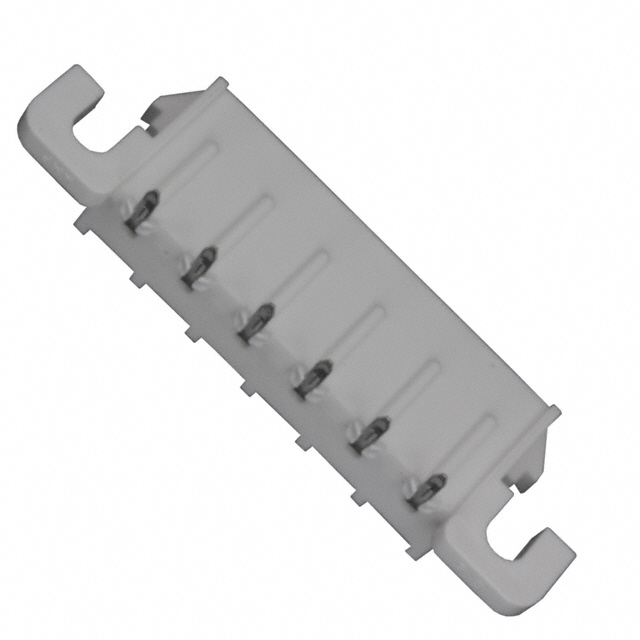

640583-3

TE Connectivity AMP ConnectorsIn Stock: 2471640583-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between the TE Connectivity 640583-2 and 640583-3 is based on electrical and mechanical parameter equivalence within the Universal MATE-N-LOK series. Both parts share identical specifications across all critical connector characteristics: 6-position configuration, 0.250" (6.35mm) mating pitch, through-hole right-angle mounting, shrouded 4-wall design, solder termination, and locking ramp fastening. Electrical ratings remain constant at 12A current capacity and 600VAC voltage rating. Thermal performance, contact materials (phosphor bronze), contact finishes (gold mating surface, tin post), and insulation properties (polyamide nylon, white color) are identical between both parts.

The primary distinction between these parts is packaging format and RoHS compliance status. The 640583-2 is supplied in standard packaging with RoHS non-compliant status, while the 640583-3 is supplied in bulk packaging with RoHS compliant status. Both parts maintain active product status and identical mechanical and electrical performance characteristics that determine functional interchangeability.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 640583-3 serves as a direct functional equivalent to the 640583-2 for applications requiring identical electrical and mechanical performance. Both parts maintain active product status and deliver equivalent connector functionality across all specified parameters.

Selection between these parts should be based on compliance and packaging requirements. The 640583-3 is the appropriate choice for applications subject to RoHS compliance mandates, as it carries RoHS compliant certification. The 640583-2 remains suitable for applications without RoHS compliance requirements. Packaging format differs between the two parts: the 640583-2 is supplied in standard packaging, while the 640583-3 is supplied in bulk packaging. Bulk packaging may be advantageous for high-volume production environments or applications requiring large quantity procurement.

Both parts carry identical UL94 V-0 flammability ratings, moisture sensitivity level 1 (unlimited), and export classification (EAR99), ensuring equivalent performance in thermal, environmental, and regulatory contexts.

Frequently Asked Questions (FAQ)

Q: Are the 640583-2 and 640583-3 electrically interchangeable?

A: Yes. Both parts share identical electrical specifications including 12A current rating, 600VAC voltage rating, and operating temperature range of -40°C to 105°C. They are electrically interchangeable in all applications.

Q: Are the 640583-2 and 640583-3 mechanically interchangeable?

A: Yes. Both parts feature identical mechanical specifications: 6-position configuration, 0.250" (6.35mm) mating pitch, through-hole right-angle mounting, shrouded 4-wall design, 0.160" (4.06mm) post length, and 0.360" (9.14mm) insulation height. They are mechanically interchangeable.

Q: What is the difference between the 640583-2 and 640583-3?

A: The primary differences are packaging format and RoHS compliance status. The 640583-2 is supplied in standard packaging and is RoHS non-compliant. The 640583-3 is supplied in bulk packaging and is RoHS compliant. All electrical and mechanical specifications are identical.

Q: Which part should I select for RoHS-compliant applications?

A: The 640583-3 is RoHS compliant and is the appropriate selection for applications subject to RoHS compliance requirements. The 640583-2 is RoHS non-compliant and should not be used in applications requiring RoHS compliance.

Q: Does packaging format affect connector performance?

A: No. Packaging format does not affect connector electrical or mechanical performance. The difference between standard and bulk packaging is organizational and logistical. Both packaging formats contain identical connector components.

Q: Are both parts currently available?

A: Yes. Both parts maintain active product status. The 640583-2 has 628 pieces in stock, and the 640583-3 has 2443 pieces in stock.

Q: Can I use the 640583-3 as a direct replacement for the 640583-2 in existing designs?

A: Yes. The 640583-3 is a direct functional equivalent and can be used as a replacement in existing designs without modification. All connector specifications remain identical.

Q: What contact materials are used in both parts?

A: Both parts use phosphor bronze contact material with gold plating (30.0µin thickness) on the mating surface and tin plating on the post. Contact material and finish specifications are identical.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry moisture sensitivity level 1 (unlimited), indicating no moisture sensitivity restrictions for storage or handling.
