3M 63-SN Terminal Butt Splice Equivalent & Substitute Parts

Part Overview

The 3M 63-SN is an active-status terminal butt splice connector designed for inline wire splicing applications. This fully insulated crimp terminal accommodates 10-12 AWG wire gauges and features individual openings for dual wire entries. The component is RoHS Compliant and carries Moisture Sensitivity Level 1 (Unlimited), indicating broad environmental compatibility. Substitute parts are identified to provide alternative sourcing options when primary inventory is unavailable or when procurement requirements necessitate equivalent components meeting identical electrical and mechanical specifications.

Substiute Parts

63-SN

3MIn Stock: 102663-SN Datasheet

Current PartRFQ

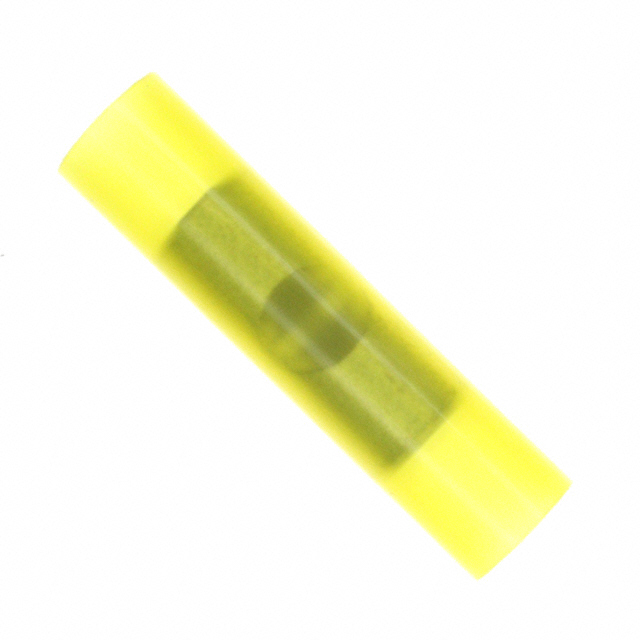

BSN10-L

Panduit CorpIn Stock: 1092BSN10-L Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 63-SN is determined by strict equivalence across the following critical parameters:

• Terminal Type: Butt Splice, Inline, Individual Openings
• Wire Gauge: 10-12 AWG
• Number of Wire Entries: 2
• Termination Method: Crimp
• Insulation Classification: Fully Insulated
• Color: Yellow

The identified substitute part, Panduit Corp BSN10-L, matches all mandatory electrical and mechanical parameters. Both components are active-status products with RoHS compliance certifications, ensuring regulatory alignment for current procurement and assembly operations.

Parameter Comparison

Engineering Selection Recommendations

Both the 3M 63-SN and Panduit BSN10-L are active-status components with current regulatory compliance. The 3M 63-SN carries RoHS Compliant certification, while the Panduit BSN10-L carries ROHS3 Compliant certification, indicating enhanced compliance scope. Both components maintain MSL ratings compatible with standard storage and handling protocols. Selection between these parts should be based on availability, packaging requirements (Panduit BSN10-L supplied in Bulk packaging), and procurement lead times. No technical performance differentiation exists between these equivalent terminals.

Frequently Asked Questions (FAQ)

Q: Can the Panduit BSN10-L directly replace the 3M 63-SN in existing assemblies?

A: Yes. Both terminals are functionally equivalent across all critical parameters: terminal type, wire gauge (10-12 AWG), wire entry configuration (2 entries), crimp termination method, and full insulation. Direct substitution is permissible without design modification.

Q: What determines compatibility between these butt splice terminals?

A: Compatibility is established through matching terminal type (Butt Splice, Inline, Individual Openings), wire gauge specification (10-12 AWG), number of wire entries (2), termination method (Crimp), and insulation classification (Fully Insulated). All parameters must align for substitution eligibility.

Q: Are there differences in RoHS compliance between these parts?

A: The 3M 63-SN carries RoHS Compliant certification, while the Panduit BSN10-L carries ROHS3 Compliant certification. ROHS3 represents an extended compliance framework. Both certifications satisfy current regulatory requirements for electronic component procurement.

Q: Does packaging format affect terminal performance or compatibility?

A: Packaging format (Bulk for Panduit BSN10-L versus unspecified for 3M 63-SN) does not affect electrical or mechanical performance. Packaging selection should be based on assembly workflow requirements and inventory management protocols.

Q: What is the significance of the MSL rating for these terminals?

A: Both components carry MSL 1 (Unlimited) or Not Applicable ratings, indicating minimal moisture sensitivity. These terminals do not require specialized moisture-controlled storage or handling procedures during standard warehouse and assembly operations.
