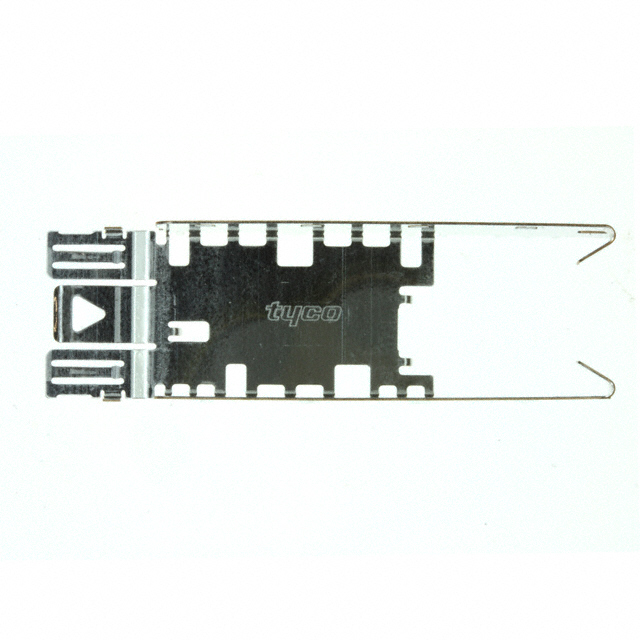

TE Connectivity AMP Connectors 6367034-1 SFP Cage Lower Section Connector

Part Overview

The TE Connectivity AMP Connectors 6367034-1 is a Position SFP Cage Lower Section Connector designed for solder through-hole applications. This component functions as the lower cage assembly for SFP (Small Form-factor Pluggable) connector systems, providing EMI shielding in pluggable connector applications.

The 6367034-1 carries an Obsolete product status. Identification of equivalent and substitute parts is necessary to support ongoing system maintenance, repair, and production requirements where original inventory becomes depleted or unavailable.

Substiute Parts

6367034-1

TE Connectivity AMP ConnectorsIn Stock: 24756367034-1 Datasheet

Current PartRFQ

2227303-3

TE Connectivity AMP ConnectorsIn Stock: 97742227303-3 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 6367034-1 is based on the following critical parameters that must align between the main part and substitute candidates:

Primary Substitution Criteria:

• Connector Type: SFP
• Mounting Type: Through Hole (solder termination)
• Termination Method: Solder
• Features: EMI Shielded
• Regulatory Compliance: ROHS3 Compliant, REACH Unaffected, EAR99 classification

The substitute part 2227303-3 satisfies these core electrical and mechanical requirements. While the 2227303-3 features a Right Angle mounting orientation compared to the vertical orientation of the 6367034-1, both components maintain identical termination methodology, connector type classification, and EMI shielding characteristics. The Right Angle variant accommodates different PCB layout configurations while preserving functional compatibility within SFP cage connector systems.

Parameter Comparison

Engineering Selection Recommendations

For Direct Substitution:

The 2227303-3 serves as the active production equivalent to the obsolete 6367034-1. Both components share identical regulatory compliance profiles (ROHS3 Compliant, EAR99 classification) and maintain equivalent moisture sensitivity ratings. The 2227303-3 is currently in active production status with substantial inventory availability (9,677 pieces), ensuring supply chain continuity.

Orientation Consideration:

The primary design difference between these parts is the mounting orientation. The 6367034-1 utilizes vertical through-hole mounting, while the 2227303-3 employs right-angle through-hole mounting. This distinction affects PCB layout and connector positioning but does not alter electrical performance or functional compatibility within SFP cage connector assemblies.

Compliance Status:

Both parts maintain ROHS3 compliance and EAR99 export classification. The 2227303-3 carries a Vendor Undefined REACH status compared to the REACH Unaffected designation of the 6367034-1. This difference does not preclude substitution but should be evaluated within specific regulatory frameworks applicable to the end application.

Frequently Asked Questions (FAQ)

Q: Can the 2227303-3 directly replace the 6367034-1 in existing designs?

A: The 2227303-3 provides functional equivalence for SFP cage connector applications. The primary design difference is mounting orientation: the 6367034-1 is vertical through-hole, while the 2227303-3 is right-angle through-hole. PCB layout modifications may be required to accommodate the orientation change.

Q: What are the key electrical parameters that remain constant between these parts?

A: Both components maintain identical connector type (SFP), termination method (solder), EMI shielding characteristics, and regulatory compliance (ROHS3, EAR99). These parameters ensure functional compatibility within SFP cage connector systems.

Q: Why is the 6367034-1 listed as Obsolete?

A: The 6367034-1 has reached end-of-life status in TE Connectivity's product portfolio. The 2227303-3 represents the active production alternative, offering equivalent functionality with enhanced design flexibility through right-angle mounting configuration.

Q: Are there packaging differences between these parts?

A: The 6367034-1 packaging information is not specified in available documentation. The 2227303-3 is supplied in Tray packaging. Packaging format should be confirmed with the supplier for procurement and handling requirements.

Q: What is the inventory status for these parts?

A: The 6367034-1 maintains 2,400 pieces of new original stock. The 2227303-3 has 9,677 pieces available, providing superior supply availability for ongoing production and maintenance applications.

Q: Do both parts meet the same moisture sensitivity requirements?

A: Yes. Both the 6367034-1 and 2227303-3 carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or processing.
